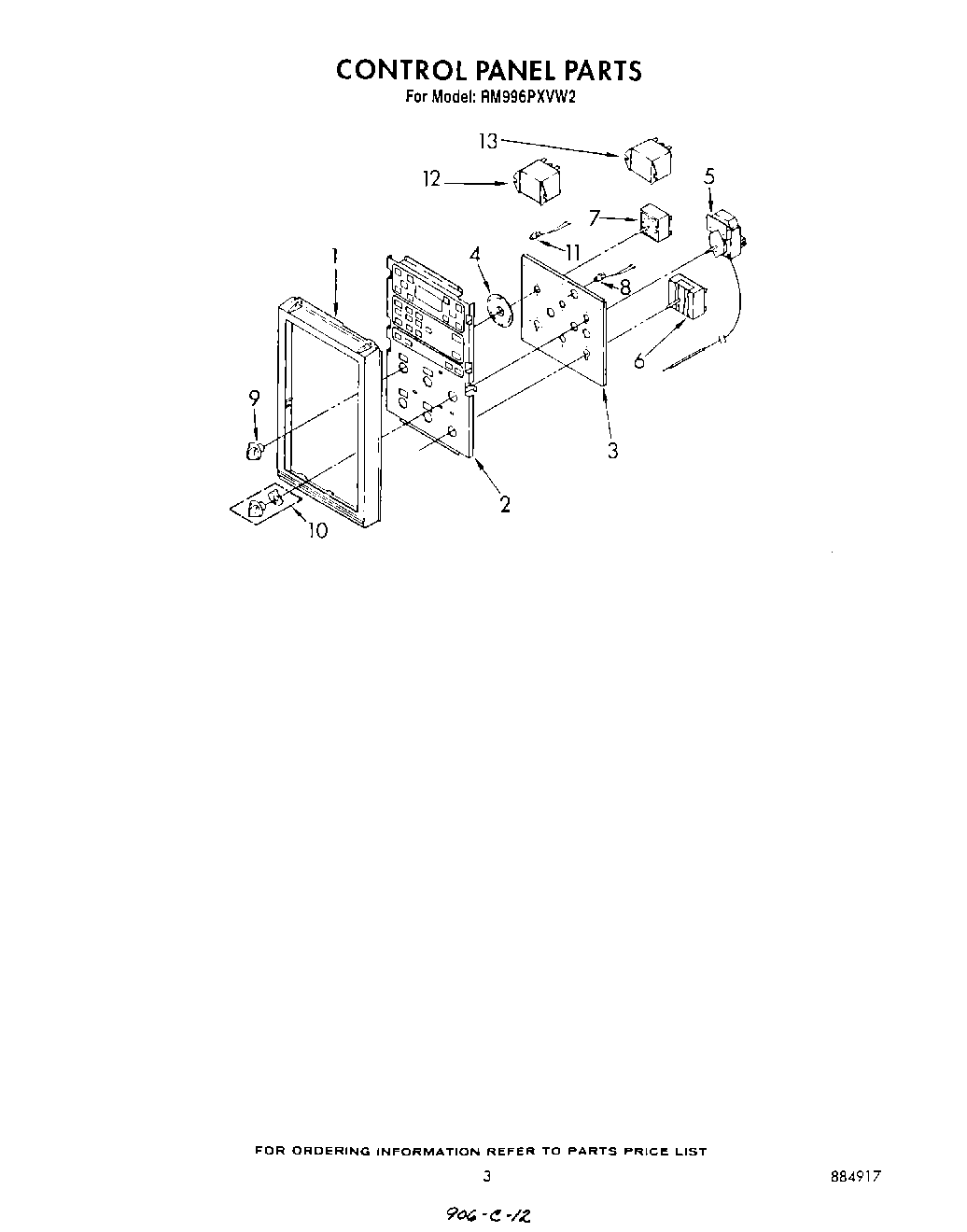

RM996PXVN2 03 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
1	WPL 312006
2	module, control
3	bracket, control (mounting)
3	Screw
4	Skirt, Dail (4)
5	WP313808 Whirlpool Screw
5	thermostat
6	Switch, Selector
7	switch, infinite (4)
7	Screw, 8-32 x 3/16 (2)
8	light, indicator (3)
9	Knob, Control (4)
10	knob, selector (2)
11	light, indicator
12	Relay, Vent (24V, Clear)
12	Screw
13	697811 Whirlpool Relay
