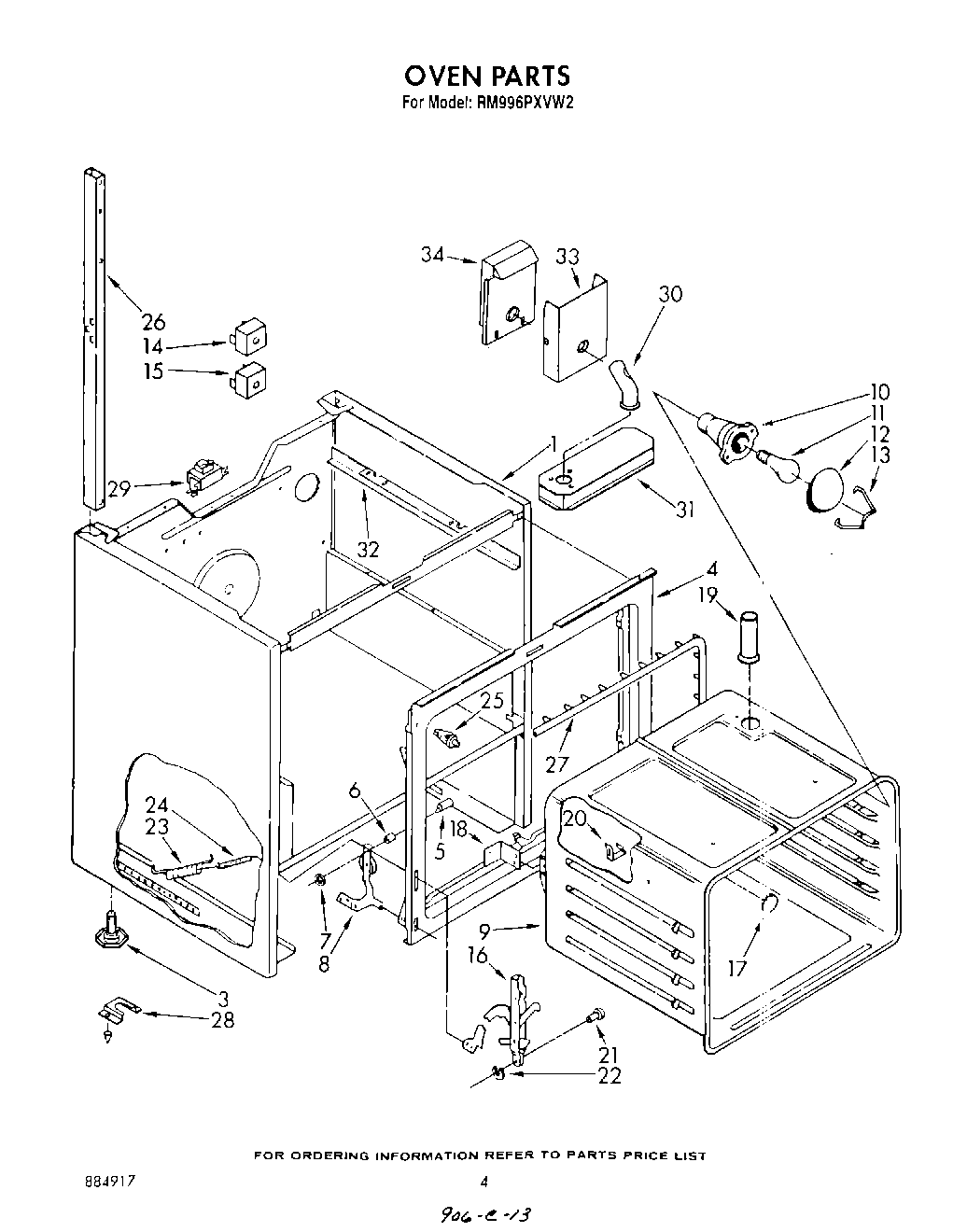

RM996PXVN2 04 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
	WPL 3147001
1	Main Chassis (Almond)
1	Main Chassis (White)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Eliminator, Smoke
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	support, tubing L.H.
26	Support, Tubing R.H.
27	Seal, Door
28	Anchor, Plastic
28	Screw
28	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	Ballast
29	Ballast (Alt.)
29	Ballast (Alt.)
30	Vent, Oven
30	SCREW
31	Box, Vent
32	Support, Chassis
32	panel, top (screw, 10a x 3/8 (3))
33	Screw (2)
33	Shield, Vent
34	Vent, Box
