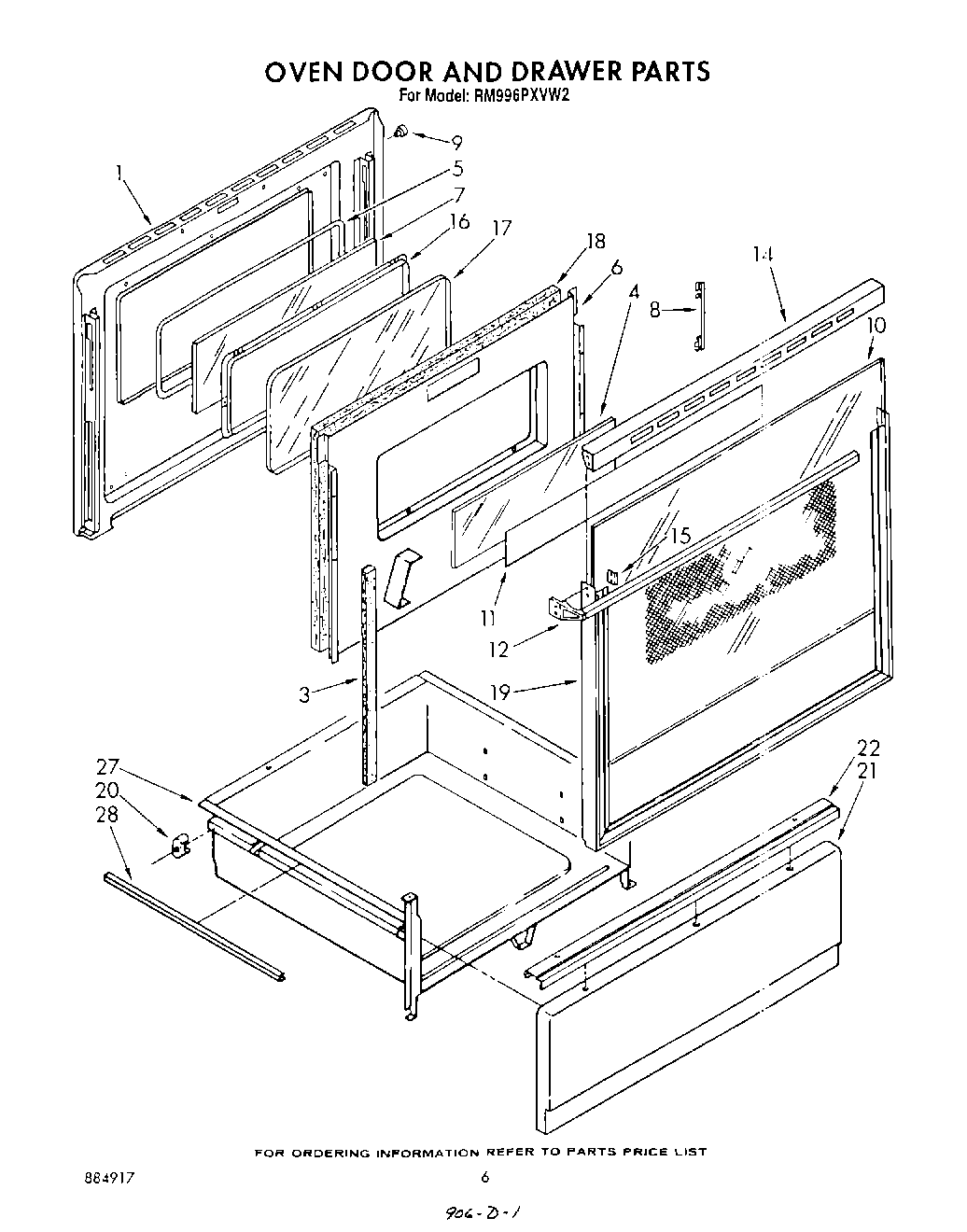

RM996PXVN2 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
14	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Insulation, Door
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel, Drawer (Almond)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (White)
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
27	Drawer, Utility
28	Protector, Drawer (2)
