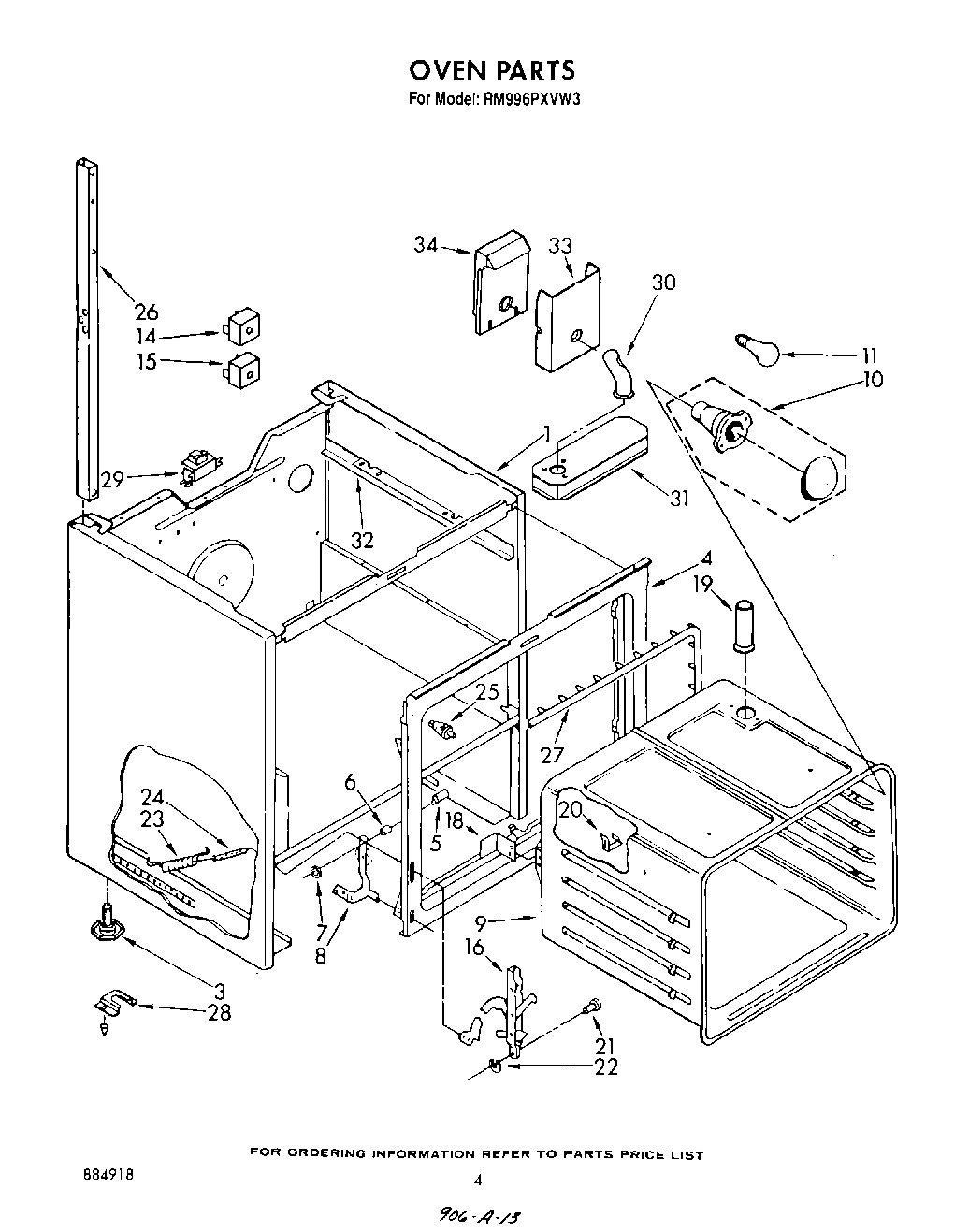

RM996PXVN3 04 – OVEN

Products

Position	Product
	SCREW
	Repair Part
	Cook
	WPL LIT312913
	WPL LIT3149507
	WPL LIT3147391
	Use & Care Guide (Range)
	Tech Sheet
1	Main Chassis (White)
1	Main Chassis (Almond)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Screw (Top)
9	Oven (30“ Pyro)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
18	Bracket, Oven (Mounting)
19	Eliminator, Smoke
19	Screw, 10A x 1/2 (2) (Black)
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	support, tubing L.H.
26	Support, Tubing R.H.
27	Seal, Door
28	Anchor, Plastic
28	Screw
28	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	Ballast (Alt.)
29	Ballast
29	Ballast (Alt.)
29	WPL 3147001
30	Vent, Oven
31	Box, Vent
32	panel, top (screw, 10a x 3/8 (3))
32	Support, Chassis
33	Shield, Vent
33	Screw (2)
34	WPL 310433
34	WPW10208653 Whirlpool Insulation
34	Vent, Box
