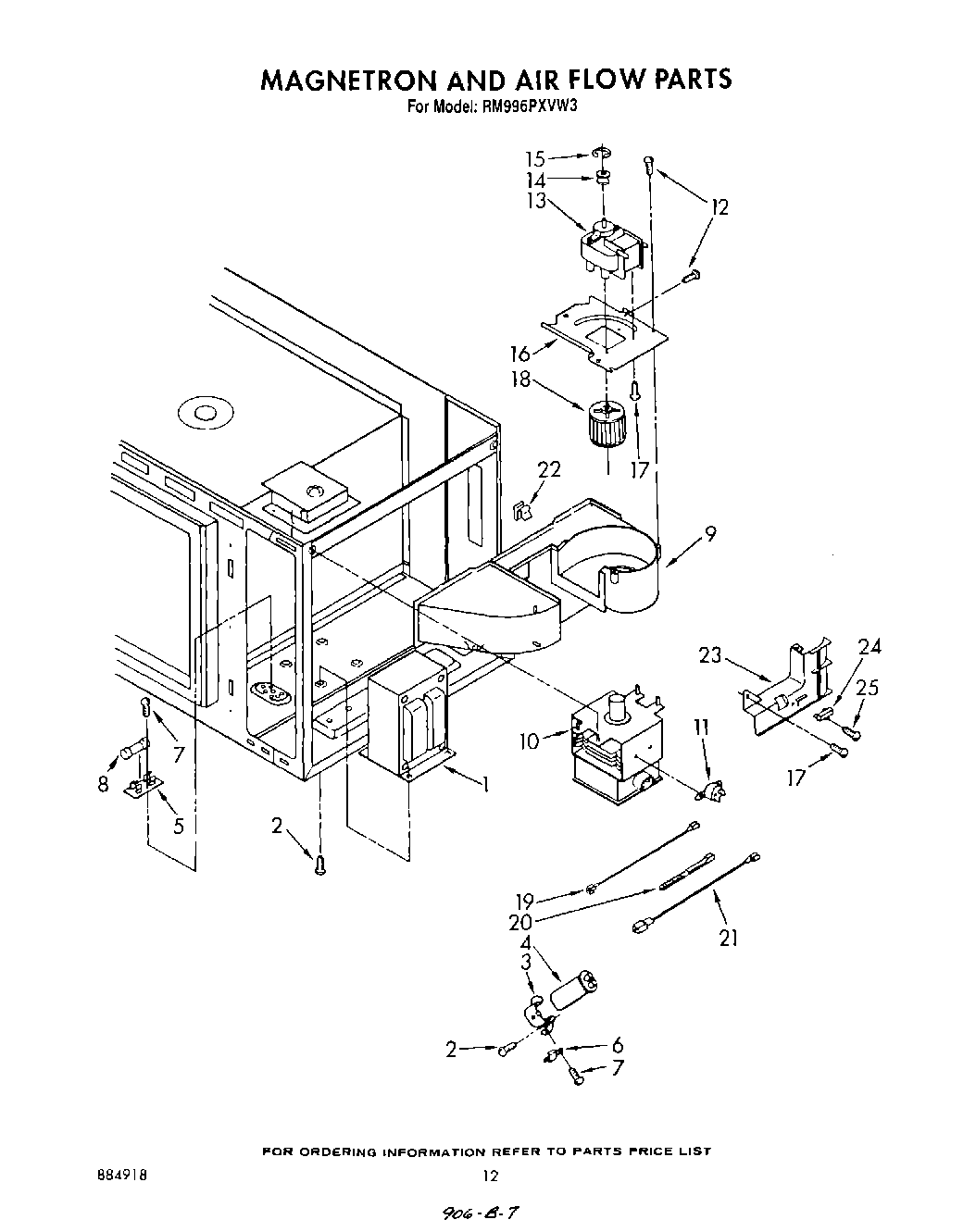

RM996PXVN3 08 – MAGNETRON AND AIR FLOW

Products

Position	Product
NI	Screw, 6A x 3/8 (2)
1	Transformer (Alt.)
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3	Bracket, Capacitor
4	Capacitor
4	Capacitor (Alt.)
4	capacitor (alt.)
5	4454949 Whirlpool Oven Fuse Block
6	Rectifier, High Voltage
7	screw
8	WPW10017410 Whirlpool Fuse
9	Air Duct (Horizontal)
10	Magnetron (Alt.)
10	Magnetron (Alt.)
10	Magnetron (Alt.)
10	Magnetron (Alt.)
10	Magnetron (Alt.)
10	Magnetron
11	Thermal Protector (Alt.)
11	Thermal Protector (Alt.)
11	Thermal Protector
12	Screw, 11-16 x 1/2 Double Load Space Thread (5)
13	Transmotor
14	Pulley, Motor
15	“E“ Ring
16	Bracket, Motor
17	WP486579 Whirlpool Air Conditioner Screw
18	Wheel, Blower
19	Jumper, High Voltage Red (6-5/16“)
20	WPW10339879 Whirlpool Wire Tie
21	High Voltage Lead, Gray 6-3/4“ (2)
22	Clip
23	Extension, Air Duct
24	Fuse, Thermal
25	Screw
