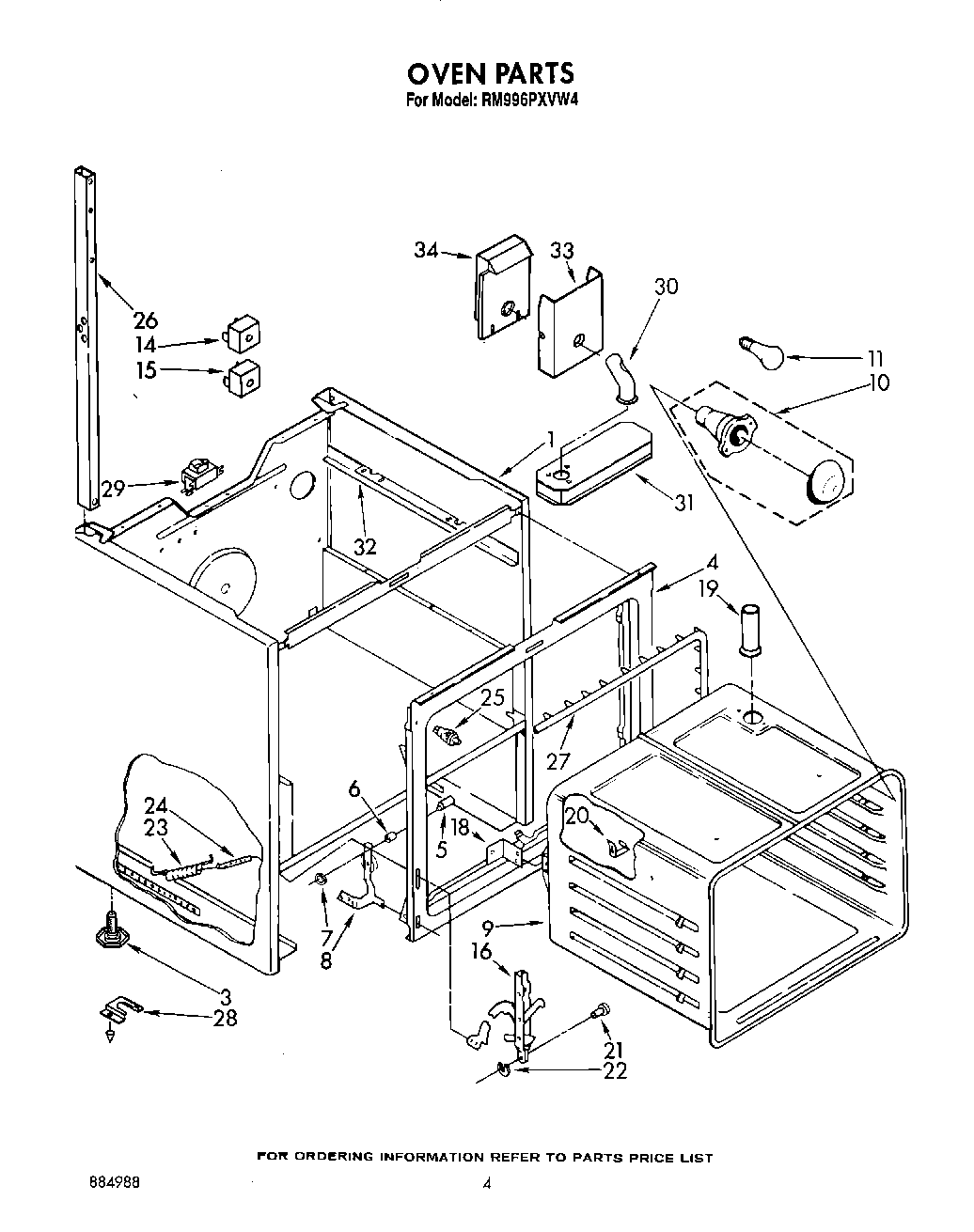

RM996PXVN4 04 – OVEN, LIT/OPTIONALadmin2025-04-26T12:07:52+00:00RM996PXVN4 04 – OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Tech Sheet |
| WPL LIT3150400 |
| Cook |
| WPL LIT884988 |
| Video, Ceran Cooktop |
| WPL LIT312913 |
| WPL LIT3147391 |
| Chart, Sensor Cooking |
| Use & Care Guide (Range) |
| WPL LIT3149507 |
| 1 | Main Chassis (Almond) |
| 1 | Main Chassis (White) |
| 3 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 4 | Frame, Front |
| 5 | Pin, Hinge Ear (2) |
| 6 | Snubber, Door (2) |
| 7 | Pushnut (2) |
| 8 | Hinge (L.H.) |
| 8 | Hinge (R.H.) |
| 9 | Screw (Top) |
| 9 | Oven (30`` Pyro) |
| 9 | Screw (3) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | W11594027 Whirlpool Range Oven Light Socket |
| 11 | RANGE ONLY 40W 120V APPL BULB |
| 14 | Sw |
| 15 | Switch, Bake |
| 15 | WPL 314215 |
| 16 | Channel, Arm (2) |
| 18 | Bracket, Oven (Mounting) |
| 19 | Tube, Vent |
| 19 | Screw, 10A x 1/2 (2) (Black) |
| 20 | 98005642 Whirlpool Clip |
| 21 | WP307986 Whirlpool Hinge Pin |
| 22 | Retainer Ring (2) |
| 23 | WP308126 Whirlpool Door Spring |
| 24 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 25 | Switch, Door |
| 26 | support, tubing L.H. |
| 26 | Support, Tubing R.H. |
| 27 | Seal, Door |
| 28 | 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| 28 | Screw |
| 28 | Anchor, Plastic |
| 29 | Ballast (Alt.) |
| 29 | Ballast (Alt.) |
| 29 | Ballast |
| 29 | WPL 3147001 |
| 29 | SCREW |
| 30 | Vent, Oven |
| 31 | Box Vent |
| 32 | Support, Chassis |
| 32 | panel, top (screw, 10a x 3/8 (3)) |
| 33 | Screw (2) |
| 33 | Shield, Vent |
| 34 | WPL 3169093 |
| 34 | WPL 3169094 |
| 34 | Vent, Box |
