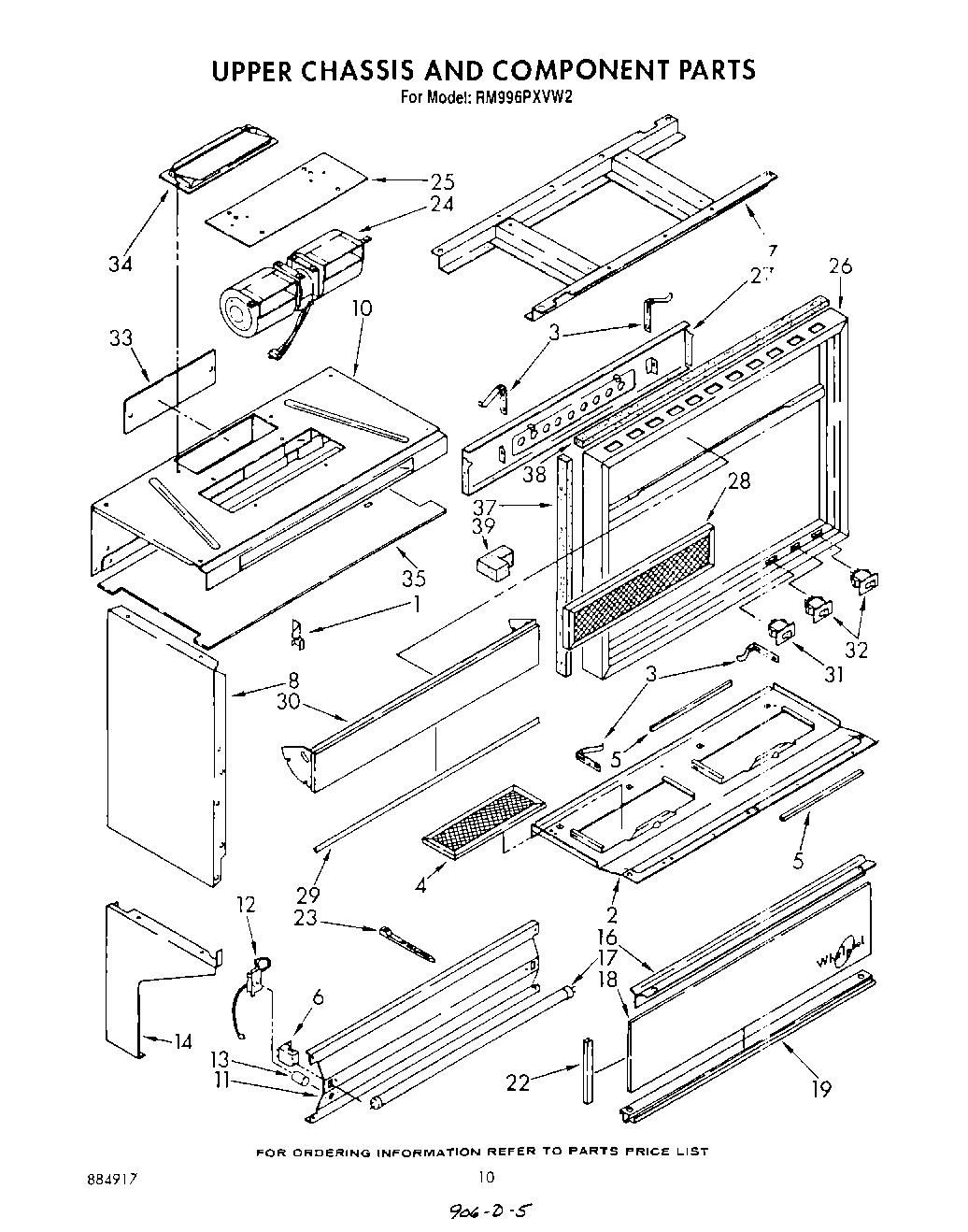

RM996PXVW2 07 – UPPER CHASSIS AND COMPONENT

Products

Position	Product
1	Bracket, Stop R.H.
1	Bracket, Stop L.H.
2	Panel, Bottom
2	Seal, Foam
2	Channel, Rubber (4)
4	Filter, Mesh (2)
5	Edge, Protector (2)
6	Socket, Assembly L.H.
6	Socket, Assembly R.H.
7	Support, Frame
8	Side Panel, L.H. (Seal, Foam (2) Side Panel, R.H.)
8	Side Panel L.H. (Seal, Foam (2))
8	WPL 3171913
8	Side Panel, L.H. (White)
8	Side Panel, L.H. (White)
8	Side Panel,
8	WP488627 Whirlpool Refrigerator Screw
10	Top Panel
11	Panel, Backguard
12	Socket, Flourscent
14	End Trim R.H. (Almond)
14	SCREW
14	Screw (10-12 x .875)
14	end trim R.H. (almond)
14	End Trim R.H. (White)
14	End Trim R.H. (Almond)
16	WPL 313320
17	WP95292 Whirlpool Fluorescent Light Bulb
18	Glass Backsplash
19	WP90767 Whirlpool Screw
19	WPL 313321
22	WPL 313319
23	WPW10339879 Whirlpool Wire Tie
24	Blower, Exhaust
25	Nut (6)
25	Cover, Access
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPL 3149557
26	Screw
27	WPL 3147858
27	WPL 3417755
27	Panel, Vent Door
27	Screw, Schoulder (2)
27	WPL 3147764
28	WPL 3147525
28	WPL 3147609
29	WP313808 Whirlpool Screw
29	WPL 3149007
30	WPL 3170269
31	WP3147265 Whirlpool Rocker Switch
32	WP4314961 Whirlpool Lite Switch
32	302251 Whirlpool Dishwasher Screw
33	WPL 3147726
34	WPL 3147843
35	WPL 3147250
37	WPL 3147595
38	WPL 3147590
39	WPL 3149016
