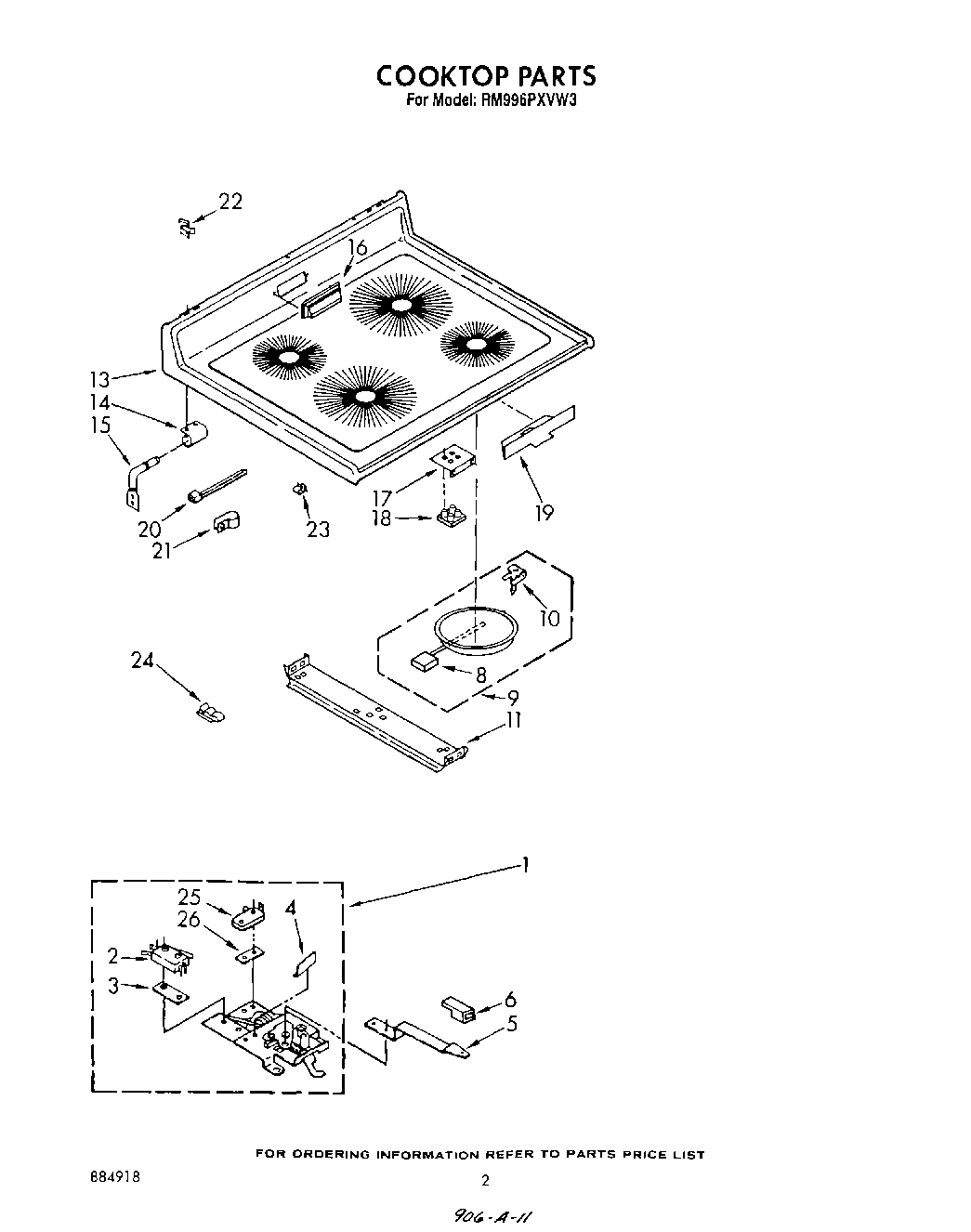

RM996PXVW3 02 – COOK TOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter Temp. (8“ – RR)
8	Limiter, Temp. (180 MM – LR)
8	Limiter, Temp. (200 MM – RF)
8	Limiter, Temp. (250 mm (LF))
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (Includes No. 1, No. 3) (180 MM – LR)
9	Element, Surface (Includes No. 1, No. 3) (200 MM – RF)
9	Element, Surface (Includes No. 1, No. 3) (230 MM – RR)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
13	Cooktop (White)
13	cooktop (almond)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	Cover, Vent (White)
16	cover, vent (almond)
17	Bracket, Light
18	Light, Indicator
19	Shield, Probe
20	Cable Tie
21	Screw (2)
21	WP308605 Whirlpool Refrigerator Clamp
22	Clip, Vent Cover
23	Clip
24	Clip, Tube
25	Switch, Lock
26	WPL 3147864
