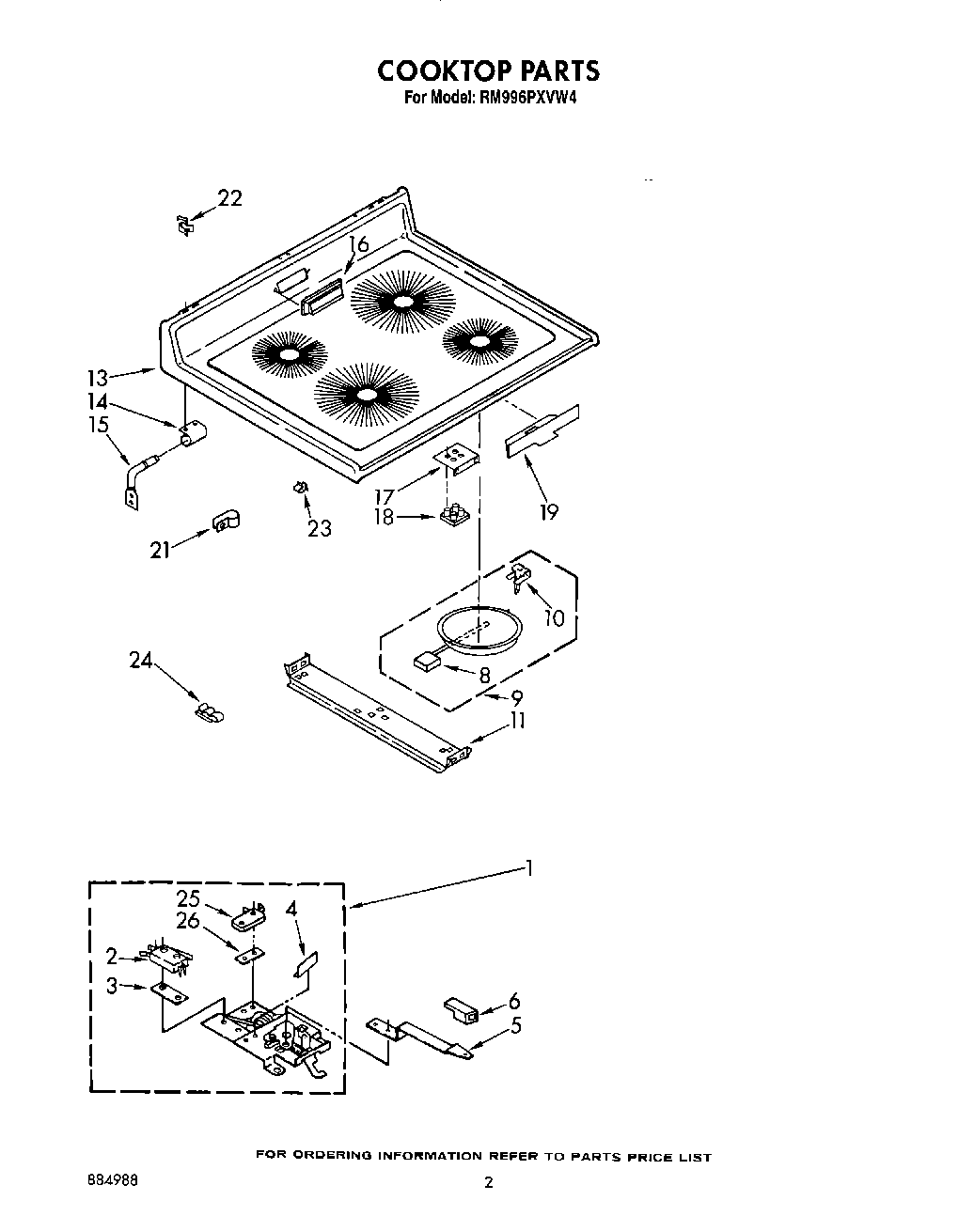

| 1 | Latch Assembly |
| 2 | Screw |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | Handle, Latch |
| 5 | Screw |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Limiter, Temp. (250 mm (LF)) |
| 8 | Limiter, Temp. (200 MM - RF) |
| 8 | Limiter Temp. (8`` - RR) |
| 8 | Limiter, Temp. (180 MM - LR) |
| 9 | WP8185663 Whirlpool Surface Element |
| 9 | Element, Surface (Includes No. 1, No. 3) (180 MM - LR) |
| 9 | Element, Surface (Includes No. 1, No. 3) (200 MM - RF) |
| 9 | Element, Surface (Includes No. 1, No. 3) (230 MM - RR) |
| 10 | WP486754 Whirlpool Compactor Screw |
| 10 | Spring, Locator |
| 11 | Bracket, (2) Element Support |
| 13 | cooktop (almond) |
| 13 | Cooktop (White) |
| 14 | Bracket, Cooktop (2) |
| 15 | SCREW |
| 15 | Pin, Cooktop (2) |
| 16 | Cover, Vent (White) |
| 16 | cover, vent (almond) |
| 17 | Bracket, Light |
| 18 | Light, Indicator |
| 19 | Shield, Probe |
| 21 | WP308605 Whirlpool Refrigerator Clamp |
| 21 | Screw (2) |
| 22 | Clip, Vent Cover |
| 23 | Clip |
| 24 | Clip, Tube |
| 25 | Switch, Lock |
| 26 | WPL 3147864 |
