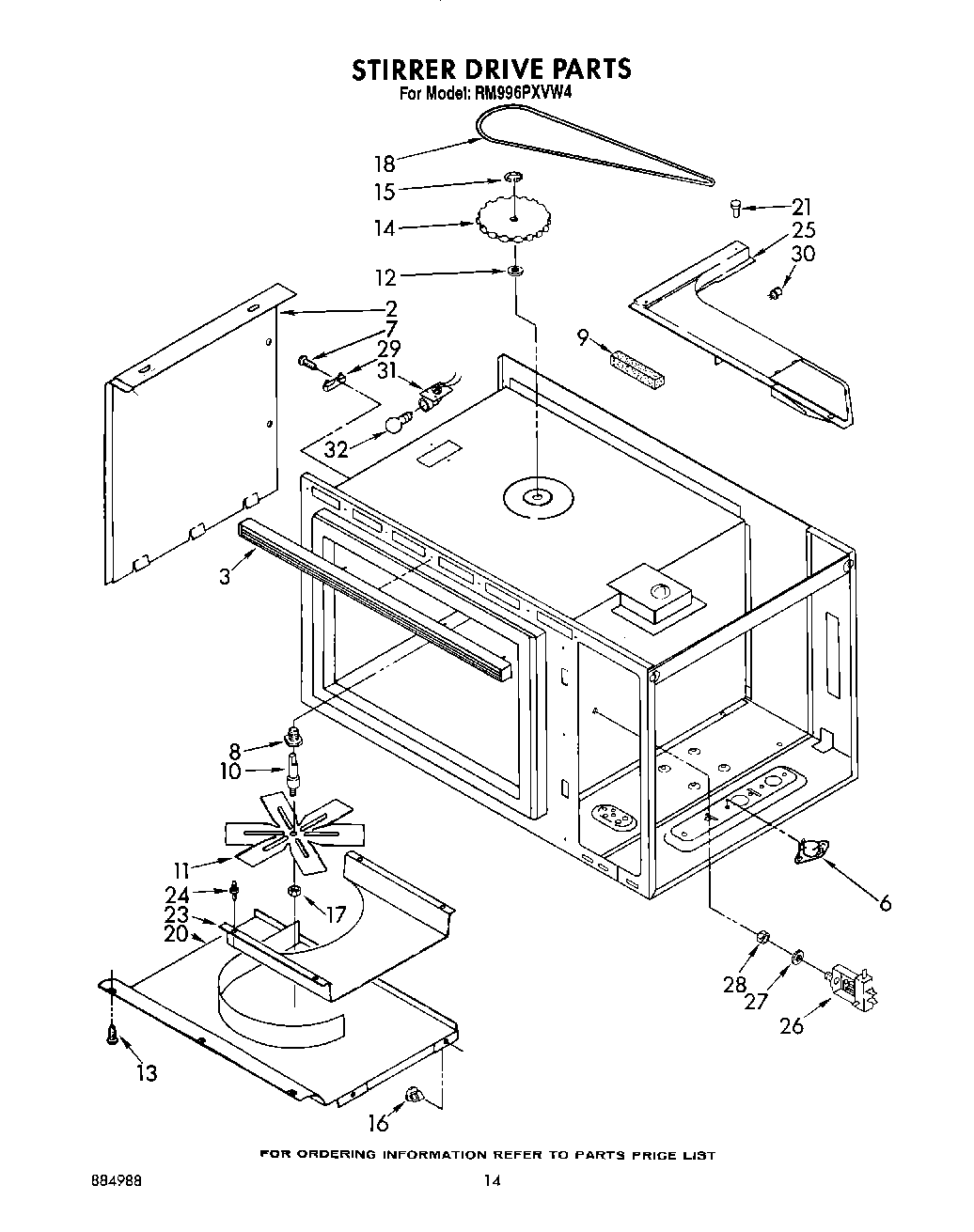

RM996PXVW4 09 – STIRRER DRIVE

Products

Position	Product
2	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Side
3	Grille, Air
6	Screw
6	Thermostat
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	screw, 8-32 x 1/2 (3)
14	Pulley, Stirrer Blade
15	``E`` Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
21	Fastener (2)
23	Plate, Tuning
24	Support (4)
25	Baffle, Air Exhaust
26	Probe Jack
27	Washer, Internal Lock
28	Nut
29	Fuse, Thermal
30	Sensor, Gas
31	Snap-In Socket
31	screw
32	WP3395618 Whirlpool Light Bulb
