RMC275PDB1 03 – OVEN DOOR

RMC275PDB1 03 – OVEN DOOR

Written by

in

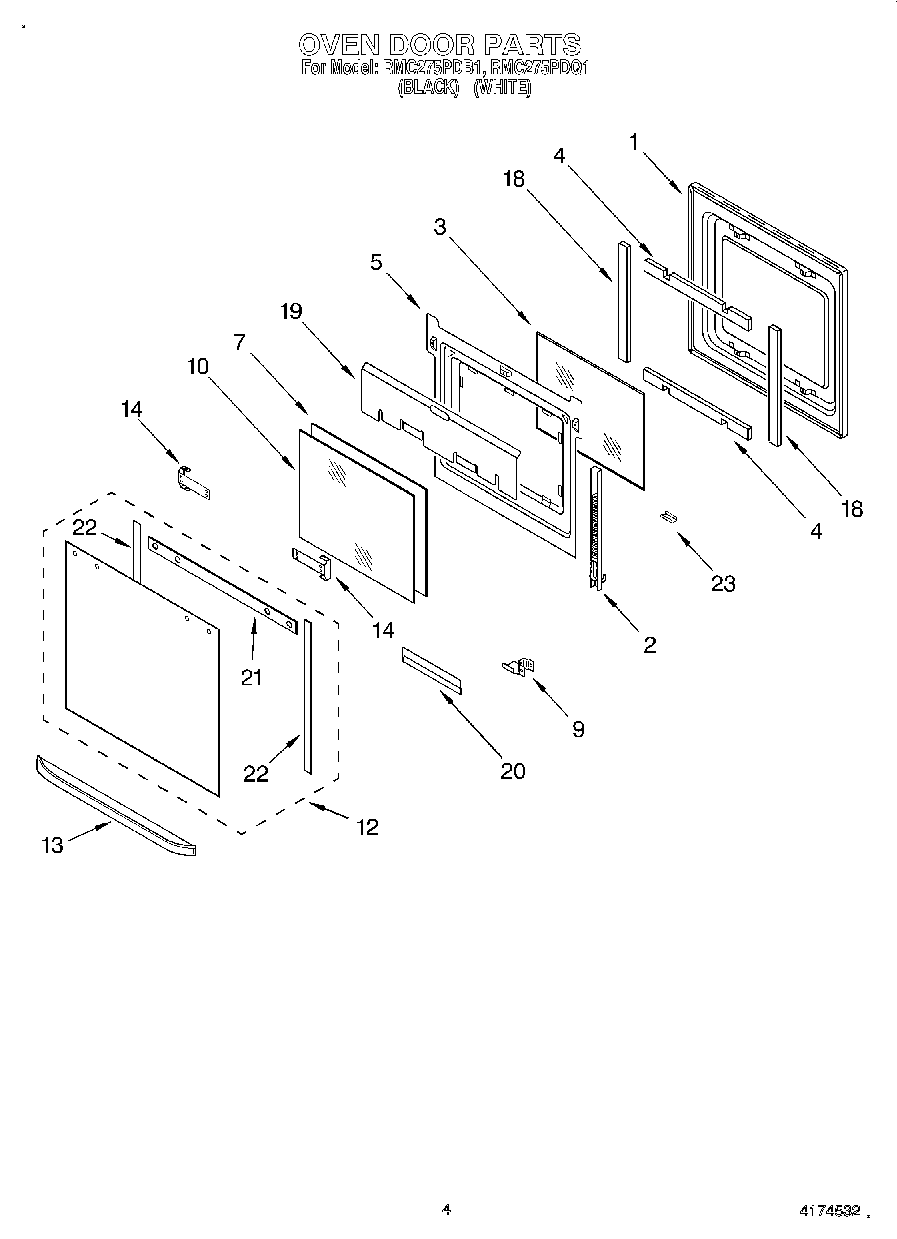

RMC275PDB1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation Top and Bottom
5	Retainer, Glass
9	Retainer, Glass
10	WP4449257 Whirlpool Door Glass
12	Door Glass, Outer (Black Model)
12	Door Glass, Outer (White Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Screw
14	Bracket, Handle
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	WP4449743 Whirlpool Screw
