RMC275PDB1 07 – MICROWAVE DOOR

RMC275PDB1 07 – MICROWAVE DOOR

Written by

in

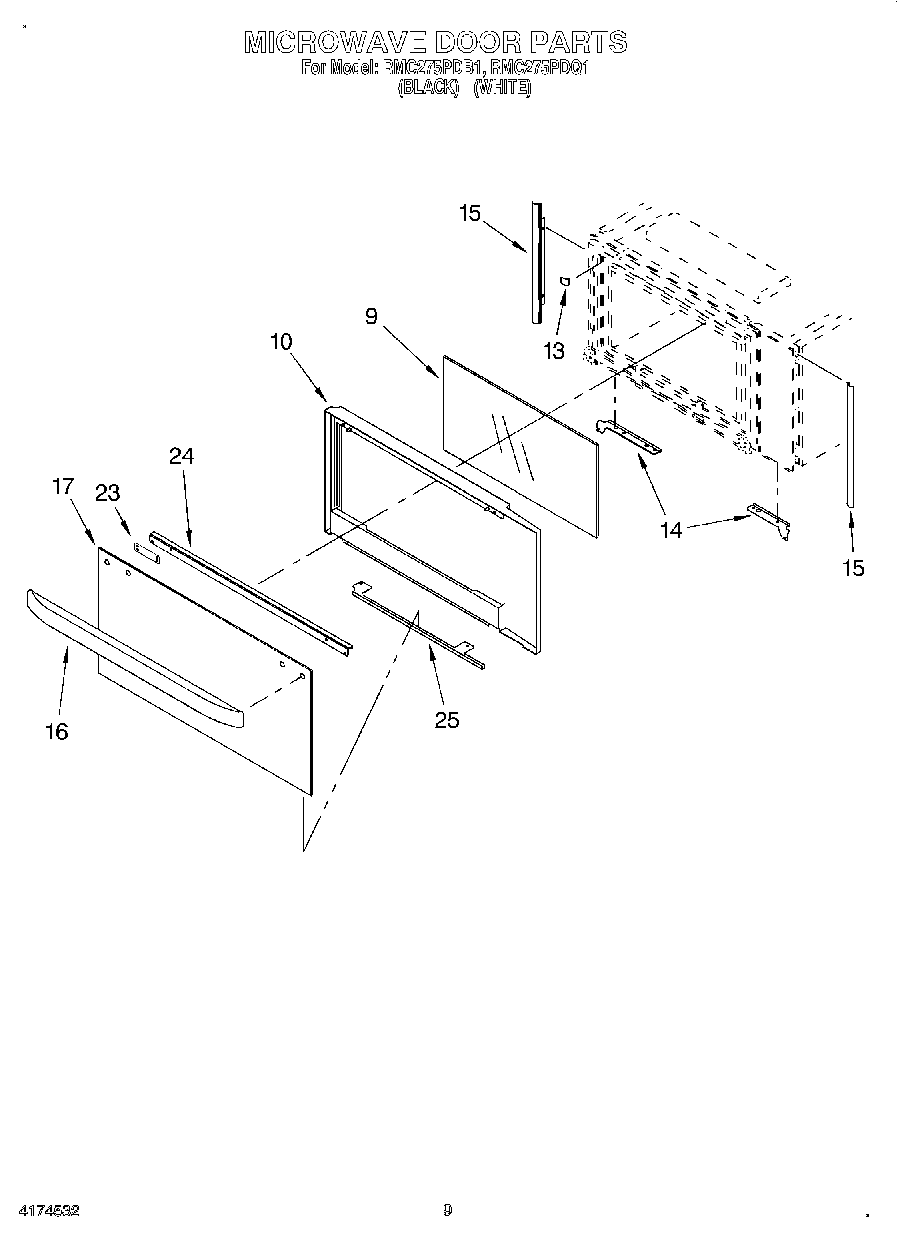

RMC275PDB1 07 – MICROWAVE DOOR

Products

Position	Product
9	Glass, Middle
10	Frame, Door
13	Tape, Foam
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	WP4449809 Whirlpool Screw
15	Filler, Side
16	Handle, Door (White Model)
16	Handle, Door (Black Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
23	Spacer (Stainless)
24	Bracket, Handle
24	Screw
25	Clip, Glass (White Model)
25	Clip, Glass (Black Model)
