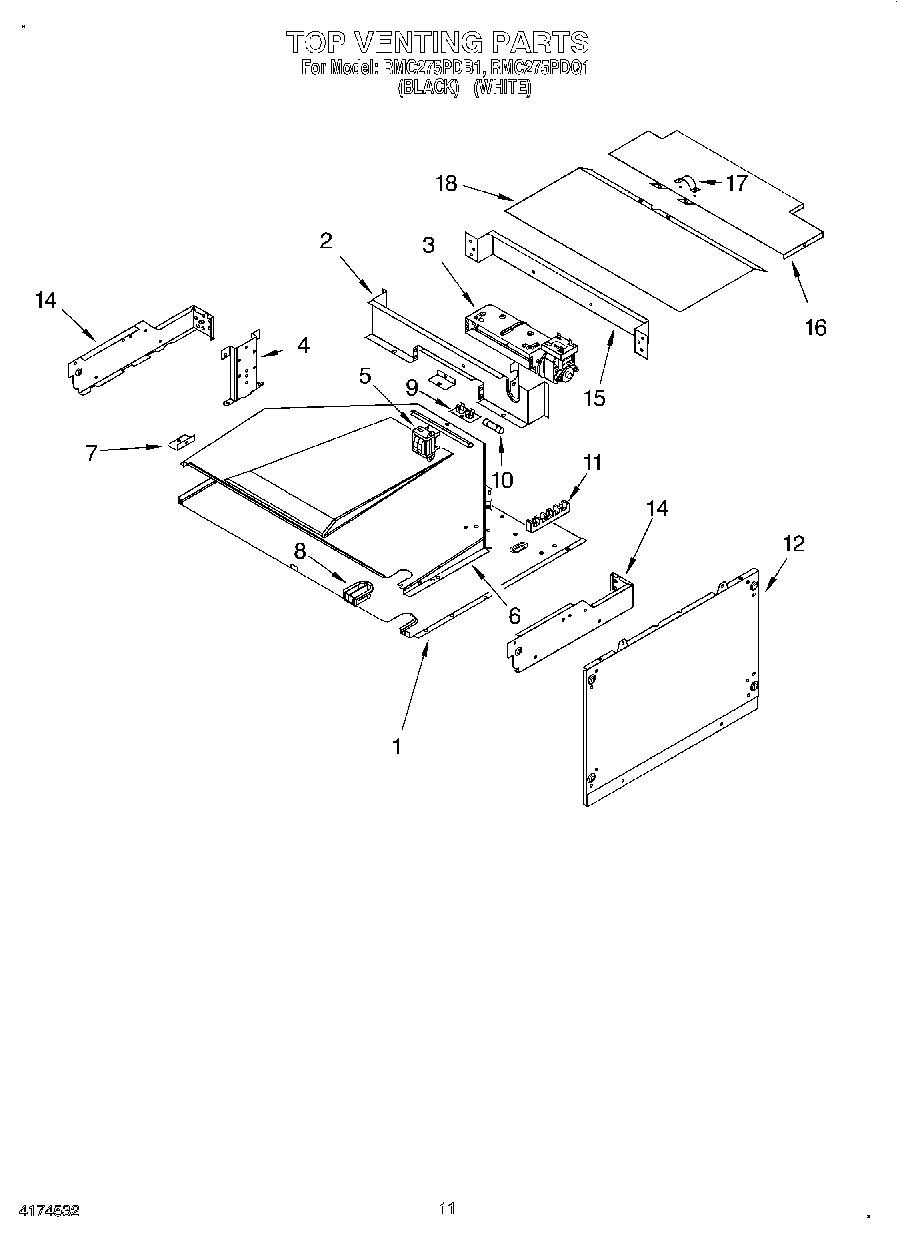

RMC275PDB1 09 – TOP VENTING, OPTIONAL

RMC275PDB1 09 – TOP VENTING, OPTIONAL

Written by

in

RMC275PDB1 09 – TOP VENTING, OPTIONAL

Products

PositionProduct
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
4Bracket, Transformer
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8Grommet
8WP112432 Whirlpool Nut Assembly
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
12WP4450038 Whirlpool Screw
12Side, Combo
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Wire (14 Ga. 200 c Brown)
181
18Cover, Top Front
1818 Ga. 80~c Rating (Red)
18WPL 591014
18Harness, Wire (Door Switch)
184450950 Whirlpool Oven Conduit
18Harness, Wire (Latch)
18261900 Whirlpool Microwave Spray
18Harness, Main
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18WP482338 Whirlpool Refrigerator Adhesive
1872032 Whirlpool Touch Up Paint Black
18285006 Whirlpool Spray
184450800 Whirlpool Oven Screw
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP488366 Whirlpool Refrigerator Clamp
18WP4449809 Whirlpool Screw
18350930 Whirlpool White Spray Paint
18814381 Whirlpool Pin
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18Ground (M/W)
18Filler Kit (WH)
18Filler Kit (BL)
18WP4448950 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
