RMC275PDB2 07 – MICROWAVE DOOR

RMC275PDB2 07 – MICROWAVE DOOR

Written by

in

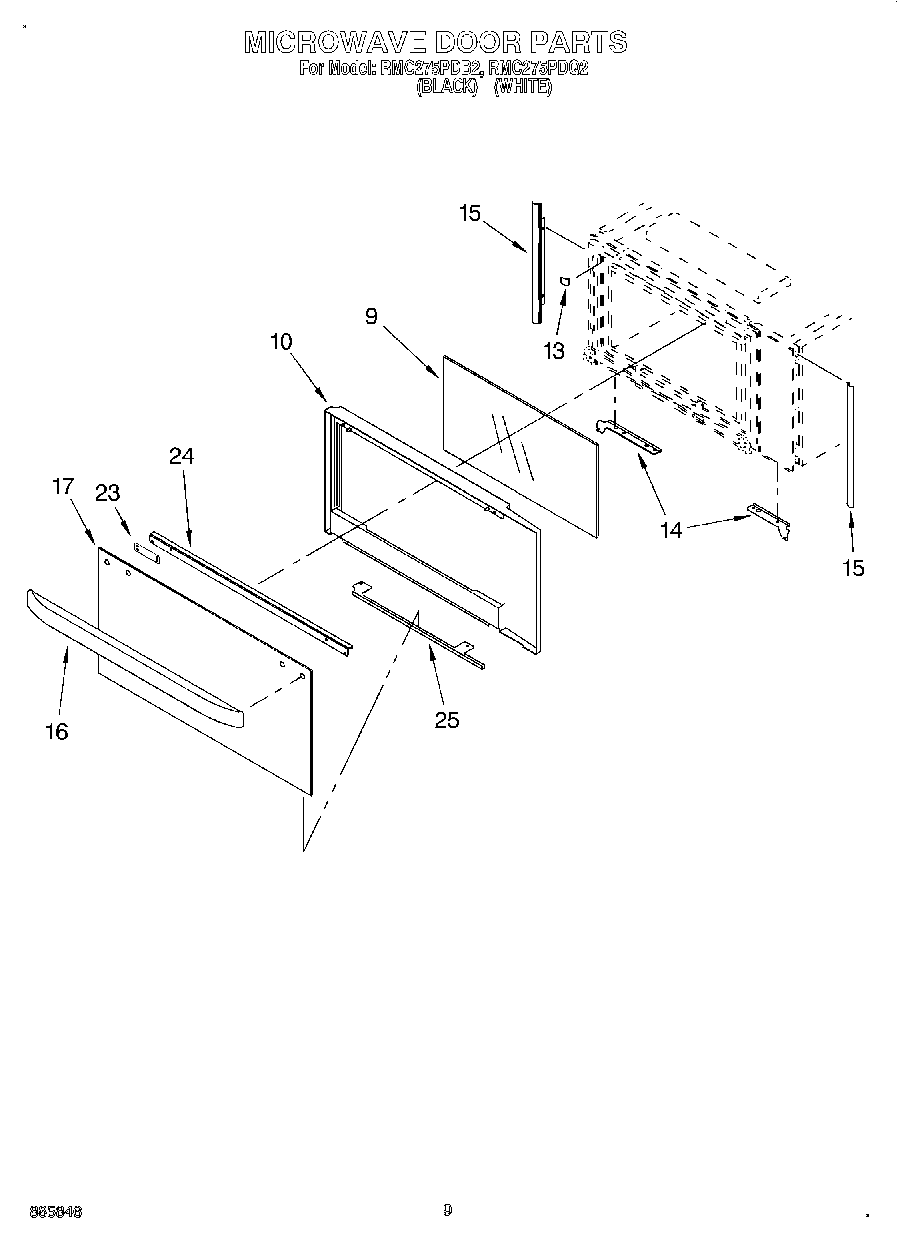

RMC275PDB2 07 – MICROWAVE DOOR

Products

Position	Product
9	Glass, Middle
10	Frame, Door
13	Tape, Foam
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side
15	WP4449809 Whirlpool Screw
16	Handle, Door (White Model)
16	Handle, Door (Black Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
23	Spacer (Stainless)
24	Screw
24	Bracket, Handle
25	Clip, Glass (White Model)
25	Clip, Glass (Black Model)
