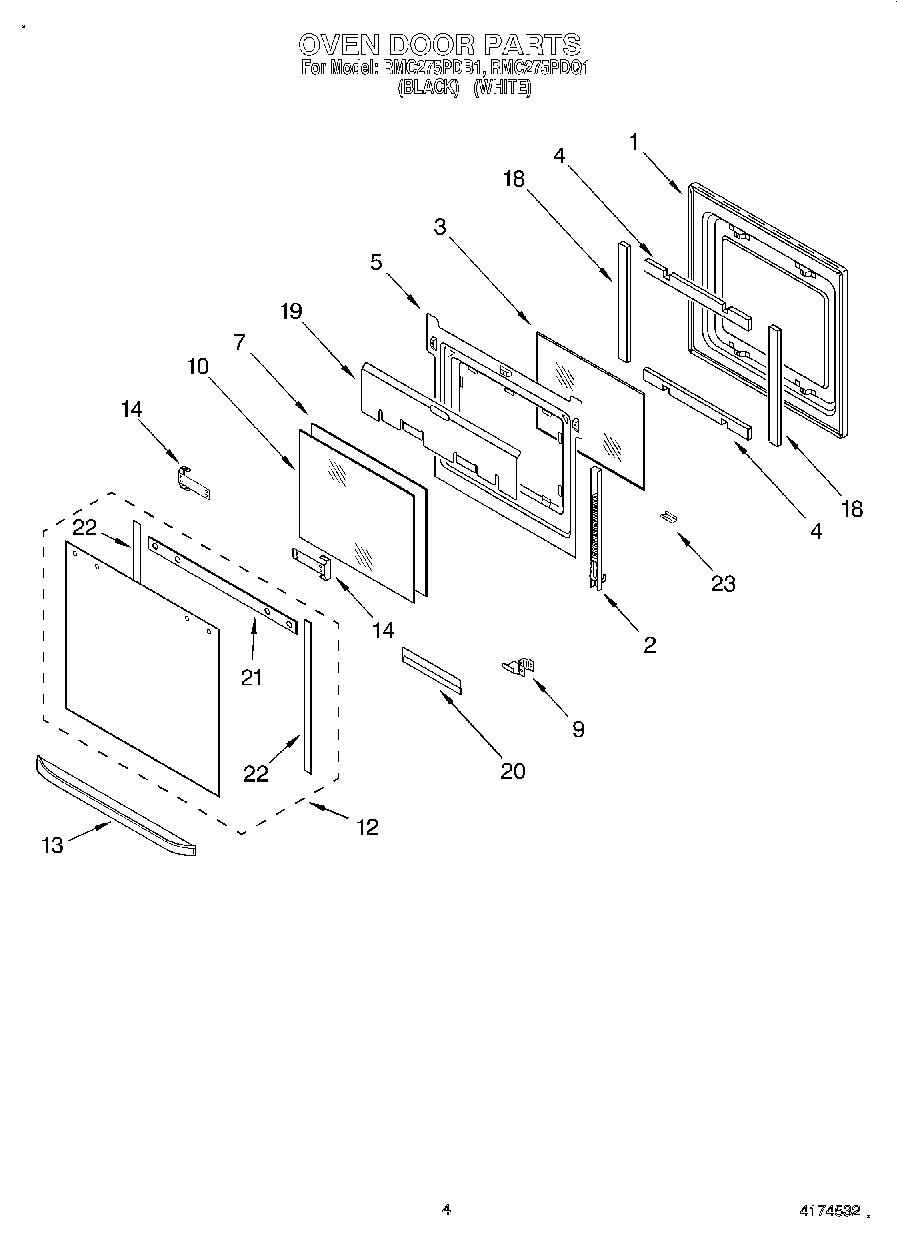

RMC275PDQ1 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455524 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation Top and Bottom
5Retainer, Glass
9Retainer, Glass
10WP4449257 Whirlpool Door Glass
12Door Glass, Outer (Black Model)
12Door Glass, Outer (White Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Screw
14Bracket, Handle
18W11688413 Whirlpool Insulation
19Shield, Heat
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Top
22Seal, Sides
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
23WP4449743 Whirlpool Screw
