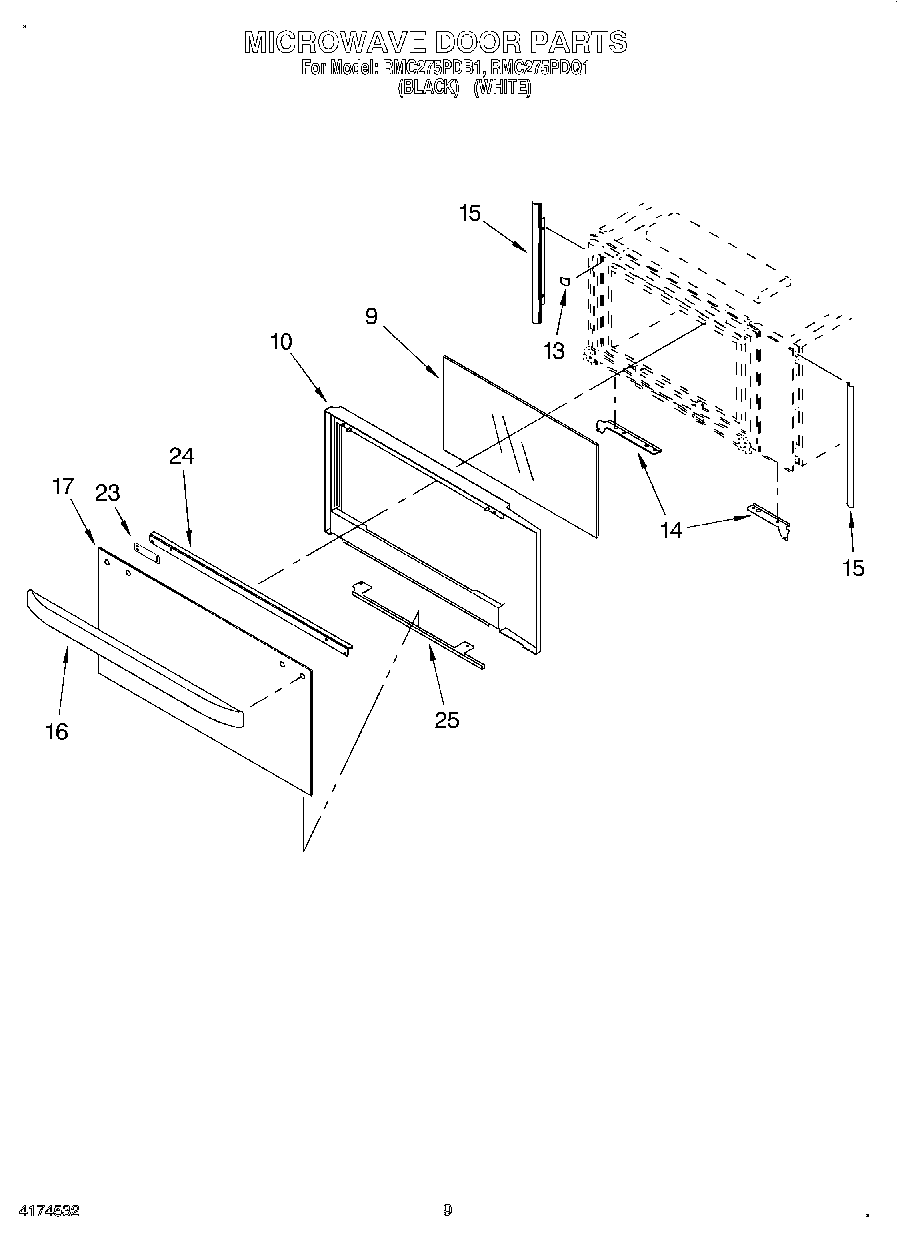

RMC275PDQ1 07 – MICROWAVE DOOR

Products

PositionProduct
9Glass, Middle
10Frame, Door
13Tape, Foam
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15WP4449809 Whirlpool Screw
15Filler, Side
16Handle, Door (White Model)
16Handle, Door (Black Model)
17Glass, Outer (Black Model)
17Glass, Outer (White Model)
23Spacer (Stainless)
24Bracket, Handle
24Screw
25Clip, Glass (White Model)
25Clip, Glass (Black Model)
