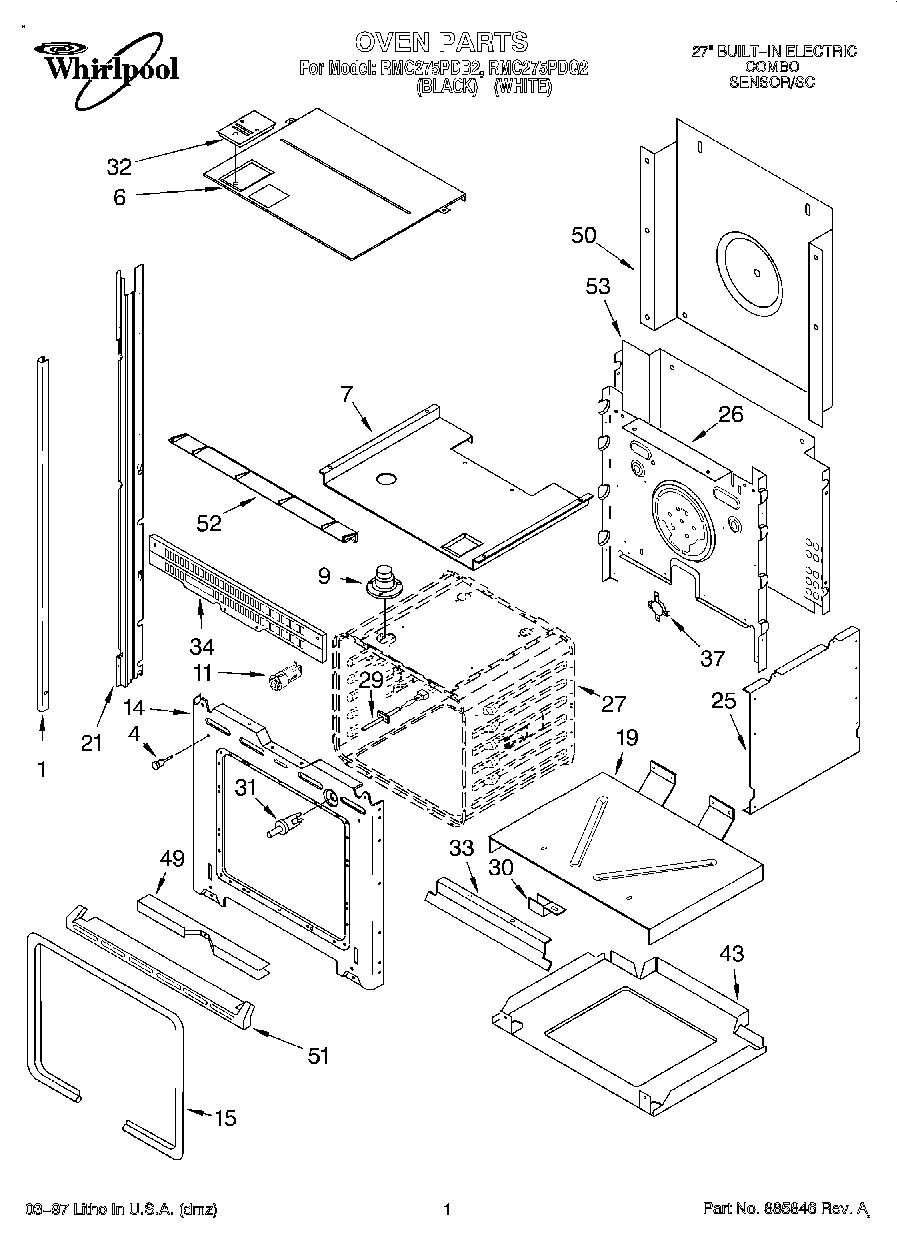

RMC275PDQ2 01 – OVEN

RMC275PDQ2 01 – OVEN

Written by

in

RMC275PDQ2 01 – OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1Trim, Side (LH White)
1Trim, Side (RH White)
1Trim, Side (RH Black)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
31Switch, Door
32Vent Box Assy
33Deflector, Vent
34WP8304106 Whirlpool Oven Vent
34WP4450038 Whirlpool Screw
37Thermostat (TOD) (Temp.) SPST
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
50WP4449809 Whirlpool Screw
51WPL 4448476
51Tri
51Screw, (2)
52Vent, Control Panel (Stainless Steel Model)
53Chassis, Back
53WPL 4449315
53Insulation, Bottom
53WPL 4450364
