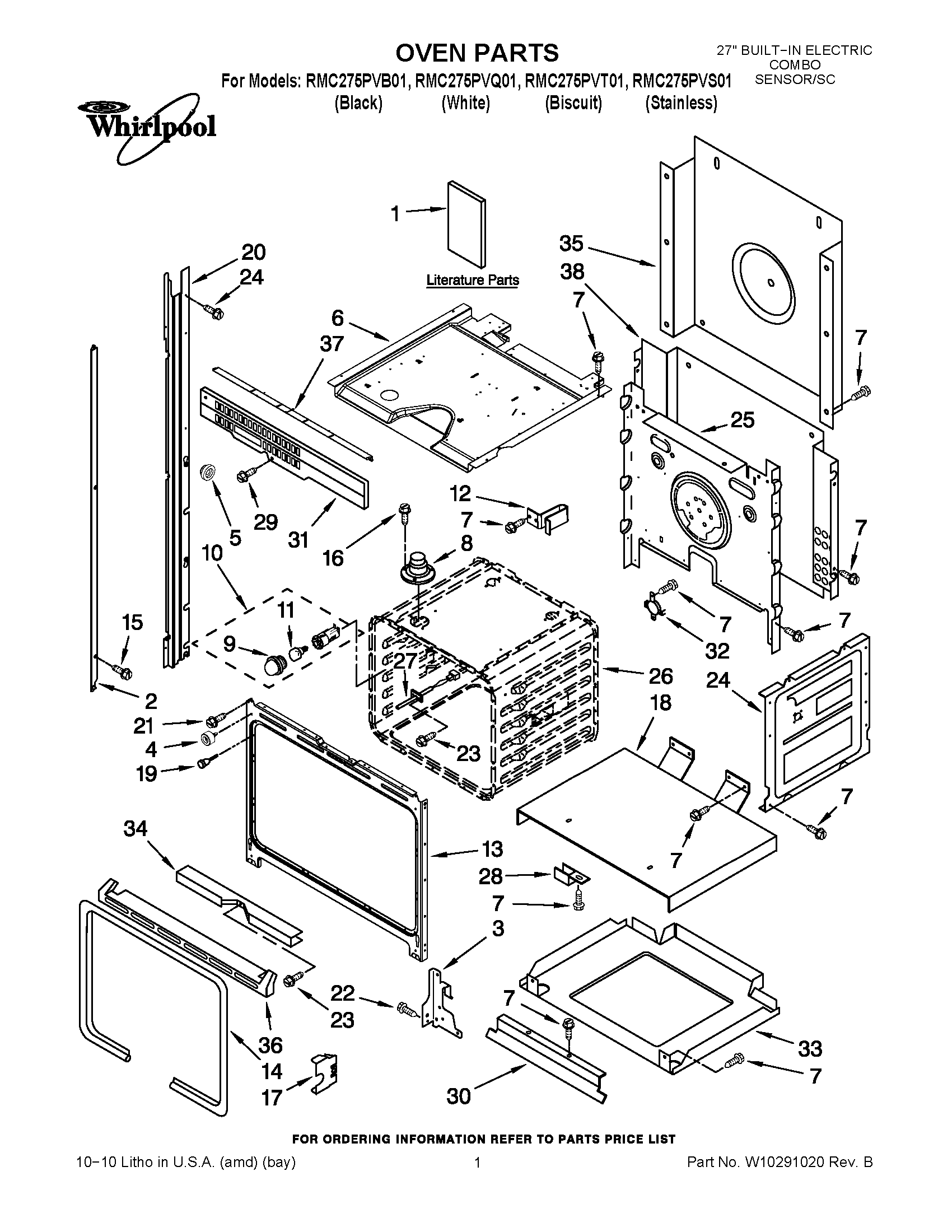

RMC275PVB01 01 – OVEN PARTS

RMC275PVB01 01 – OVEN PARTS

Written by

in

RMC275PVB01 01 – OVEN PARTS

Products

PositionProduct
NIWPL 4450364
NIWPL 4449315
1Use & Care Guide (Oven)
1Installation Instructions (Bottom Trim)
1Tech Sheet
1Use & Care Guide (Microwave)
1Installation Instructions
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Trim, Side Left (Biscuit)
2Trim, Side Left (White)
2Trim, Side Right (Biscuit)
2Trim, Side Right (Black)
2Trim, Side Right (Stainless)
2Trim, Side Right (White)
2Trim, Side Left (Stainless)
2Trim, Side Left (Black)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP4448444 Whirlpool Grommet
6Top, Chassis
7WP4449809 Whirlpool Screw
8W10861715 Whirlpool Vent Tube
9Lens, Light (2)
10WPW10734065 Whirlpool Light
11WP4173175 Whirlpool Light Bulb
12Bracket, Combo Chassis
13Frame, Front
14WP4455381 Whirlpool Door Gasket
15WP3400832 Whirlpool Screw
16SCREW
174452152 Whirlpool Oven Mounting Bracket
18Support, Insulation
194448520 Whirlpool Oven Bumper
20Rail, Side (Right Side)
20Rail, Side (Left Side)
21Screw
22WP4449743 Whirlpool Screw
23WP4449154 Whirlpool Screw
24W10782197 Whirlpool Side Panel
25Back, Chassis
26CABINET (NOT A SERVICEABLE PART)
27WPW10131825 Whirlpool Oven Temperature Sensor
28WPL 4449845
29WP4450038 Whirlpool Screw
30Deflector, Vent
31WP8304106 Whirlpool Oven Vent
32WP9759243 Whirlpool Thermostat
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WP4451747 Whirlpool Rear Cover
36Trim, Bottom Vent (Biscuit)
36Trim, Bottom Vent (Stainless)
36Trim, Bottom Vent (Black)
36Trim, Bottom Vent (White)
37WPL 8303503
38WPL 4451755
