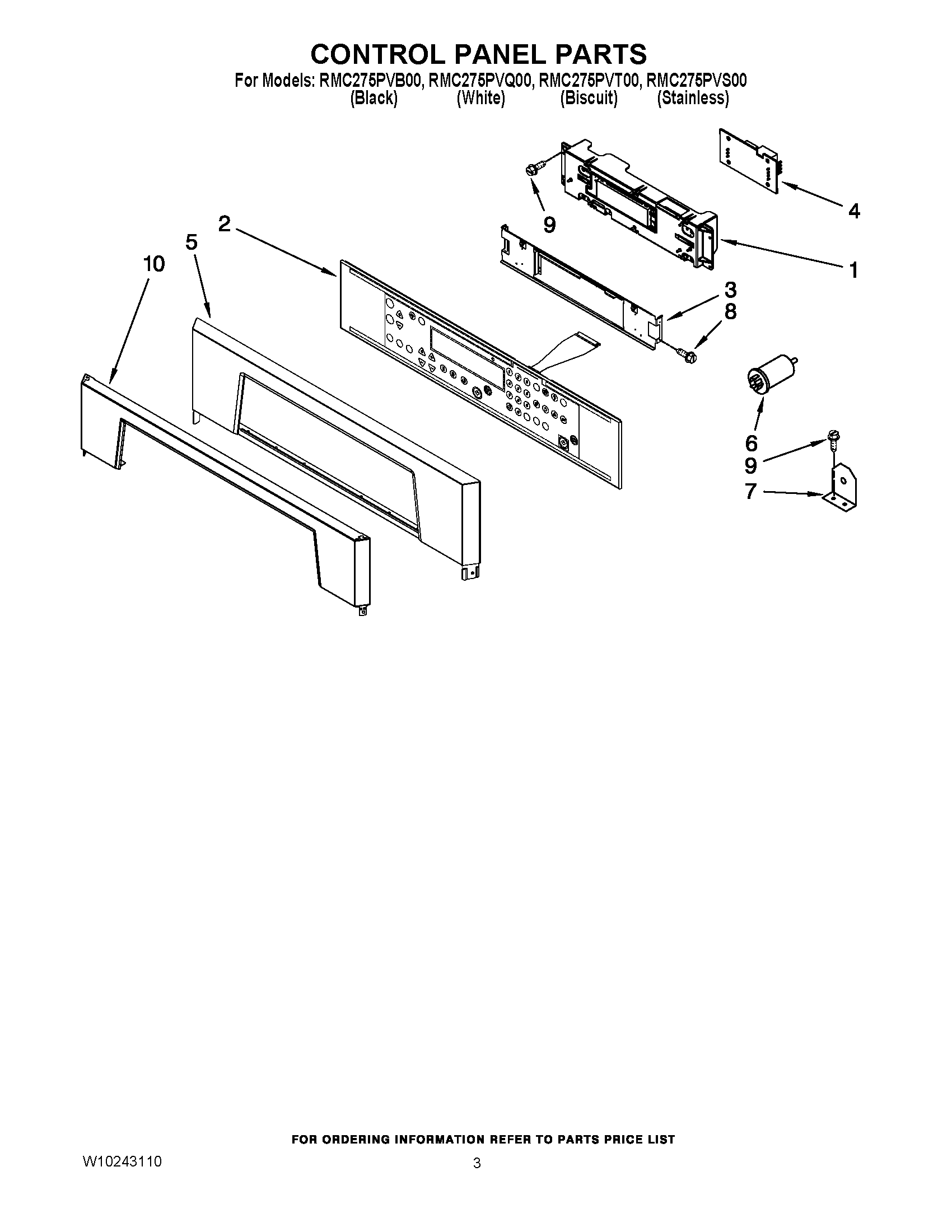

RMC275PVQ00 02 – CONTROL PANEL PARTS

RMC275PVQ00 02 – CONTROL PANEL PARTS

Written by

in

RMC275PVQ00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Assembly, Control
2Switch, Membrane (Biscuit)
2W10172474 Whirlpool Membrane Switch
2Switch, Membrane (Black)
3BACKER, CONTROL PANEL
4Latch, Sister Board
5WP8302844 Whirlpool Control Panel
5Control Panel (Biscuit Model)
5Control Panel (White Model)
6Filter
7Bracket, Filter
8WP4449745 Whirlpool Screw
9WP4449809 Whirlpool Screw
10Trim, Control Panel (Biscuit)
10Trim, Control Panel (Black)
10Trim, Control Panel (Stainless)
10Trim, Control Panel (White)
