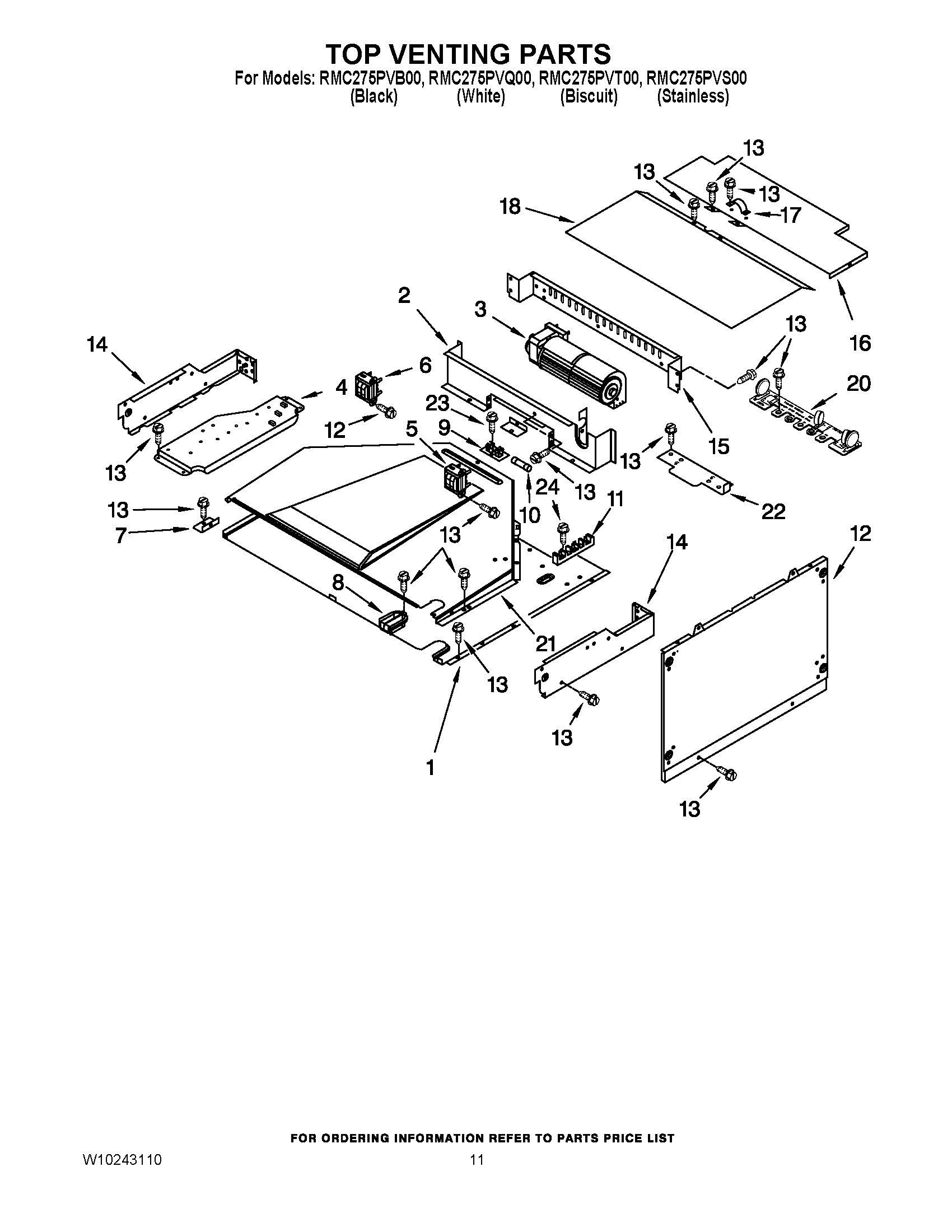

RMC275PVQ00 09 – TOP VENTING PARTS

Products

Position	Product
1	Cover, Top
2	Baffle, Blower
3	Blower
3	WPW10016550 Whirlpool Blower Cooling Fan
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Transformer
7	Bracket, Duct
8	Grommet
9	4454949 Whirlpool Oven Fuse Block
10	WPW10017410 Whirlpool Fuse
11	WP8203546 Whirlpool Terminal Block
12	Side, Combo
13	WP4449809 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	COVER, COMPARTMENT BACK
16	Cover, Top Rear
17	4448664 Whirlpool Oven Mounting Bracket
18	Cover, Top Front
20	SUPPRESSOR
21	Exhaust Duct
22	4455191 Whirlpool Oven Mounting Plate
23	WP4449154 Whirlpool Screw
24	Screw
