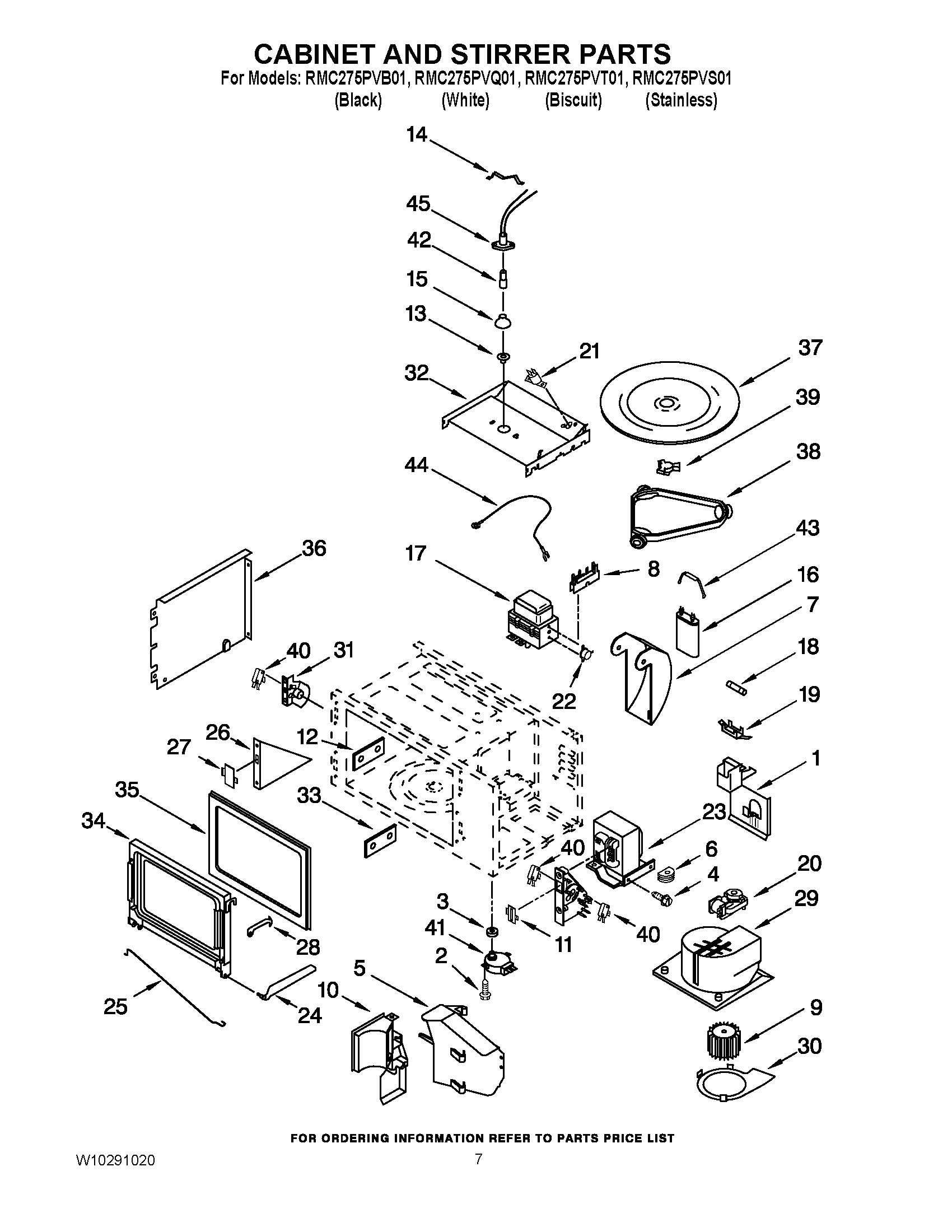

RMC275PVQ01 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	Bracket, Capacitor
2	8206180 Whirlpool Microwave Screw
3	Rubber Ring
4	Screw
5	Air Duct, Magnetron
6	Damper
7	Duct, Inlet
8	Insulation, Switch
9	Fan Wheel
10	Duct, Air
11	Block, Slide
12	Cover Plate, Upper
13	W11193483 Whirlpool Microwave Lamp Lens
14	W10465869 Whirlpool Microwave Spring
15	423107022541 Whirlpool Microwave Reflector
16	CAPACTR-MG
17	W10245183 Whirlpool Microwave Magnetron
18	WP4375321 Whirlpool Microwave Fuse
19	W10245194 Whirlpool Microwave Fuse Block
20	8186527 Whirlpool Microwave Fan Motor
21	Thermostat
22	W11233913 Whirlpool Microwave Sensor
23	WP4375286 Whirlpool Microwave Transformer
24	WP4375323 Whirlpool Microwave Door Hinge
24	WP4375324 Whirlpool Microwave Door Hinge
25	WP4451008 Whirlpool Microwave Spring
25	WP4452395 Whirlpool Spring Assembly
26	Bracket, Hinge (Right)
26	Bracket, Hinge (Left)
27	Inlet
28	Strap, Door
29	Fan Cap
30	Fan Cap Bottom
31	W10727408 Whirlpool Microwave Switch
32	Isolation Plate
33	Cover Plate
34	Plate, Door
35	Inner Frame
36	Side Plate (Right)
36	Side Plate (Left)
37	W11373838 Whirlpool Glass Tray
38	Ring, Turntable
39	WP8183788 Whirlpool Microwave Turn Shaft
40	W10211972 Whirlpool Microwave Switch
41	W10642989 Whirlpool Microwave Oven Turntable Motor
42	WPW10440740 Whirlpool Microwave Light Bulb
43	WPW10687786 Whirlpool Microwave Diode
44	Cable
45	Holder, Lamp
