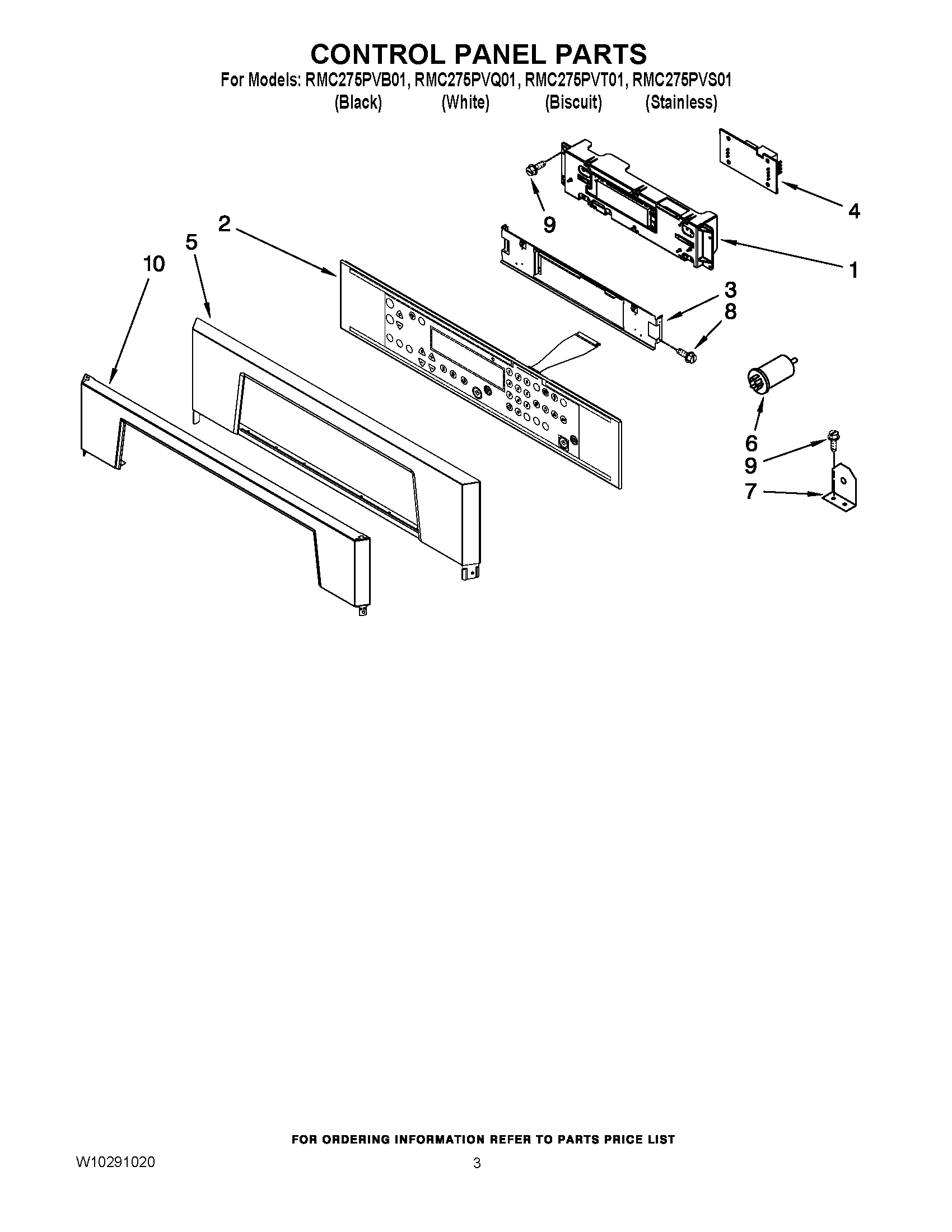

RMC275PVS01 02 – CONTROL PANEL PARTSadmin2025-04-26T12:08:18+00:00RMC275PVS01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Assembly, Control |
| 2 | Switch, Membrane (Biscuit) |
| 2 | W10172474 Whirlpool Membrane Switch |
| 2 | Switch, Membrane (Black) |
| 3 | BACKER, CONTROL PANEL |
| 4 | Latch, Sister Board |
| 5 | WP8302844 Whirlpool Control Panel |
| 5 | Control Panel (Biscuit Model) |
| 5 | Control Panel (White Model) |
| 6 | Filter |
| 7 | Bracket, Filter |
| 8 | WP4449745 Whirlpool Screw |
| 9 | WP4449809 Whirlpool Screw |
| 10 | Trim, Control Panel (Biscuit) |
| 10 | Trim, Control Panel (Black) |
| 10 | Trim, Control Panel (Stainless) |
| 10 | Trim, Control Panel (White) |
