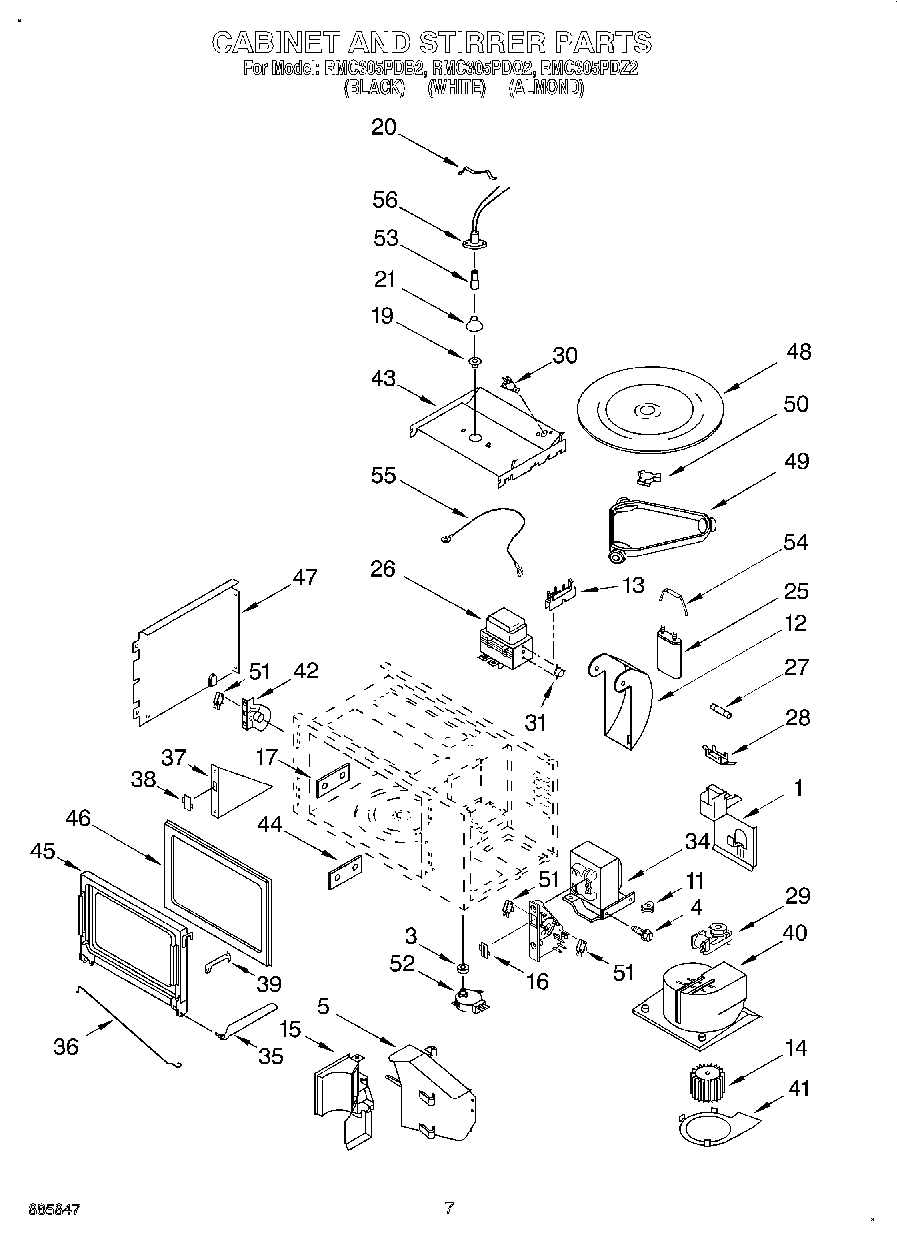

RMC305PDB2 06 – CABINET AND STIRRERadmin2025-04-26T12:09:45+00:00RMC305PDB2 06 – CABINET AND STIRRER
Products
| Position | Product |
|---|
| 1 | Bracket, Capacitor |
| 3 | Rubber Ring |
| 4 | Screw |
| 5 | Air Duct, Magnetron |
| 11 | Damper |
| 12 | Duct, Inlet |
| 13 | Insulation, Switch |
| 14 | Fan Wheel |
| 15 | Duct, Air |
| 16 | Block, Slide |
| 17 | Cover Plate, Upper |
| 19 | W11193483 Whirlpool Microwave Lamp Lens |
| 20 | W10465869 Whirlpool Microwave Spring |
| 21 | 423107022541 Whirlpool Microwave Reflector |
| 25 | WP4375020 Whirlpool High Voltage Capacitor |
| 26 | W10245183 Whirlpool Microwave Magnetron |
| 27 | WP4375321 Whirlpool Microwave Fuse |
| 28 | W10245194 Whirlpool Microwave Fuse Block |
| 29 | MOTOR-FAN |
| 30 | Thermostat |
| 31 | WP4375079 Whirlpool Microwave Thermostat |
| 34 | WP4375286 Whirlpool Microwave Transformer |
| 35 | WP4375323 Whirlpool Microwave Door Hinge |
| 35 | WP4375324 Whirlpool Microwave Door Hinge |
| 36 | WP4451009 Whirlpool Microwave Spring |
| 37 | Bracket, Hinge (Left) |
| 37 | Bracket, Hinge (Right) |
| 38 | Inlet |
| 39 | Strap, Door |
| 40 | Fan Cap |
| 41 | Fan Cap Bottom |
| 42 | W10727408 Whirlpool Microwave Switch |
| 43 | Isolation Plate |
| 44 | Cover Plate |
| 45 | Plate, Door |
| 46 | Inner Frame |
| 47 | Side Plate (Right) |
| 47 | Side Plate (Left) |
| 48 | W11373838 Whirlpool Glass Tray |
| 49 | Ring, Turntable |
| 50 | WP8183788 Whirlpool Microwave Turn Shaft |
| 51 | W10211972 Whirlpool Microwave Switch |
| 52 | W10642989 Whirlpool Microwave Oven Turntable Motor |
| 53 | WPW10440740 Whirlpool Microwave Light Bulb |
| 54 | WPW10687786 Whirlpool Microwave Diode |
| 55 | Cable |
| 56 | Holder, Lamp |
