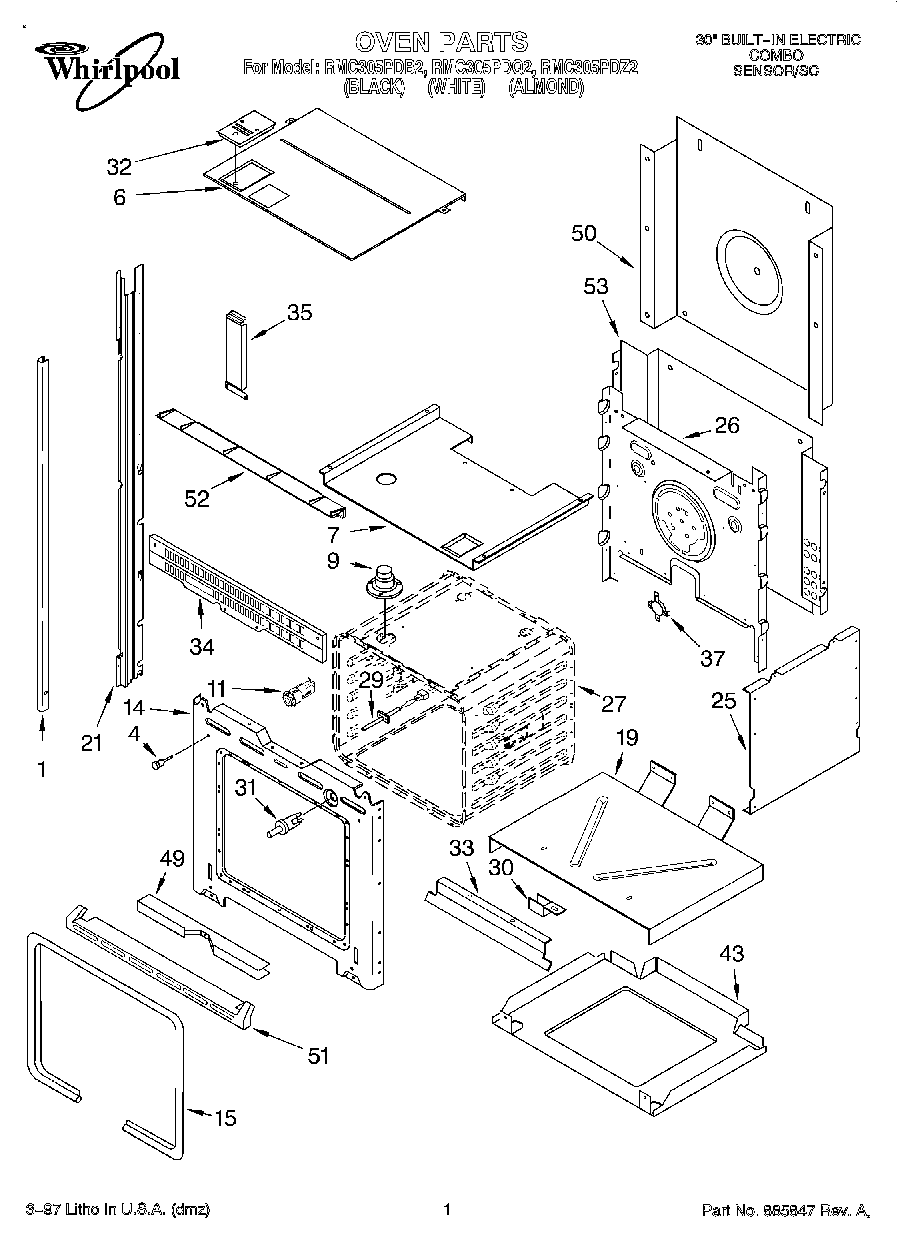

RMC305PDQ2 01 – OVEN

Products

Position	Product
1	Trim, Side (LH White)
1	Trim, Side (RH Almond)
1	Trim, Side (LH Almond)
1	Trim, Side (LH Black)
1	Trim, Side (RH White)
1	Trim, Side (RH Black)
1	Trim, Side (White)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	4449748 Whirlpool Oven Screw
11	WPW10734065 Whirlpool Light
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	814375 Whirlpool Oven Rail Mount
21	814376 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
25	Side, Chassis (R.H. & L.H.)
26	Back, Module
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
31	Switch, Door
32	Vent Box Assy
33	Deflector, Vent
34	Vent, Center
34	Trim, Bottom (Screw)
34	WP4450038 Whirlpool Screw
35	Extension Filler
37	Thermostat (TOD) (Temp.) SPST
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
50	WP4449809 Whirlpool Screw
51	Screw, (2)
51	WPL 4448862
51	WPL 4448477
51	WPL 4448478
52	Vent-Cntrl Panel
53	Chassis, Back
53	W11684730 Whirlpool Insulation
53	Insulation, Bottom
53	WPL 4450365
