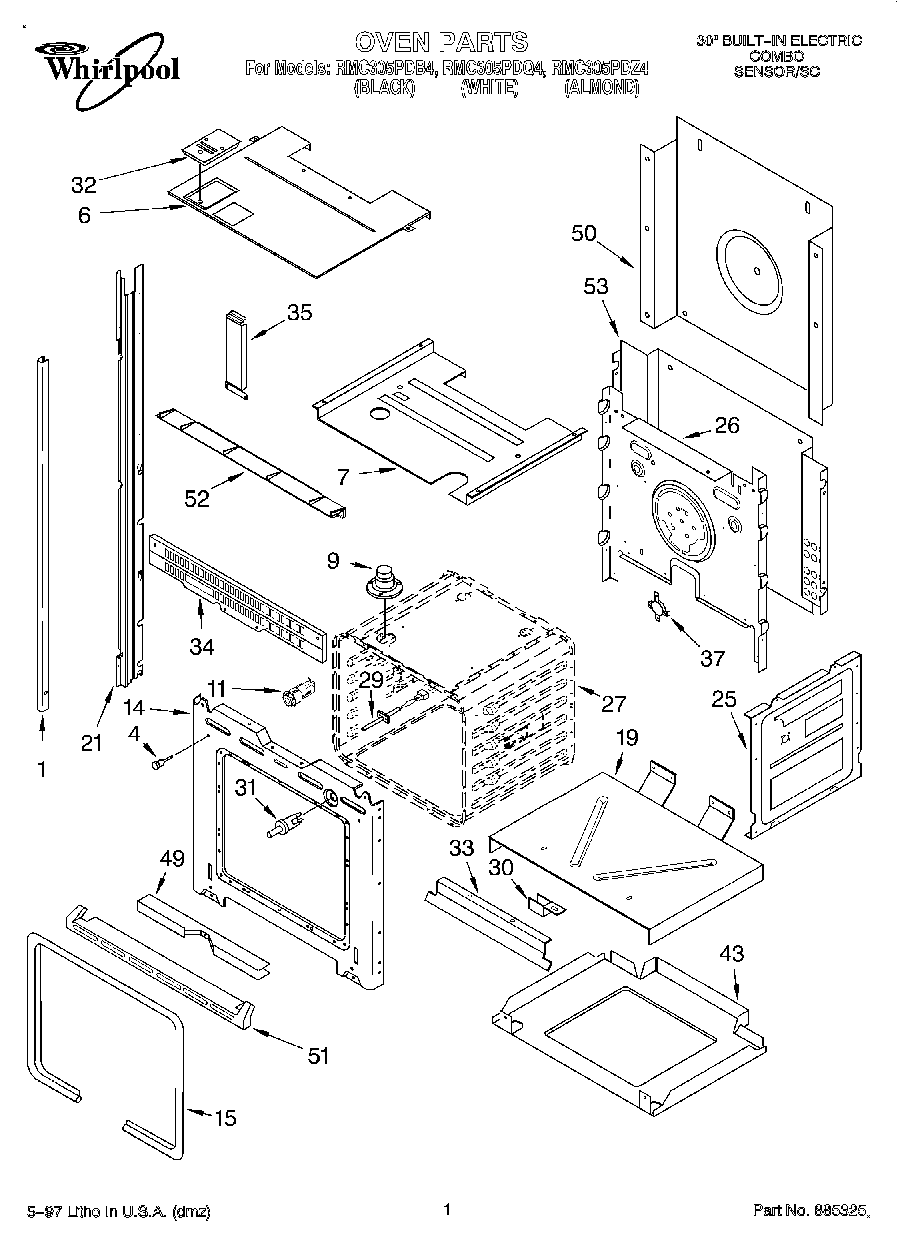

RMC305PDQ4 01 – OVEN

RMC305PDQ4 01 – OVEN

Written by

in

RMC305PDQ4 01 – OVEN

Products

PositionProduct
1Trim, Side (LH White)
1Trim, Side (RH Almond)
1Trim, Side (LH Black)
1Trim, Side (RH White)
1Trim, Side (LH Almond)
1Trim, Side (RH Black)
1Trim, Side (White)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
31Switch, Door
32Vent Box Assy
33Deflector, Vent
34WP4450038 Whirlpool Screw
34Vent, Center
35Extension Filler
37Thermostat (TOD) (Temp.) SPST
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50Cover, Back
51WPL 4448862
51Screw, (2)
51WPL 4448478
51WPL 4448477
52Vent-Cntrl Panel
53W11684730 Whirlpool Insulation
53Chassis, Back
53Insulation, Bottom
53WPL 4450365
