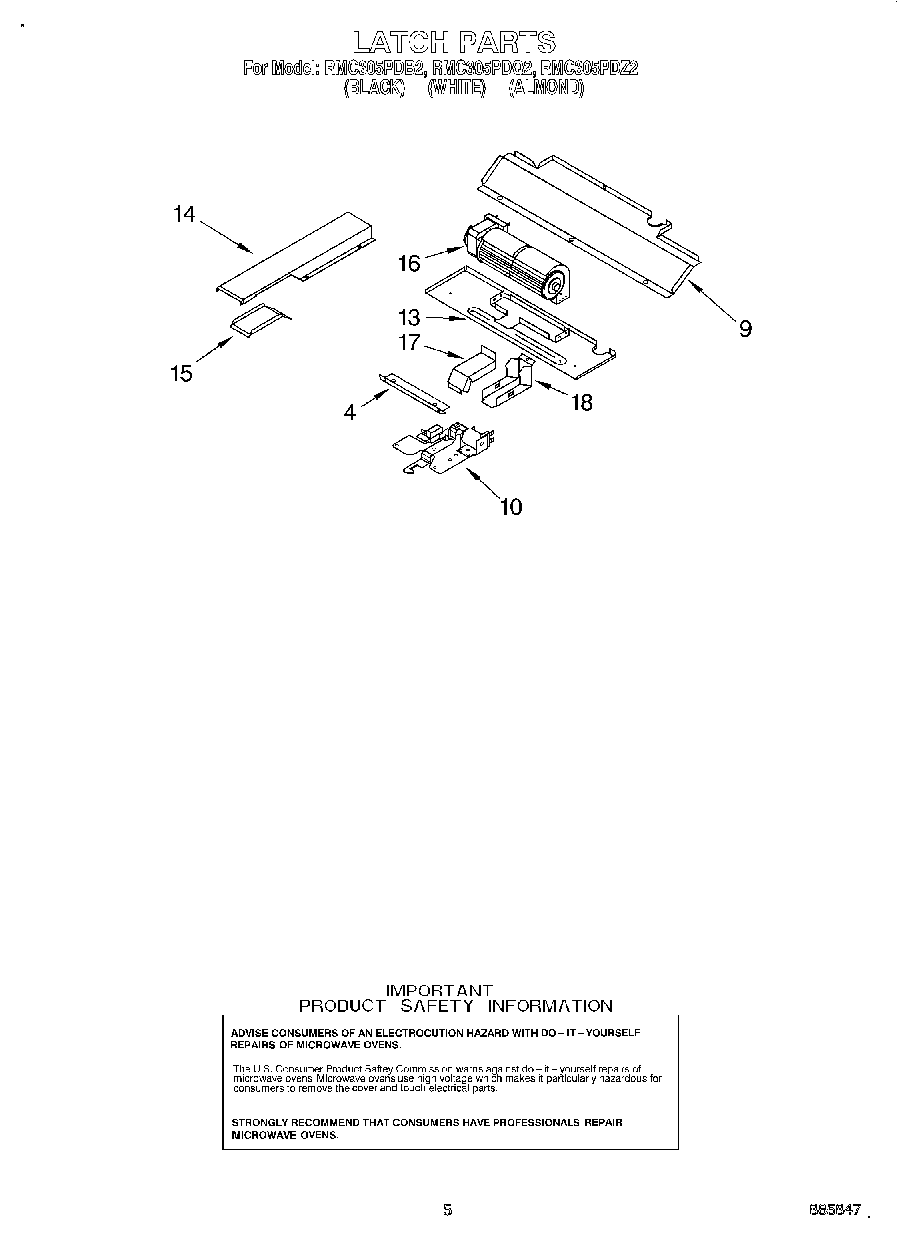

RMC305PDZ2 04 – LATCH
Products
| Position | Product |
|---|---|
| 4 | Deflector, Latch |
| 9 | WP4449154 Whirlpool Screw |
| 9 | Baffle, Rear |
| 10 | Latch Assy |
| 13 | Plate, Adapter |
| 14 | Vent, Top |
| 15 | Vent, Bottom |
| 15 | WP4449809 Whirlpool Screw |
| 16 | Blower |
| 17 | Vent, Top |
| 18 | Vent, Bottom |
