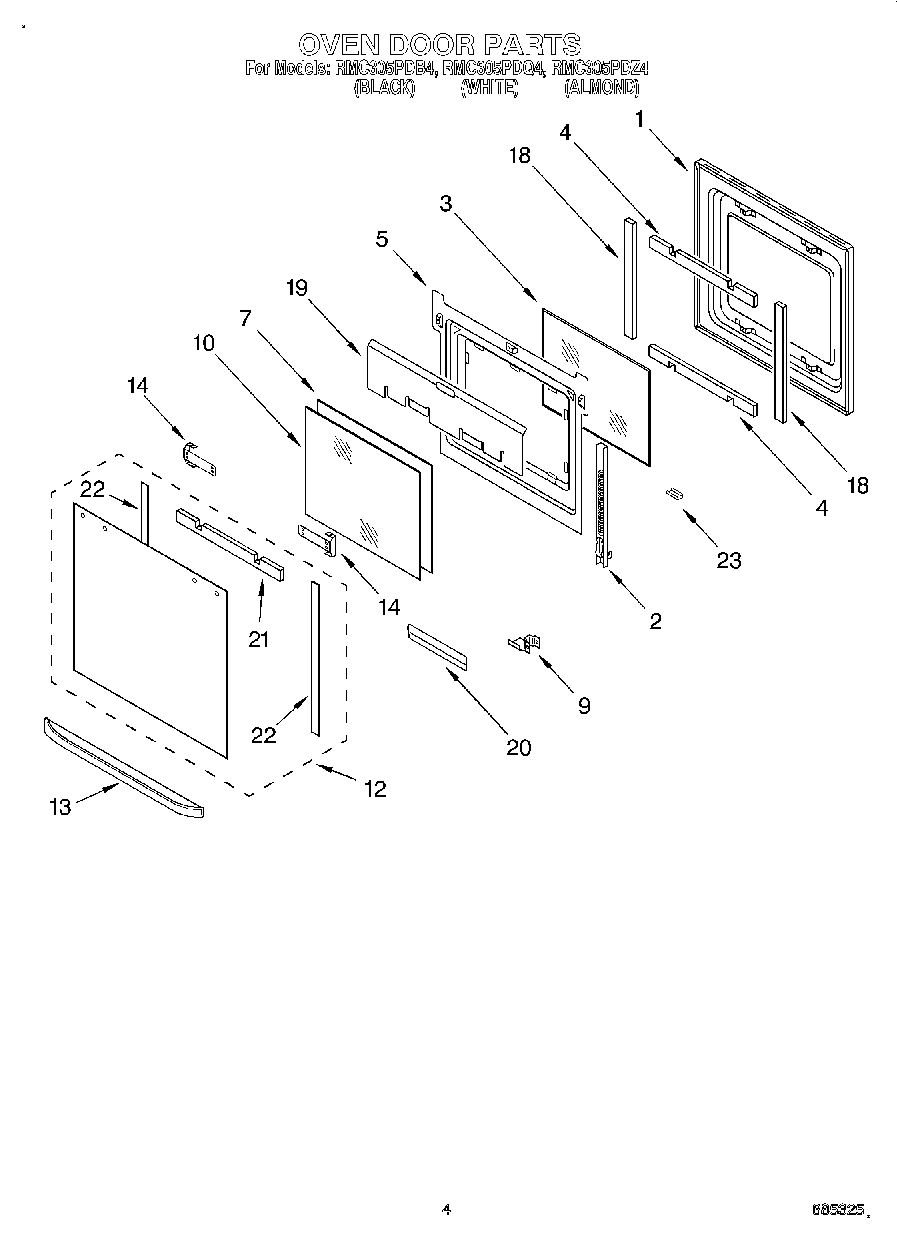

RMC305PDZ4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
3	WP4449259 Whirlpool Glass Window
4	Insulation, Top and Bottom Door
5	Retainer, Glass
9	Retainer, Glass
10	WP4449263 Whirlpool Inner Door Glass
12	Door Glass (White Model)
12	Door Glass (Almond Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (Almond Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
22	Seal, Sides
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
