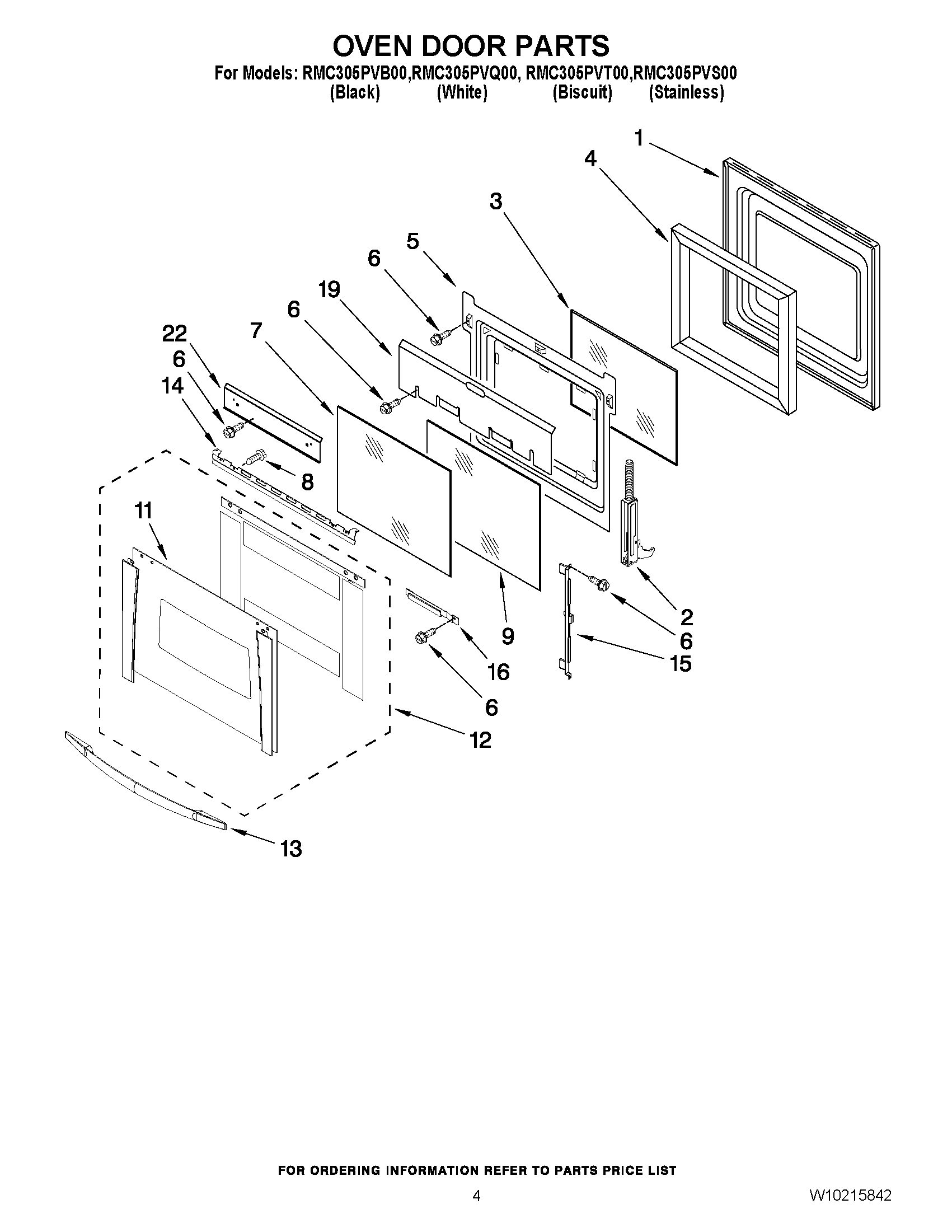

RMC305PVB00 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR
2	WP9760576 Whirlpool Door Hinge (Left)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
8	Screw
9	Glass, Inner
11	Wings (Left)
11	Wings (Right)
12	W10401225 Whirlpool Oven Outer Door Glass
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
13	Door Handle (Black)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	SHIELD, HEAT TOP
22	4457114 Whirlpool Oven Heat Shield
