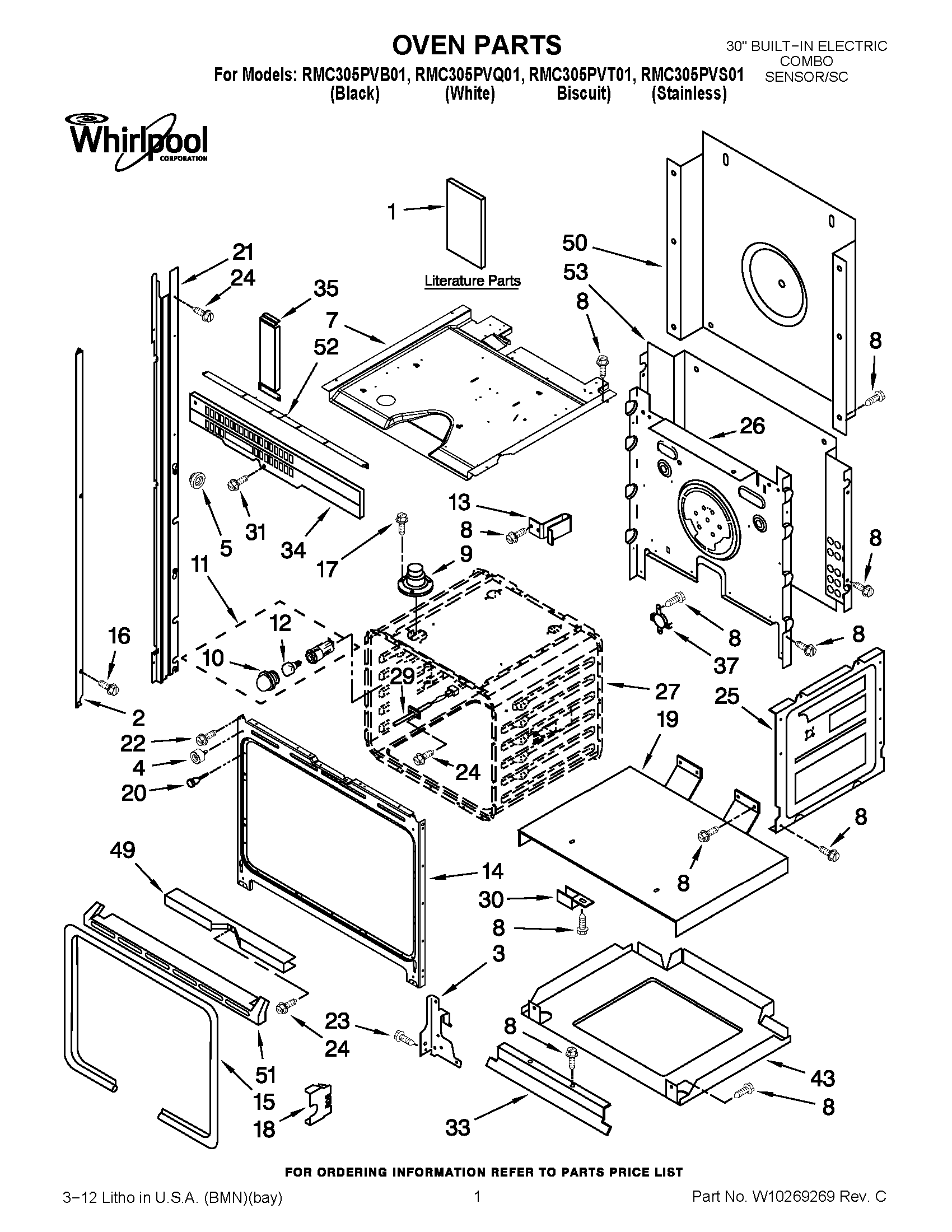

RMC305PVB01 01 – OVEN PARTS
Written by
in
RMC305PVB01 01 – OVEN PARTS
Products
Position
Product
NI
W11684730 Whirlpool Insulation
NI
WPL 4450365
1
Tech Sheet
1
Use & Care Guide (Microwave)
1
Installation Instructions
1
Use & Care Guide (Oven)
1
SAFER COOKING TIPS (ENGLISH
1
Safer Cooking Tips (French)
2
Trim, Side Left (Biscuit)
2
Trim, Side Right (Biscuit)
2
Trim, Side Right (White)
2
Trim, Side Right (Stainless)
2
Trim, Side Left (White)
2
Trim, Side Left (Black)
2
Trim, Side Right (Black)
2
Trim, Side Left (Stainless)
3
WP4455606 Whirlpool Right Hand Hinge
3
WP4455605 Whirlpool Left Hand Hinge
4
W10105790 Whirlpool Bumper
5
WP4448444 Whirlpool Grommet
7
Top Chassis
8
WP4449809 Whirlpool Screw
9
W10861715 Whirlpool Vent Tube
10
Lens, Light (2)
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
13
Bracket, Combo Chassis
14
WPW10115831 Whirlpool Front Frame
15
W11675844 Whirlpool Oven Gasket
16
WP3400832 Whirlpool Screw
17
SCREW
18
4452152 Whirlpool Oven Mounting Bracket
19
Support, Insulation
20
4448520 Whirlpool Oven Bumper
21
Rail, Side (Left Side)
21
Rail, Side (Right Side)
22
Screw
23
WP4449743 Whirlpool Screw
24
WP4449154 Whirlpool Screw
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
CABINET (NOT A SERVICEABLE PART)
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
WPL 4449845
31
WP4450038 Whirlpool Screw
33
9760677 Whirlpool Oven Vent Deflector
34
Vent, Center
35
Extension Filler
37
WP9759243 Whirlpool Thermostat
43
Base, Chassis
49
WP4448933 Whirlpool Retainer
50
WP4451747 Whirlpool Rear Cover
51
Trim, Bottom Vent (Stainless)
51
WPW10207689 Whirlpool Trim Kit
52
WPL 8303502
53
WPL 4451756
←
