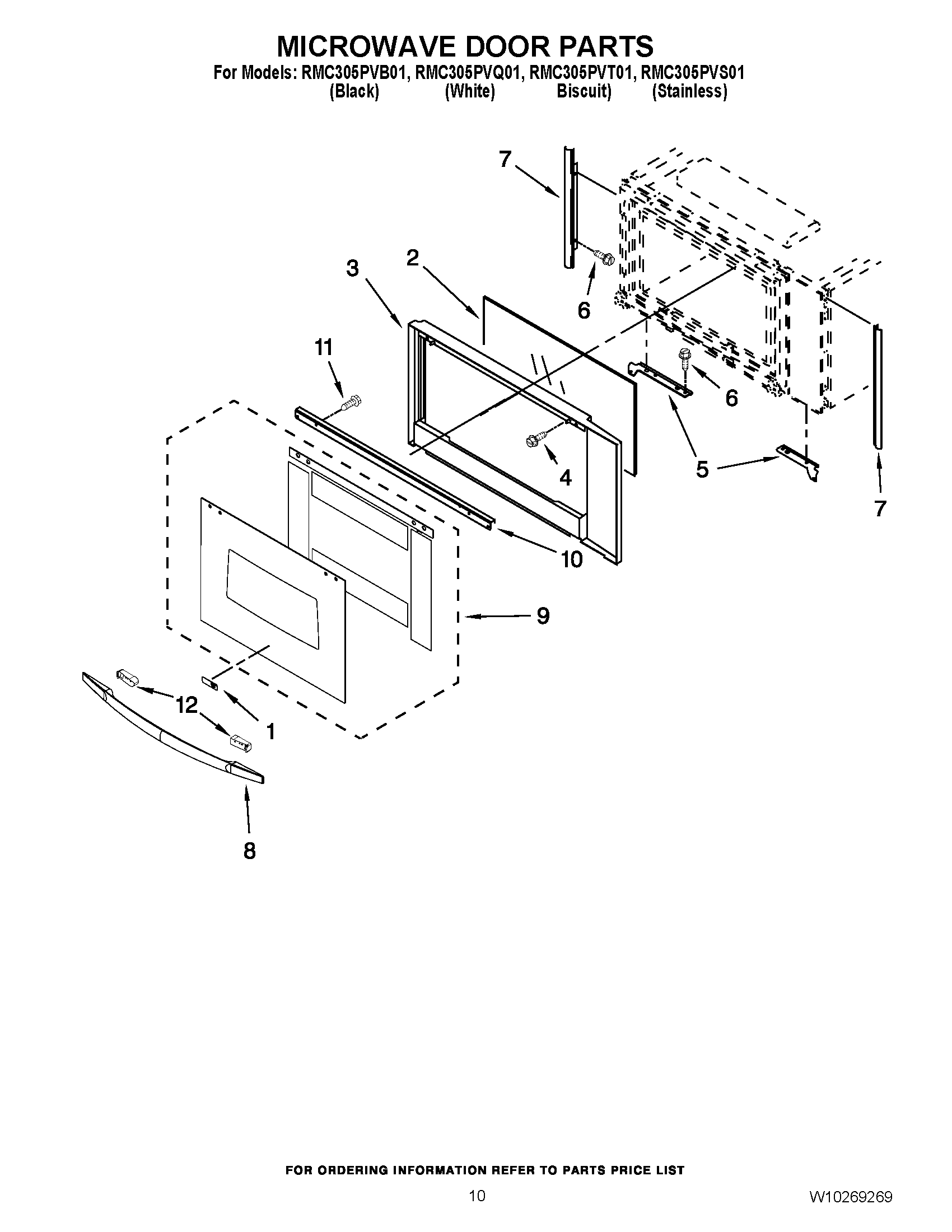

RMC305PVB01 08 – MICROWAVE DOOR PARTSadmin2025-04-26T12:47:38+00:00RMC305PVB01 08 – MICROWAVE DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Nameplate |
| 2 | Glass, Middle |
| 3 | WP8303556 Whirlpool Microwave Door Frame |
| 4 | WP4450038 Whirlpool Screw |
| 5 | Bracket, Mounting (Right Side) |
| 5 | Bracket, Mounting (Left Side) |
| 6 | WP4449809 Whirlpool Screw |
| 7 | Filler, Side |
| 7 | Filler, Side (Left Side) |
| 8 | Door Handle (Black) |
| 9 | GLASS, OUTER (WHITE) |
| 9 | WPW10199428 Whirlpool Door Glass Assembly |
| 9 | WPW10199430 Whirlpool Door Glass |
| 10 | Bracket, Handle |
| 11 | Screw |
| 12 | ENDCAP, HANDLE (BLACK) |
| 12 | ENDCAP, HANDLE (WHITE) |
| 12 | ENDCAP, HANDLE (BISCUIT) |
