RMC305PVQ00 02 – CONTROL PANEL PARTS – Aparts

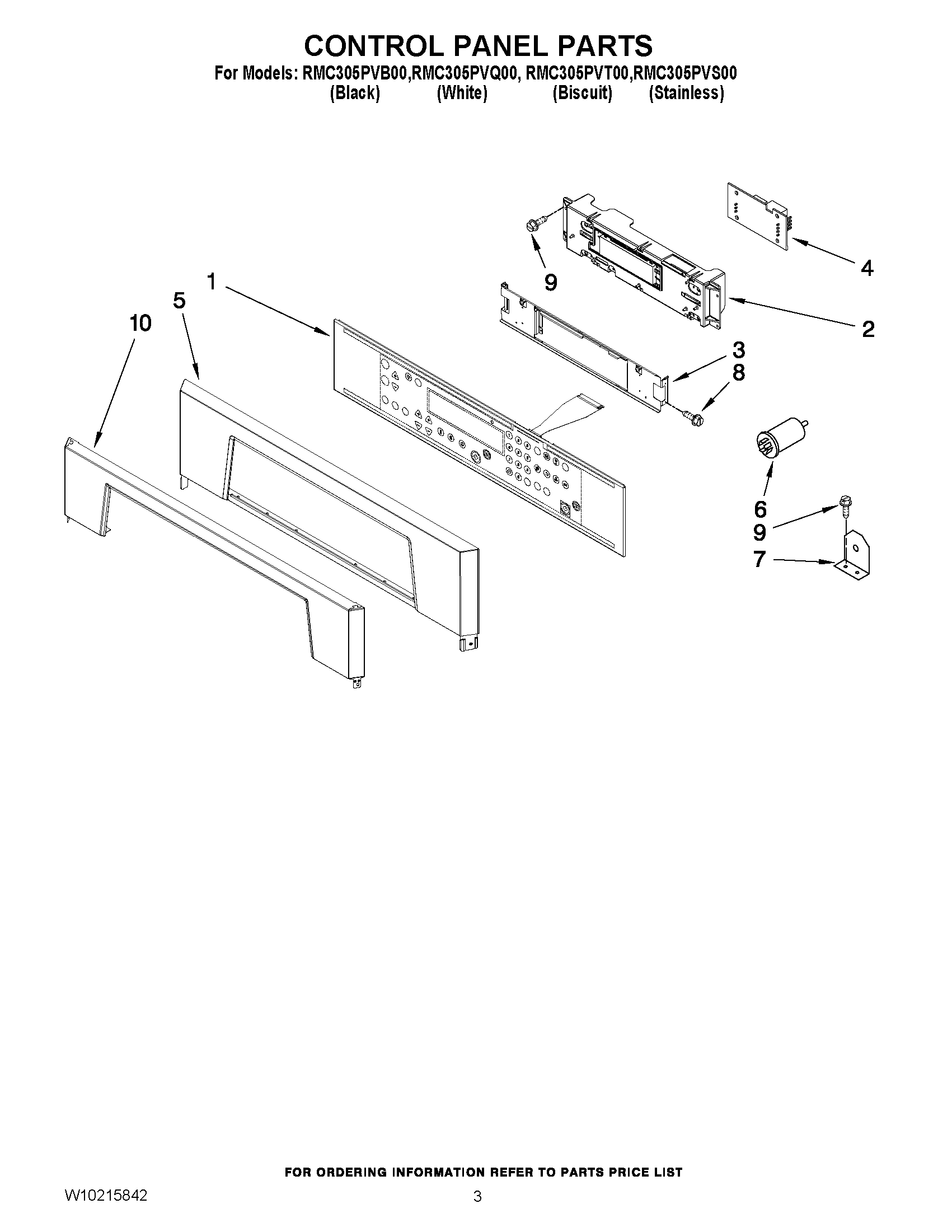

RMC305PVQ00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Switch, Membrane (Biscuit)
1	W10172474 Whirlpool Membrane Switch
1	Switch, Membrane (Black)
2	Assembly, Control
3	BACKER, CONTROL PANEL
4	Latch, Sister Board
5	WP8302848 Whirlpool Control Panel
5	Control Panel (Biscuit)
5	WP8302849 Whirlpool Control Panel
6	Filter
7	Bracket, Filter
8	WP4449745 Whirlpool Screw
9	WP4449809 Whirlpool Screw
10	Trim, Control Panel (Biscuit)
10	WPW10172165 Whirlpool Trim Panel
10	WPW10172167 Whirlpool Trim Panel
10	Trim, Control Panel (White)
