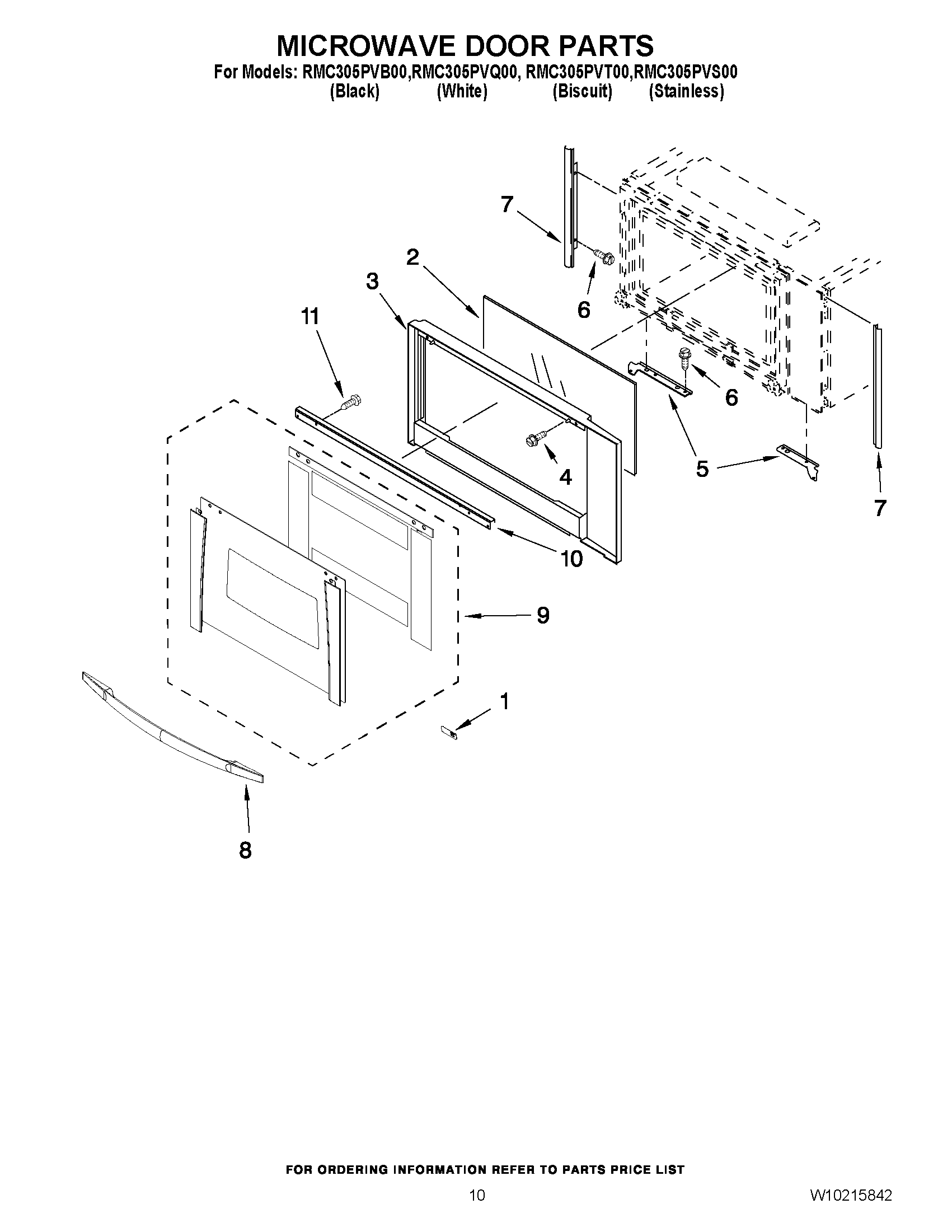

RMC305PVQ00 08 – MICROWAVE DOOR PARTS

Products

Position	Product
1	NAMEPLATE
2	Glass, Middle
3	WP8303556 Whirlpool Microwave Door Frame
4	WP4450038 Whirlpool Screw
5	Bracket, Mounting (Right Side)
5	Bracket, Mounting (Left Side)
6	WP4449809 Whirlpool Screw
7	Filler, Side (Left Side)
7	Filler, Side
8	Door Handle (Black)
9	WPW10199428 Whirlpool Door Glass Assembly
9	GLASS, OUTER (STAINLESS)
9	GLASS, OUTER (WHITE)
9	WPW10199430 Whirlpool Door Glass
10	Bracket, Handle
11	Screw
