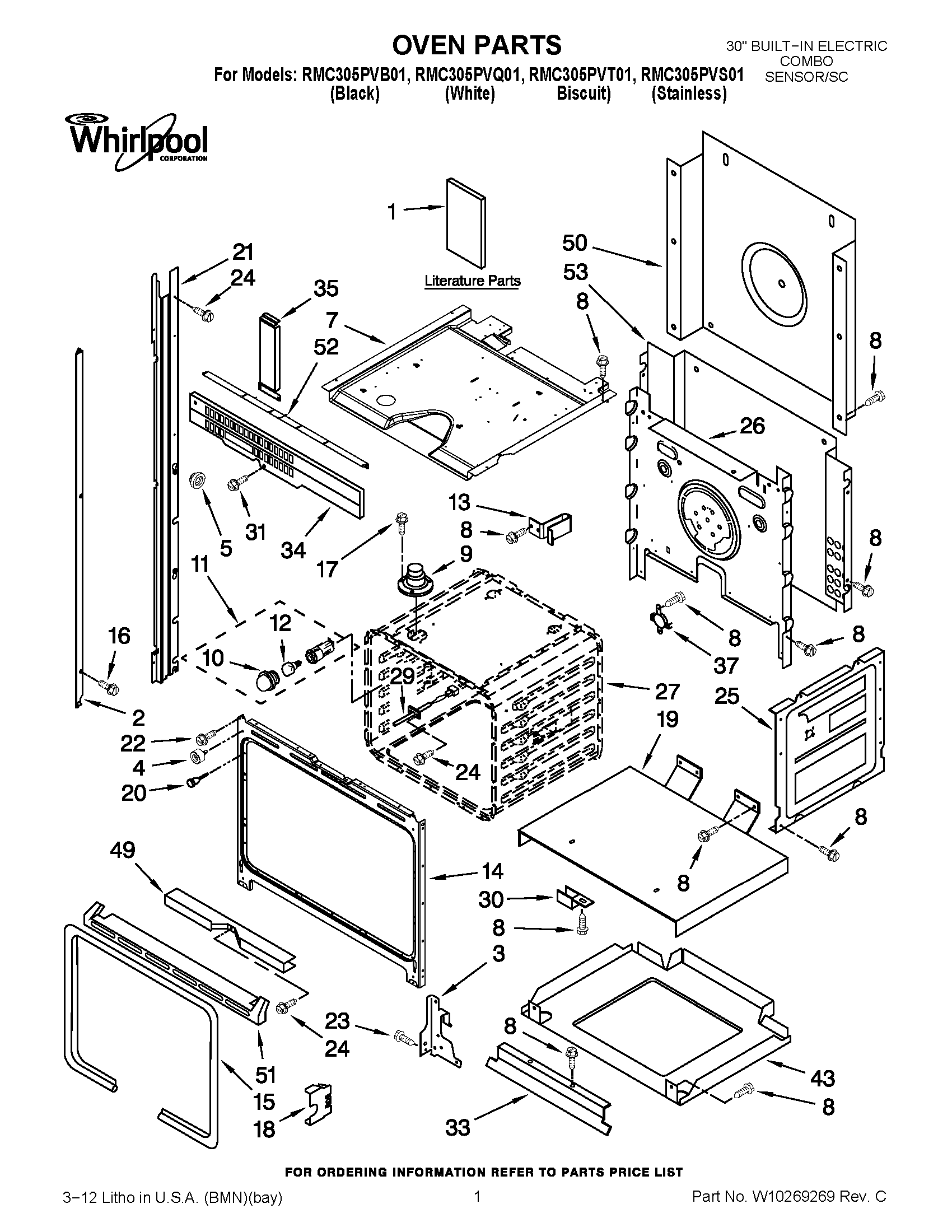

RMC305PVQ01 01 – OVEN PARTS

Products

Position	Product
NI	W11684730 Whirlpool Insulation
NI	WPL 4450365
1	Tech Sheet
1	Use & Care Guide (Microwave)
1	Installation Instructions
1	Use & Care Guide (Oven)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
2	Trim, Side Left (Biscuit)
2	Trim, Side Right (Biscuit)
2	Trim, Side Right (White)
2	Trim, Side Right (Stainless)
2	Trim, Side Left (White)
2	Trim, Side Left (Black)
2	Trim, Side Right (Black)
2	Trim, Side Left (Stainless)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4448444 Whirlpool Grommet
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Bracket, Combo Chassis
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP3400832 Whirlpool Screw
17	SCREW
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	4448520 Whirlpool Oven Bumper
21	Rail, Side (Left Side)
21	Rail, Side (Right Side)
22	Screw
23	WP4449743 Whirlpool Screw
24	WP4449154 Whirlpool Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WPL 4449845
31	WP4450038 Whirlpool Screw
33	9760677 Whirlpool Oven Vent Deflector
34	Vent, Center
35	Extension Filler
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom Vent (Stainless)
51	WPW10207689 Whirlpool Trim Kit
52	WPL 8303502
53	WPL 4451756
