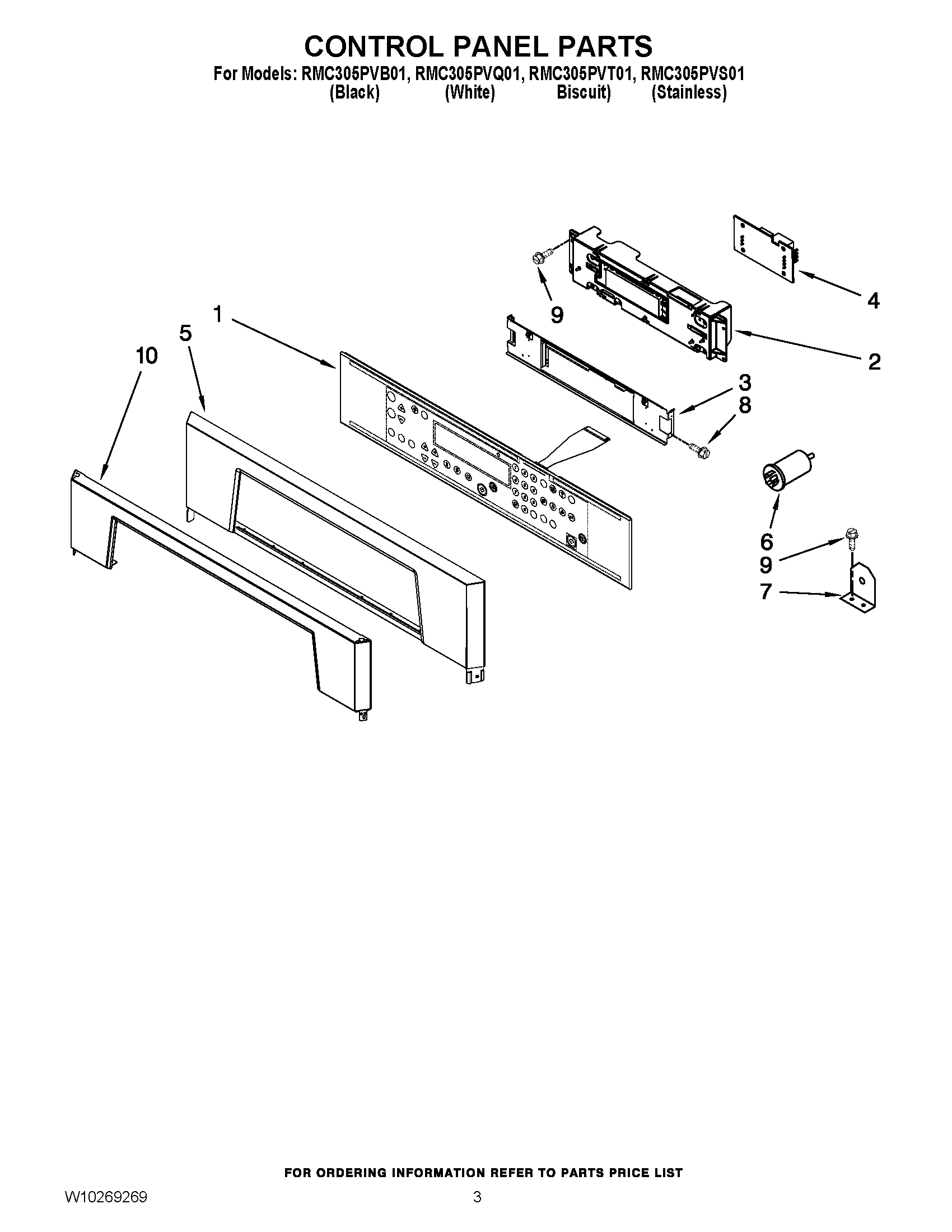

RMC305PVQ01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Switch, Membrane (Biscuit)
1W10172474 Whirlpool Membrane Switch
1Switch, Membrane (Black)
2Assembly, Control
3BACKER, CONTROL PANEL
4Latch, Sister Board
5WP8302848 Whirlpool Control Panel
5Control Panel (Biscuit)
5WP8302849 Whirlpool Control Panel
6Filter
7Bracket, Filter
8WP4449745 Whirlpool Screw
9WP4449809 Whirlpool Screw
10Trim, Control Panel (Biscuit)
10WPW10172165 Whirlpool Trim Panel
10WPW10172167 Whirlpool Trim Panel
10Trim, Control Panel (White)
