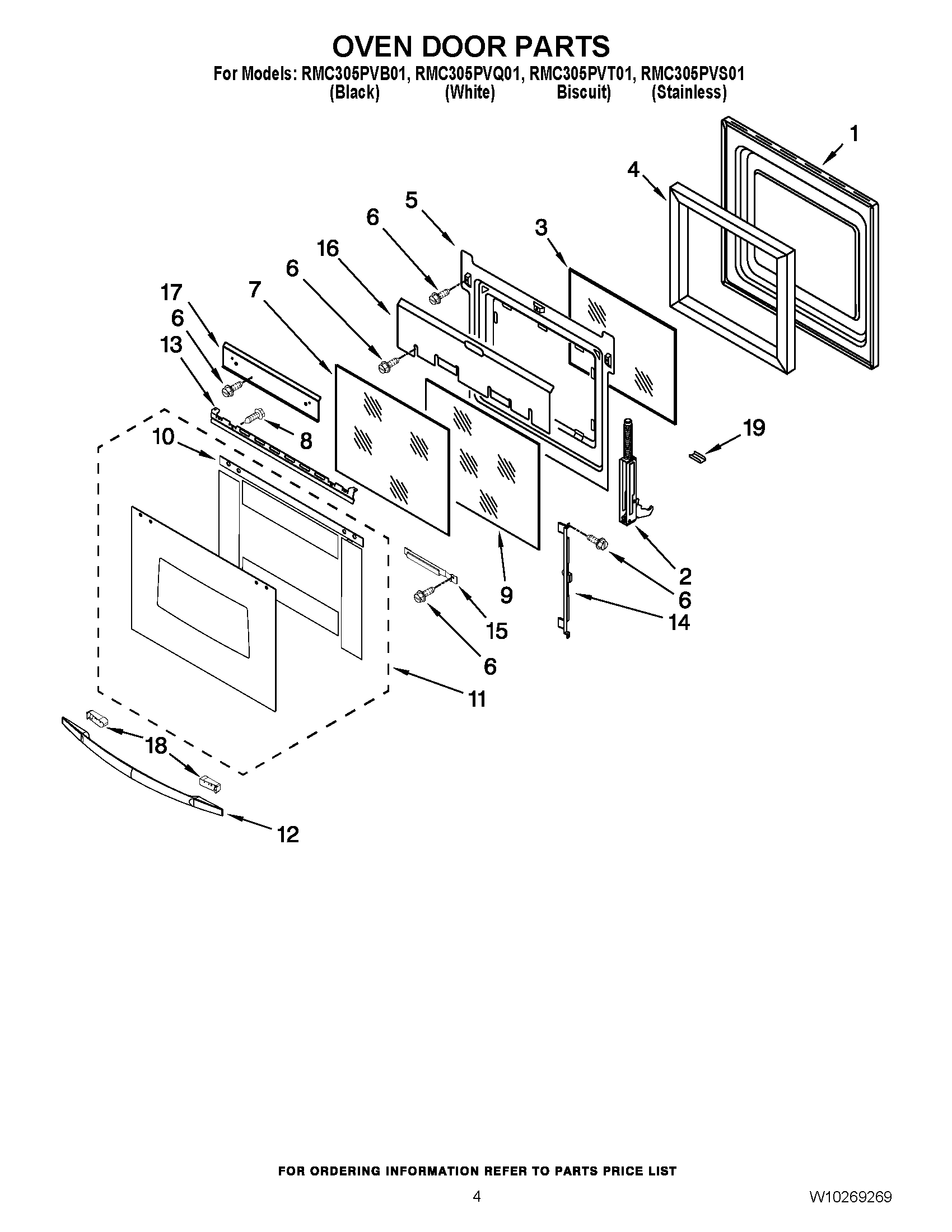

RMC305PVS01 03 – OVEN DOOR PARTS

RMC305PVS01 03 – OVEN DOOR PARTS

Written by

in

RMC305PVS01 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760576 Whirlpool Door Hinge (Left)
2Hinge, Door (For Stainless Model Only) (Right)
2HINGE-DOOR
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6WP4449809 Whirlpool Screw
7WP9759225 Whirlpool Inner Door Glass
8WP4449743 Whirlpool Screw
9Glass, Inner
10Seal, Door Top
11Assembly, Door Glass (Black)
11W10401225 Whirlpool Oven Outer Door Glass
11Assembly, Door Glass (Biscuit)
11Assembly, Door Glass (White)
12Door Handle (White)
12Door Handle (Black)
12Door Handle (Stainless)
12Door Handle (Biscuit)
134455803 Whirlpool Oven Bracket
13Bracket, Handle (L.Hand)
14WP9759229 Whirlpool Mounting Bracket
15Bracket (3rd Glsss)
16SHIELD, HEAT TOP
174457114 Whirlpool Oven Heat Shield
18ENDCAP, HANDLE (BLACK)
18ENDCAP, HANDLE (WHITE)
18ENDCAP, HANDLE (BISCUIT)
19RETAINER, CLIP (WHITE)
19CLIP, RETAINER (BISCUIT)
19RETAINER, CLIP (BLACK)
19Retainer, Clip (Stainless)
