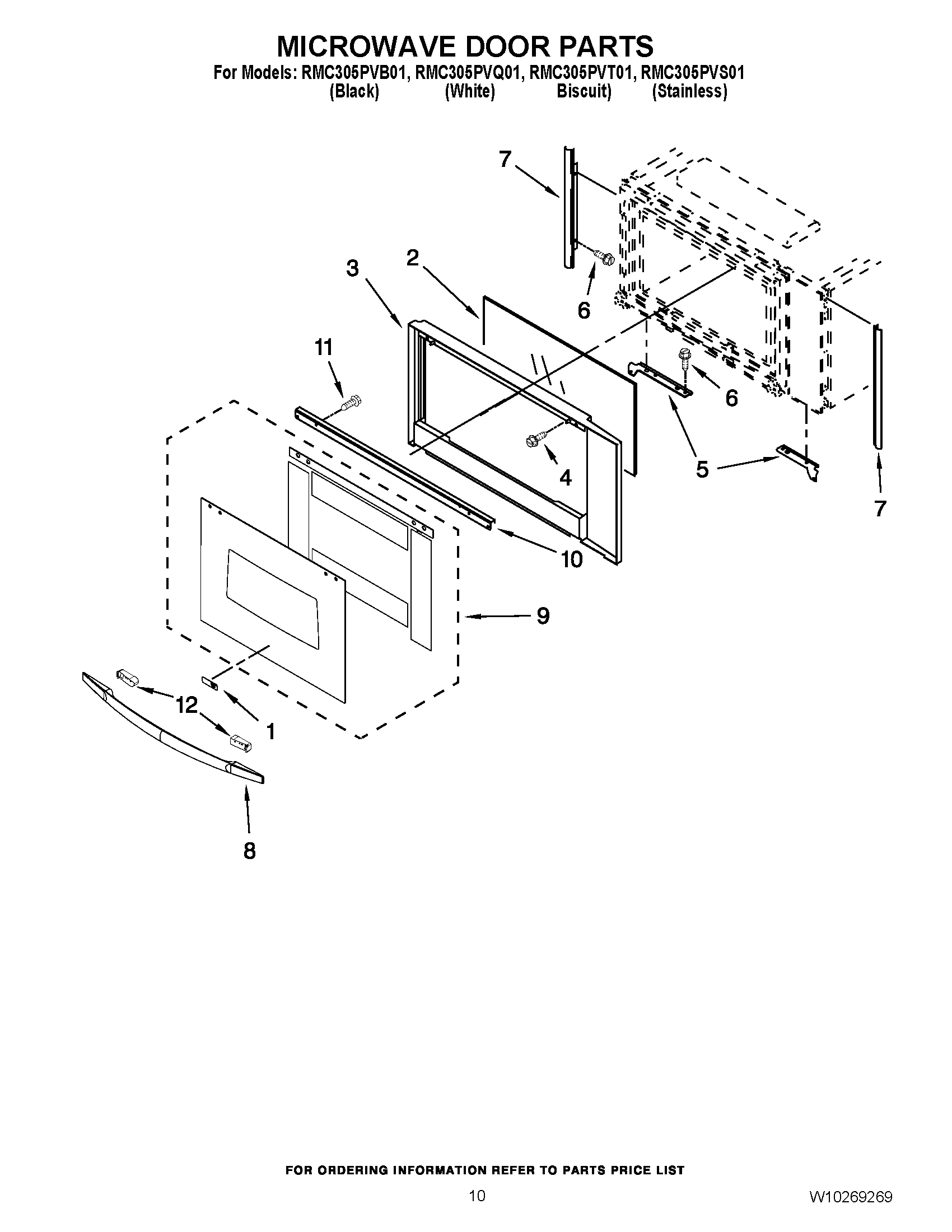

RMC305PVS01 08 – MICROWAVE DOOR PARTS

Products

Position	Product
1	Nameplate
2	Glass, Middle
3	WP8303556 Whirlpool Microwave Door Frame
4	WP4450038 Whirlpool Screw
5	Bracket, Mounting (Right Side)
5	Bracket, Mounting (Left Side)
6	WP4449809 Whirlpool Screw
7	Filler, Side
7	Filler, Side (Left Side)
8	Door Handle (Black)
9	GLASS, OUTER (WHITE)
9	WPW10199428 Whirlpool Door Glass Assembly
9	WPW10199430 Whirlpool Door Glass
10	Bracket, Handle
11	Screw
12	ENDCAP, HANDLE (BLACK)
12	ENDCAP, HANDLE (WHITE)
12	ENDCAP, HANDLE (BISCUIT)
