RMC305PVT00 01 – OVEN PARTS

RMC305PVT00 01 – OVEN PARTS

Written by

in

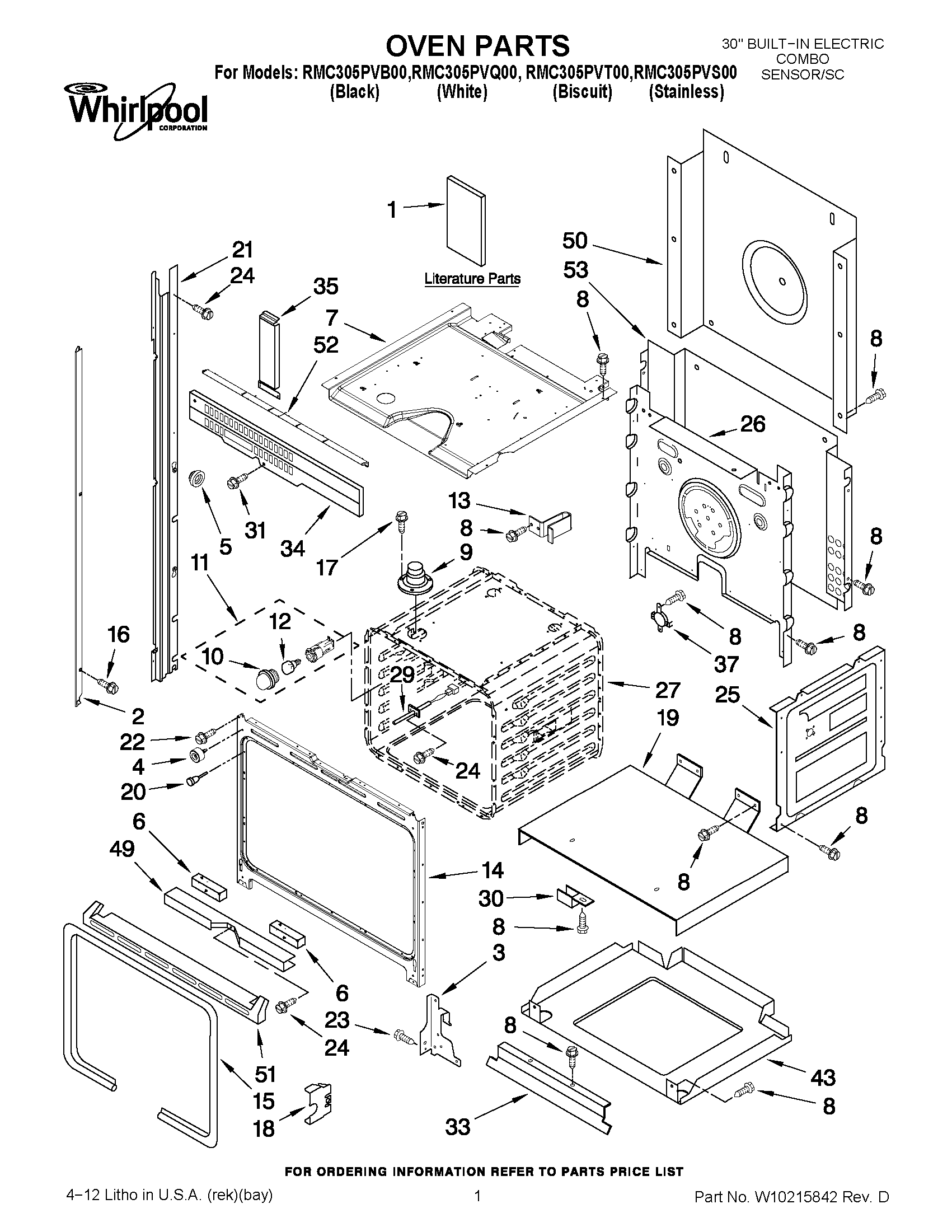

RMC305PVT00 01 – OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NIWPL 4450365
1Tech Sheet
1Use & Care Guide (Microwave)
1Installation Instructions
1Use & Care Guide (Oven)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Trim, Side Left (Black)
2Trim, Side Left (Biscuit)
2Trim, Side Right (Biscuit)
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side Right (Black)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WP4448444 Whirlpool Grommet
6Spacer, Foam
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Bracket, Combo Chassis
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16WP3400832 Whirlpool Screw
17SCREW
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
204448520 Whirlpool Oven Bumper
21Rail, Side (Left Side)
21Rail, Side (Right Side)
22Screw
23WP4449743 Whirlpool Screw
24WP4449154 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4450038 Whirlpool Screw
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35Extension Filler
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPW10207689 Whirlpool Trim Kit
51Trim, Bottom Vent (Stainless)
52WPL 8303502
53WPL 4451756
