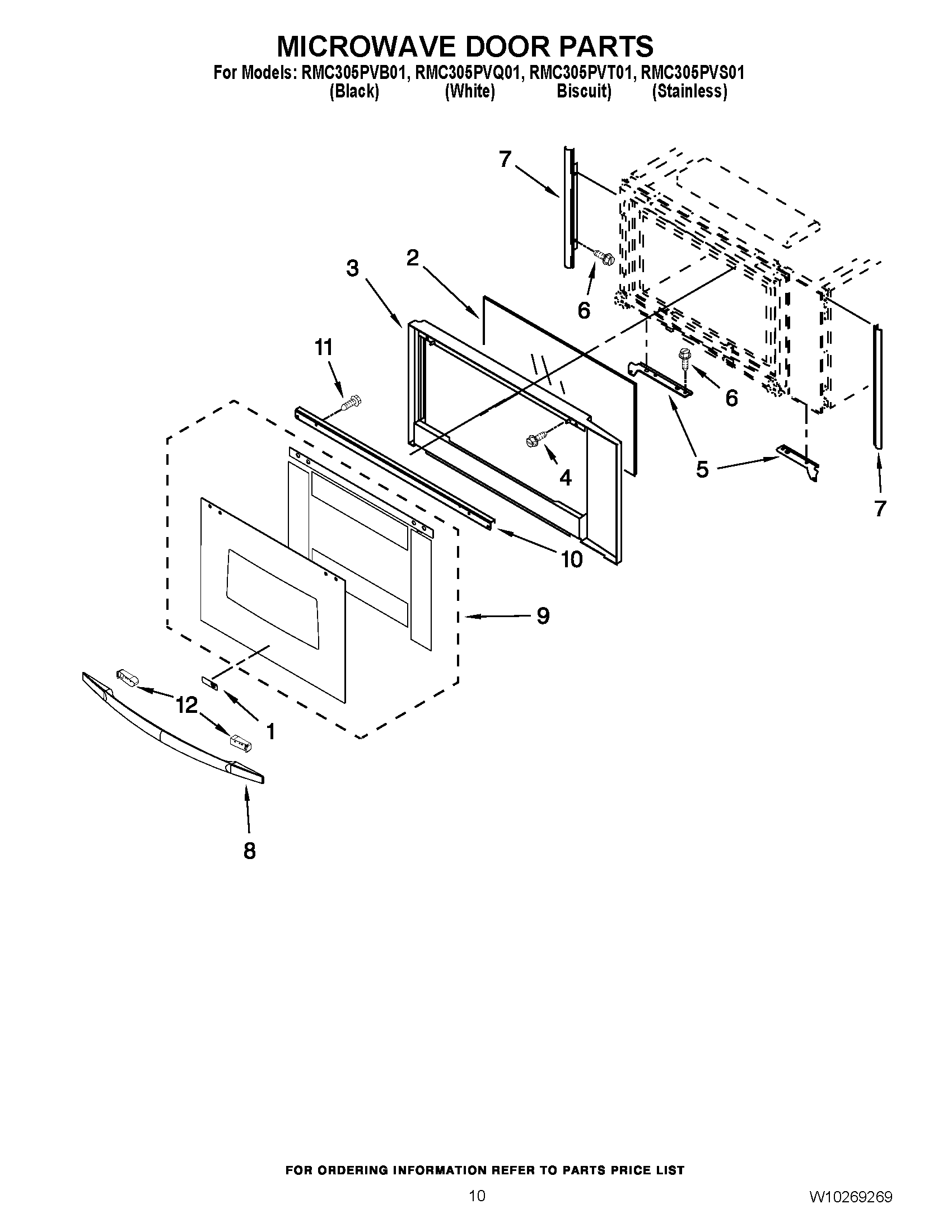

RMC305PVT01 08 – MICROWAVE DOOR PARTS

RMC305PVT01 08 – MICROWAVE DOOR PARTS

Written by

in

RMC305PVT01 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
1Nameplate
2Glass, Middle
3WP8303556 Whirlpool Microwave Door Frame
4WP4450038 Whirlpool Screw
5Bracket, Mounting (Right Side)
5Bracket, Mounting (Left Side)
6WP4449809 Whirlpool Screw
7Filler, Side
7Filler, Side (Left Side)
8Door Handle (Black)
9GLASS, OUTER (WHITE)
9WPW10199428 Whirlpool Door Glass Assembly
9WPW10199430 Whirlpool Door Glass
10Bracket, Handle
11Screw
12ENDCAP, HANDLE (BLACK)
12ENDCAP, HANDLE (WHITE)
12ENDCAP, HANDLE (BISCUIT)
