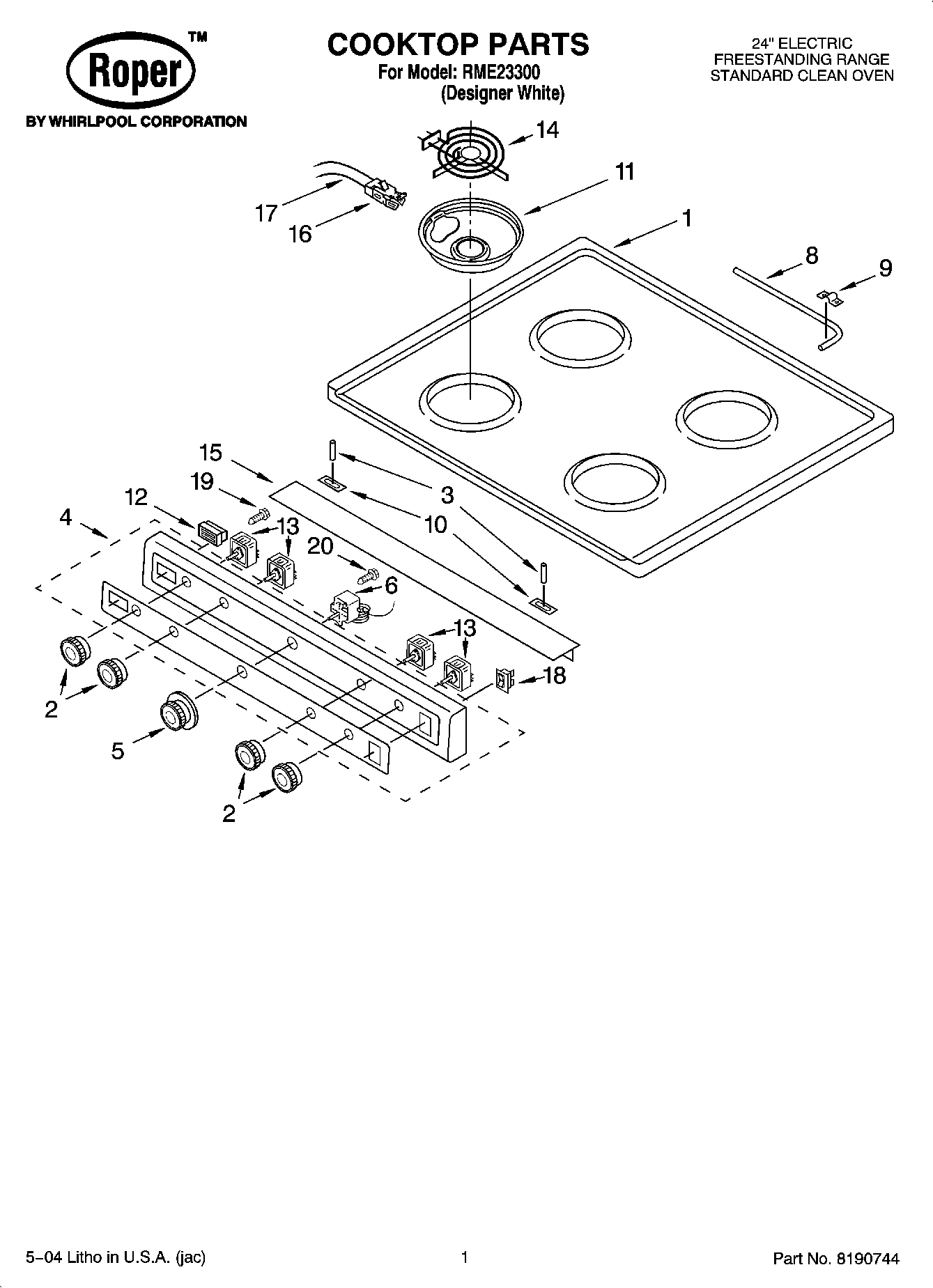

RME23300 01 – COOKTOP PARTS

Products

PositionProduct
1Cooktop
2Knob, Burner (4)
3Strike Pin W/Nut
4Panel, Manifold (Includes Inlay)
5Knob, Thermostat
6Thermostat
8Rod, Support
9Clip, Rod Support
10CATCH, STRIKEPIN
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12Indicator, Surf/Ov
13Switch, Infinite (Use W/6“ Element)
13WPW10197681 Whirlpool Oven Infinite Switch
14WPW10345407 Whirlpool Surface Element
14W10345409 Whirlpool Surface Element
15Cover, Switch
15Screw, 8-18 x 3/8
16Screw, 6-32 x 1/4
16Brkt, Receptacle
17Receptacle, Elmnt (Includes Wires) (Red (Left Front))
17Receptacle, Elmnt (Includes Wires) (Black (Rt. Rear))
17Receptacle, Elmnt (Includes Wires) (Blue (Left Rear))
17Receptacle, Elmnt (Includes Wires) (Yellow (Rt. Front))
18Switch, Oven Light
19Screw
20WP313808 Whirlpool Screw
