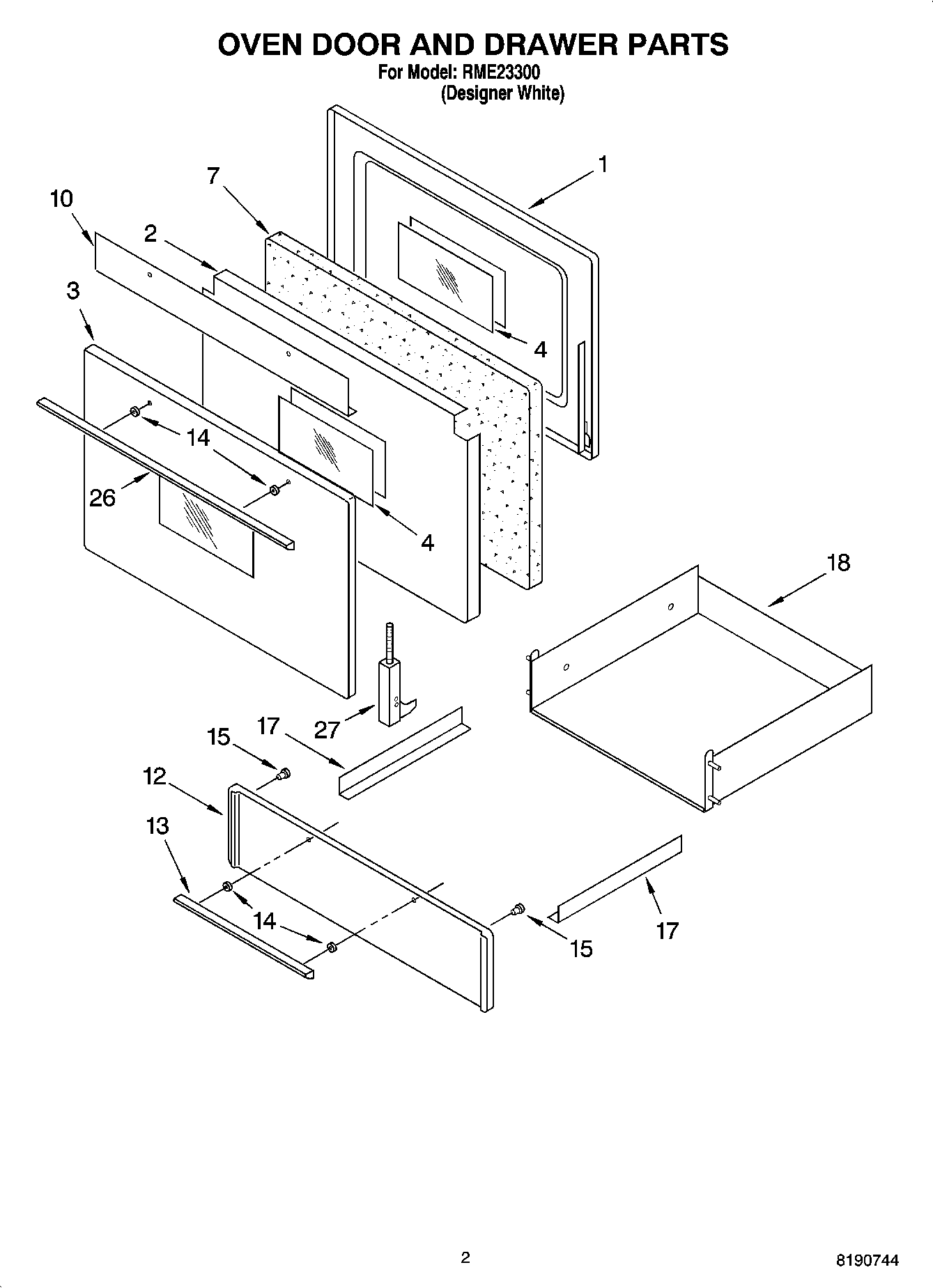

RME23300 02 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
1Liner, Door
2Retainer, Insul
3Panel, Oven Door
4Glass, Window
7Insulation, Door
10Shield, Heat
12Panel, Drawer
13Handle, Drawer
14Screw, 10-24 x 3/8
14Spacer, Handle
15Bumper, Drawer
17RUNNER, DRAWER (LEFT)
17RUNNER, DRAWER (RIGHT)
18Body, Drawer
26Handle, Oven Door
26Screw, Handle
27Hinge, Oven Door
