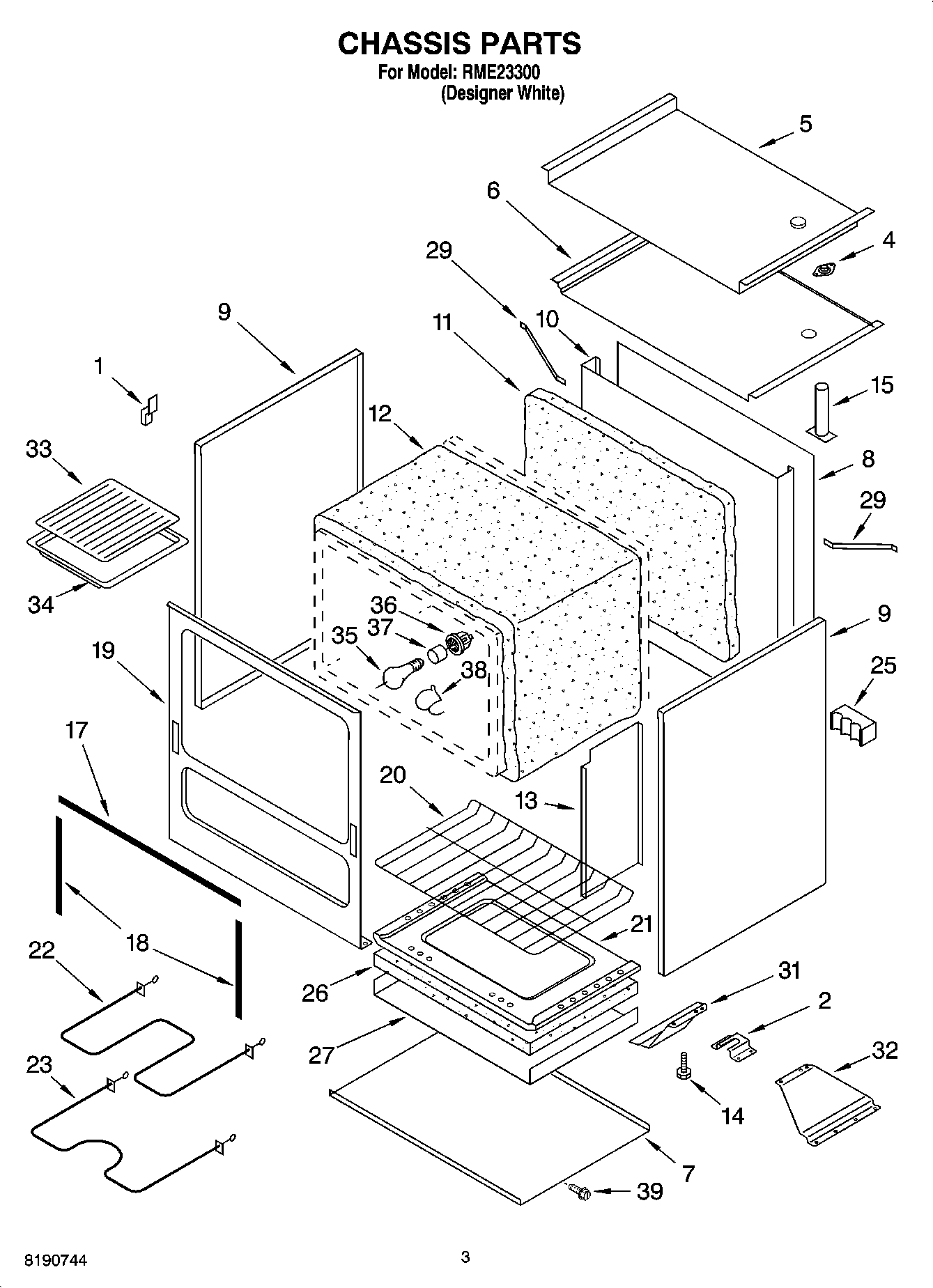

RME23300 03 – CHASSIS PARTSadmin2025-04-26T12:51:27+00:00RME23300 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | CLIP, THERMOBULB |
| 2 | 8190785 Whirlpool Oven Bracket |
| 4 | 4364176 Whirlpool Limit Switch |
| 5 | Bottom, Upper Box |
| 6 | Bottom, Lower Box |
| 6 | Screw, 10 x 1/2 |
| 7 | Screw, 8 x 1/2 |
| 7 | Bottom, Main |
| 8 | Cover, Rear |
| 9 | Panel, Side |
| 10 | Back, Main |
| 12 | Insulation, Wrap |
| 13 | Baffle, Heat |
| 14 | LEG, LEVELER |
| 15 | Vent, Oven Tube |
| 17 | Gasket, Oven Top |
| 18 | Gasket, Oven Side |
| 19 | Frame, Front |
| 20 | Rack, Oven |
| 21 | Bottom, Oven |
| 22 | Element, Broil |
| 23 | Element, Bake |
| 23 | Screw, 8-18 x 3/8 |
| 25 | Screw, 8A x 1 |
| 25 | Hex Nut, 10-32 |
| 25 | WPW10245259 Whirlpool Terminal Block |
| 26 | Insulation, Bottom |
| 27 | Retainer, Bottom |
| 29 | Brace, Back |
| 29 | Screw, 10-12 x 1/2 |
| 31 | Support, Side (Right) |
| 32 | Support, Side (Left) |
| 33 | Grill, Broiler |
| 34 | Pan, Broiler |
| 35 | RANGE ONLY 40W 120V APPL BULB |
| 36 | RECEPTACLE, LIGHT |
| 37 | Ring, Oven Light |
| 38 | Guard, Oven Light |
| 39 | Screw, Shoulder |
