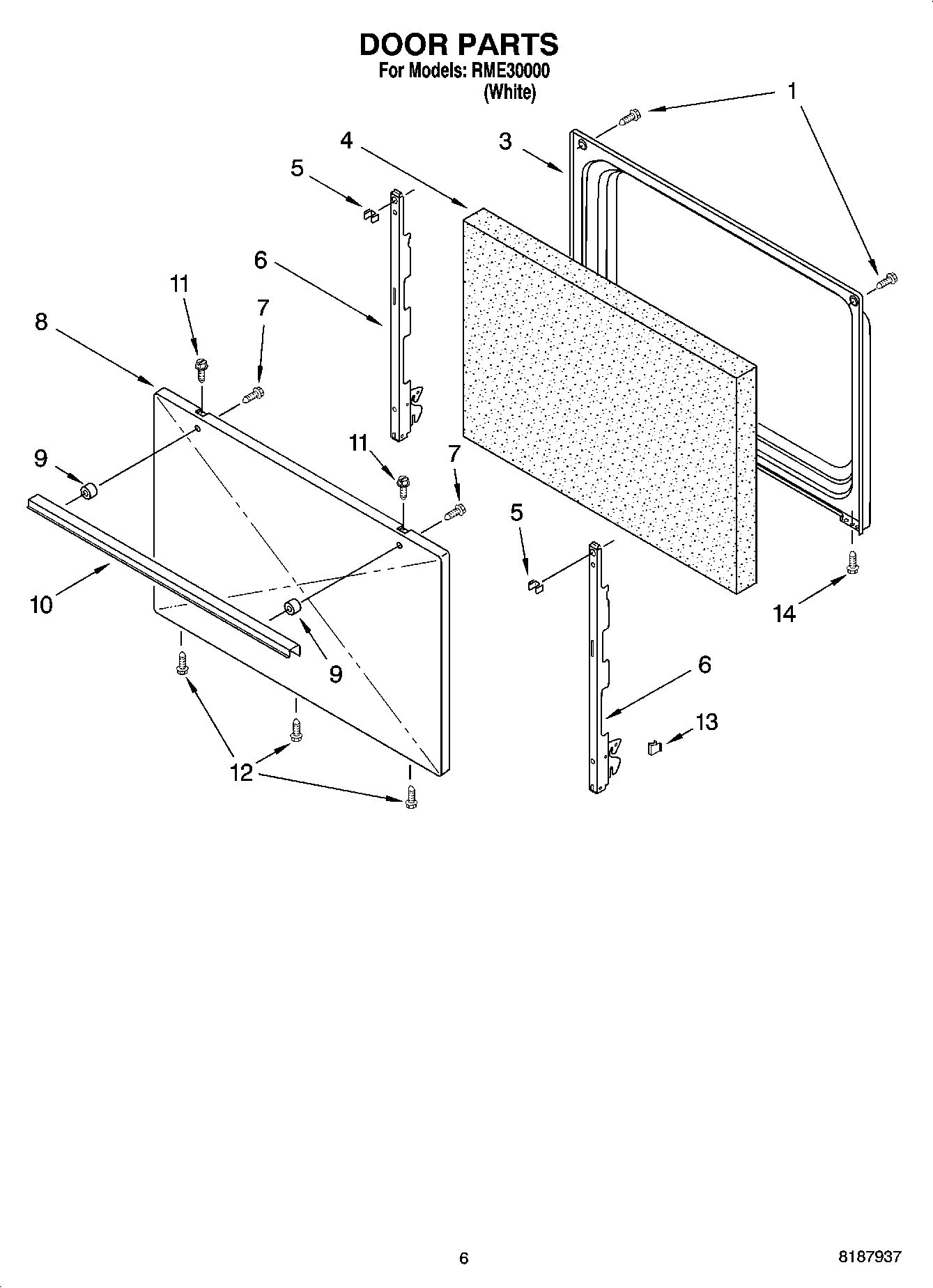

RME30000 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI123671A
	WP3196154 Whirlpool Screw Assembly
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WPL 8316781
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI123670A
	WPL ARI123669A
	WPL ARI123668A
	WPL ARI123667A
	WPL ARI123666A
	WPL ARI123665A
	WPL ARI123664A
	WPL 9756760
	WPL 9756779
	WPL 9756350
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	FOIL, ALUMINUM OVEN (18“ X 25 )
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	3400964 Whirlpool Oven Clip
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
1	Screw
3	Liner, Door
4	WPW10278991 Whirlpool Insulation
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
9	WP3196143 Whirlpool Spacer Assembly
10	WP3195263 Whirlpool Door Handle
11	3196558 Whirlpool Oven Screw
12	W10491985 Whirlpool Screw
13	WP3196925 Whirlpool Clip Assembly
14	WP3196175 Whirlpool Screw
