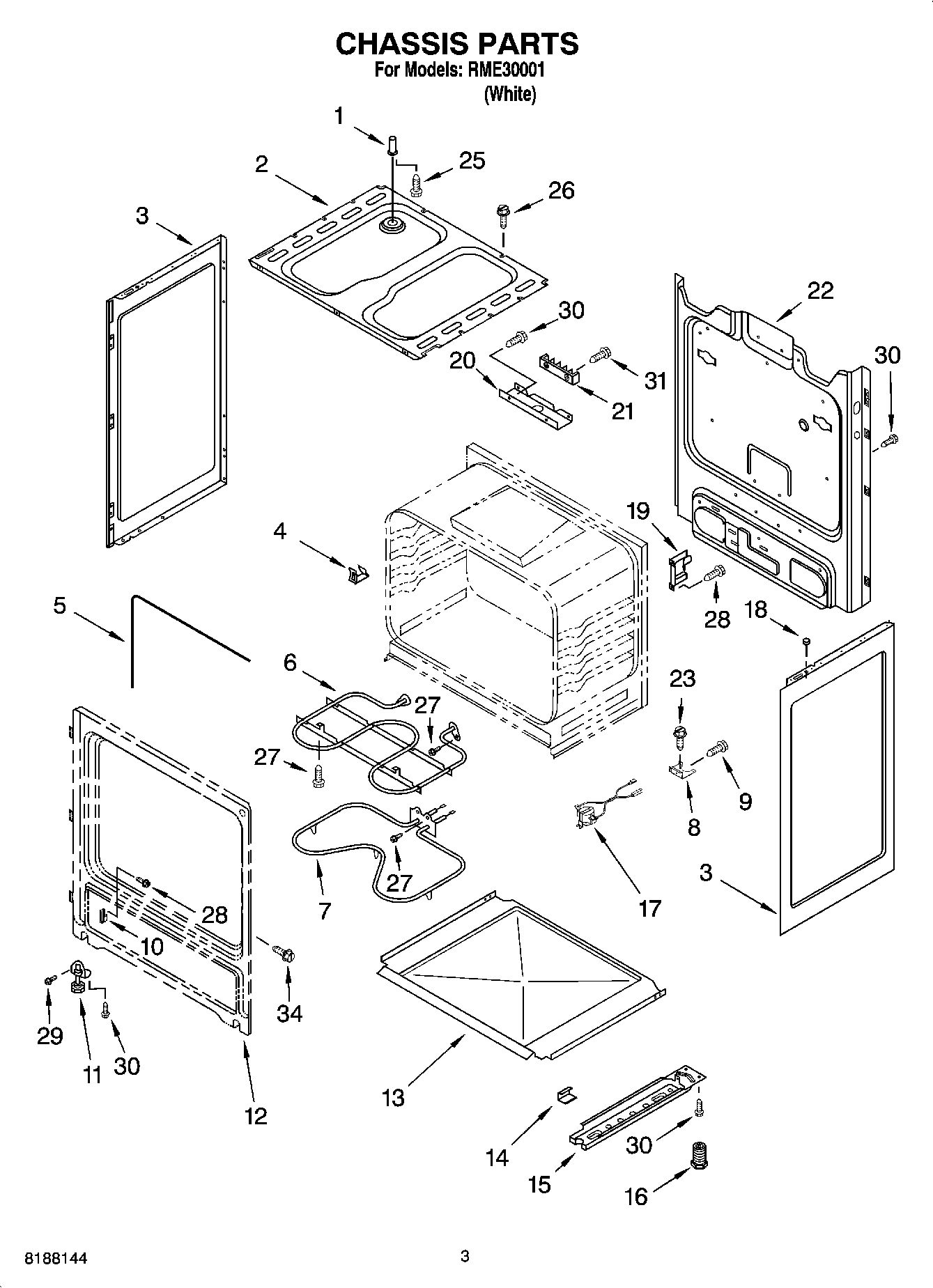

RME30001 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	98005642 Whirlpool Clip
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	Brkt, Thermostat
9	3196172 Whirlpool Oven Screw
10	WP3195546 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	9757158 Whirlpool Oven Thermostat
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
21	WP112432 Whirlpool Nut Assembly
22	Back, Main
23	WP489491 Whirlpool Refrigerator Screw
25	WP3196567 Whirlpool Screw
26	WP3400832 Whirlpool Screw
27	WP3196174 Whirlpool Screw
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
34	W11311894 Whirlpool Insulation
34	WP7101P246-60 Whirlpool Screw
34	WPW10208653 Whirlpool Insulation
34	Insulation
