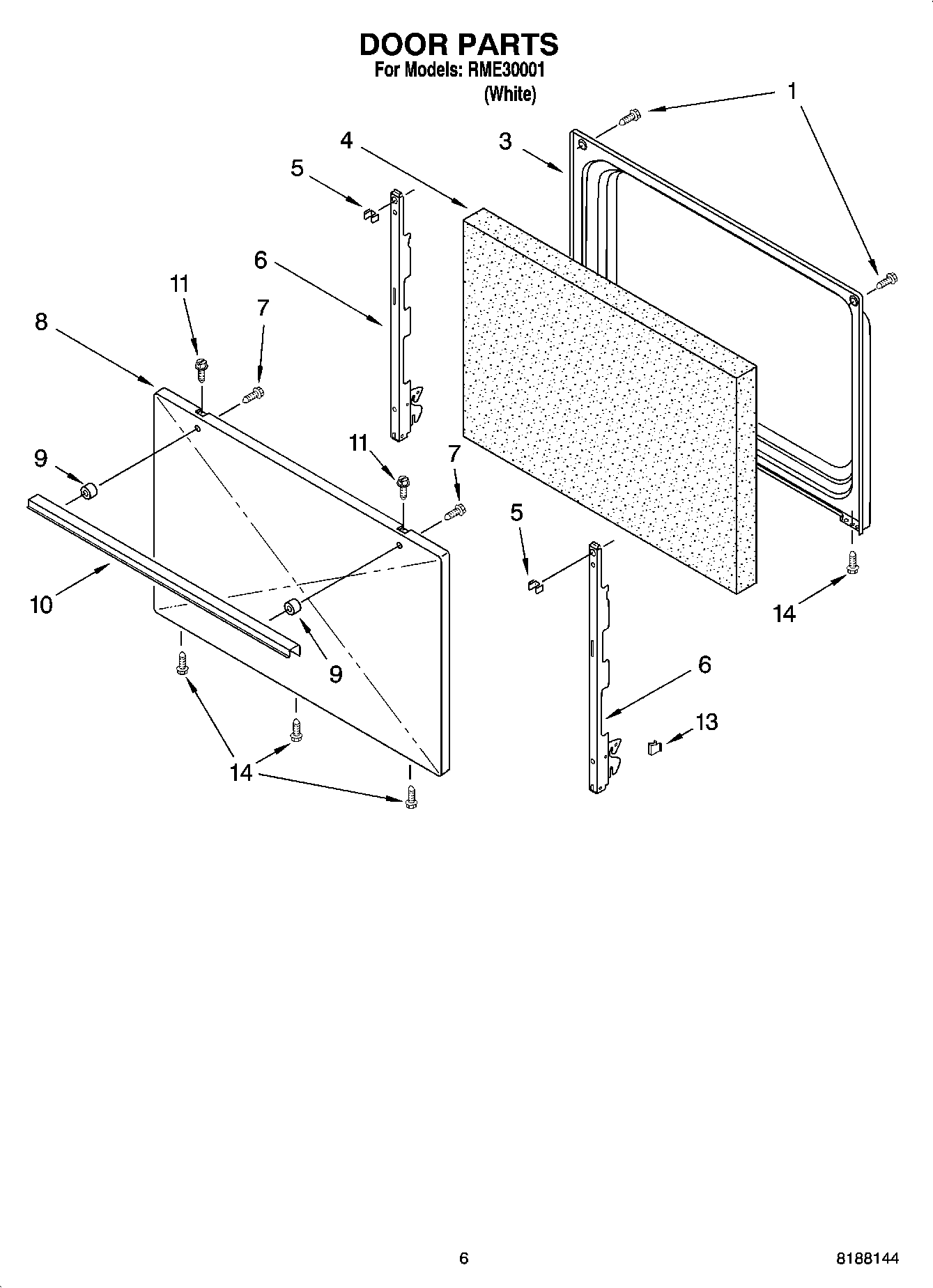

RME30001 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI162215A
	WP3196154 Whirlpool Screw Assembly
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 9756350
	WPL ARI162214A
	WPL ARI162213A
	WPL ARI162212A
	WPL ARI162211A
	WPL ARI162210A
	WPL ARI162209A
	WPL 9756760
	WPL ARI162216A
	WPL 9756779
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	3400964 Whirlpool Oven Clip
	242831 Whirlpool Oven Wire
1	Screw
3	Liner, Door
4	WPW10278991 Whirlpool Insulation
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
9	WP3196143 Whirlpool Spacer Assembly
10	WP3195263 Whirlpool Door Handle
11	3196558 Whirlpool Oven Screw
13	WP3196925 Whirlpool Clip Assembly
14	WP3196175 Whirlpool Screw
