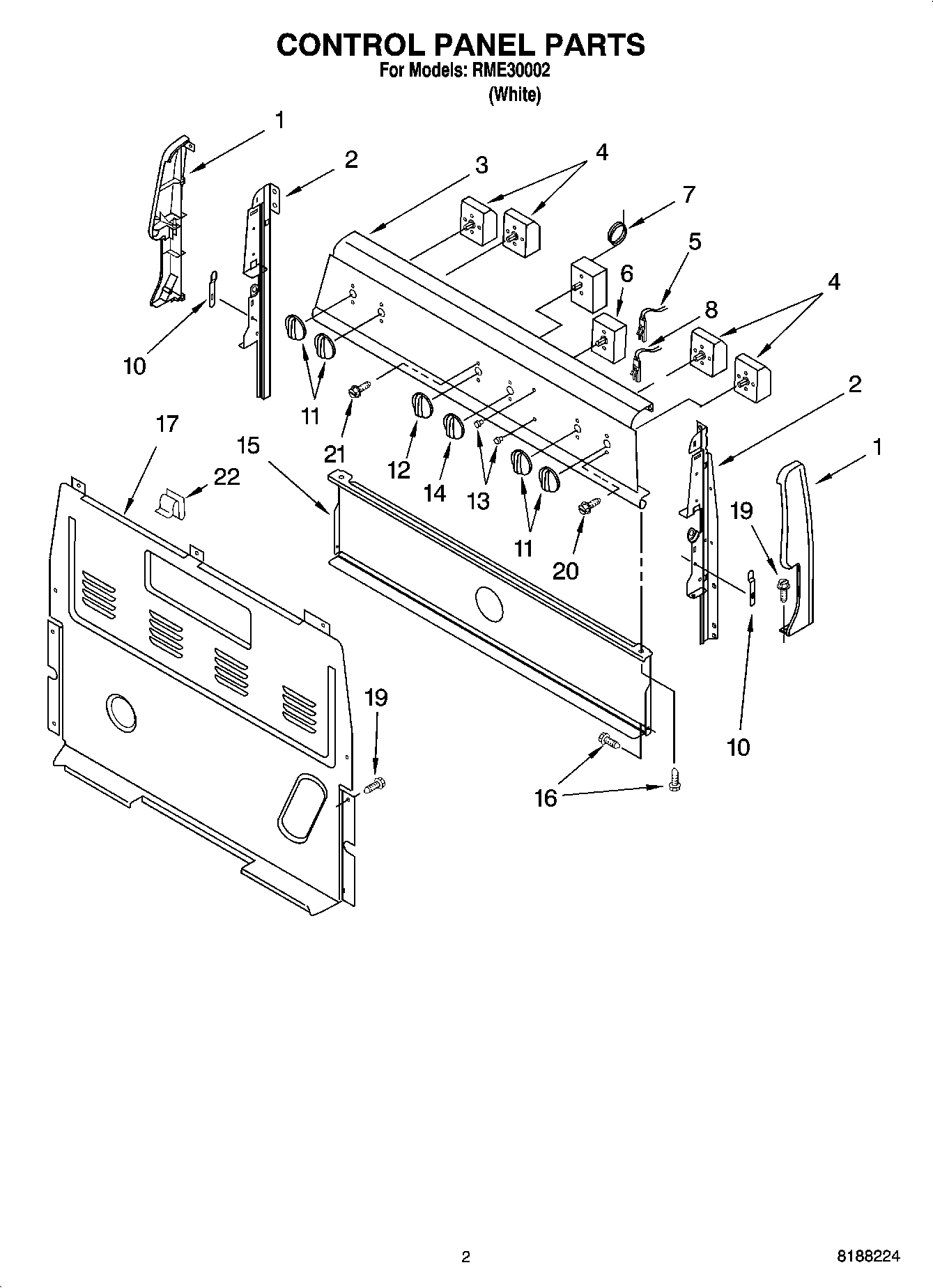

RME30002 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Console
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3188987 Whirlpool Oven Switch
7WP9762852 Whirlpool Thermostat
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196028 Whirlpool Knob
12Knob, Thermostat (White)
13WP3196068 Whirlpool Light Lens
14Knob, Selector (White)
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
19SCREW
20WP3400882 Whirlpool Screw
21WP3196170 Whirlpool Screw
22WP8273564 Whirlpool Clip
