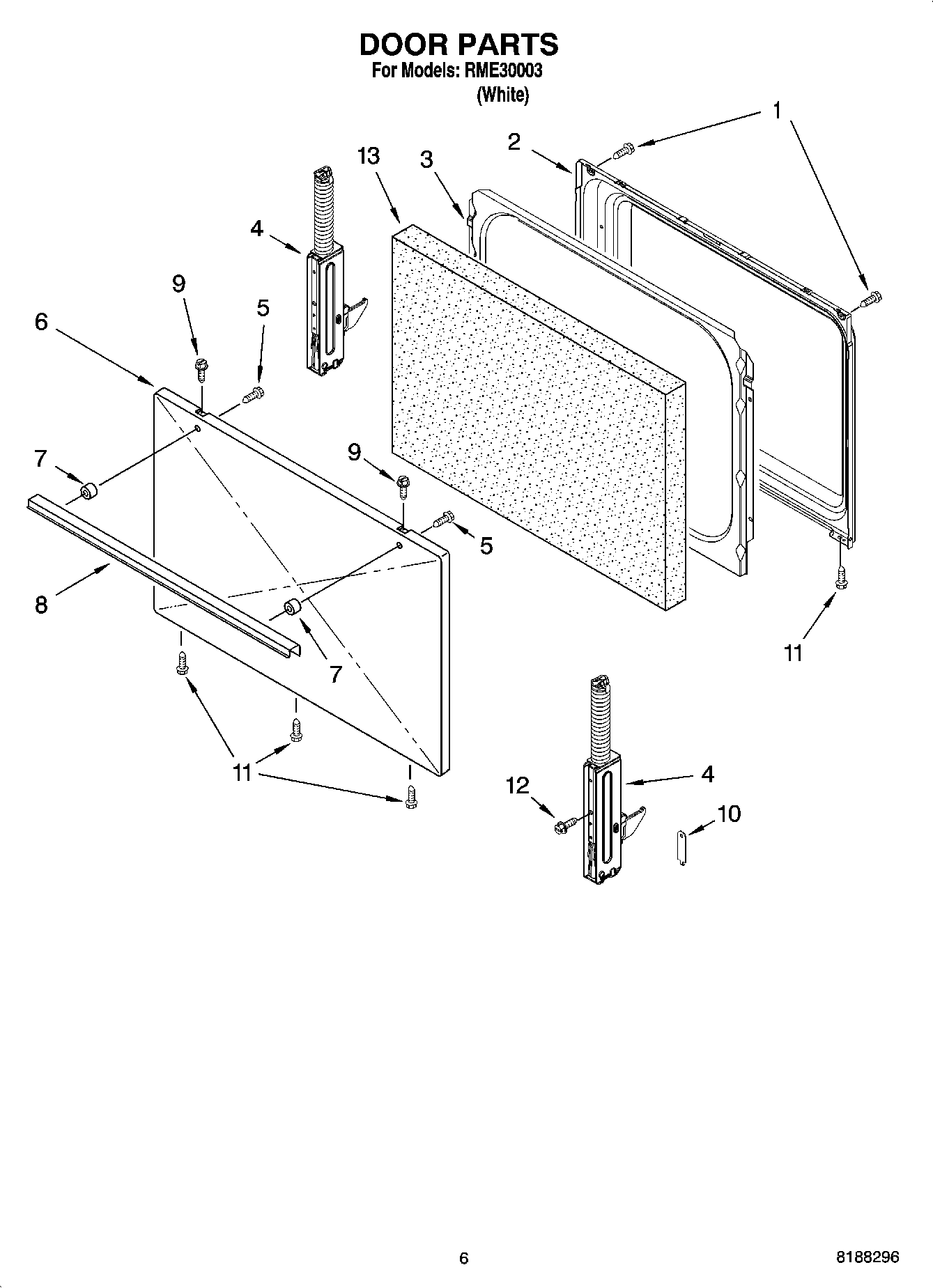

RME30003 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI162236A
	WP3196154 Whirlpool Screw Assembly
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 9756350
	WPL ARI162235A
	WPL ARI162234A
	WPL ARI162233A
	WPL ARI162232A
	WPL ARI162231A
	WPL ARI162230A
	WPL ARI162229A
	WPL 9756760
	WPL 9756779
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	Wire, 25` Roll (Red 14 Ga.)
	3400964 Whirlpool Oven Clip
	242831 Whirlpool Oven Wire
1	Screw
2	9761342 Whirlpool Oven Door Liner
3	W11699790 Whirlpool Retainer
4	W10368723 Whirlpool Door Hinge
5	WP3196163 Whirlpool Screw
6	W10903447 Whirlpool Door Panel Assembly
7	WP3196143 Whirlpool Spacer Assembly
8	WP3195263 Whirlpool Door Handle
9	3196558 Whirlpool Oven Screw
10	9761517 Whirlpool Oven Clip Assembly
11	WP3196175 Whirlpool Screw
12	WP179051 Whirlpool Screw
13	WPW10278991 Whirlpool Insulation
