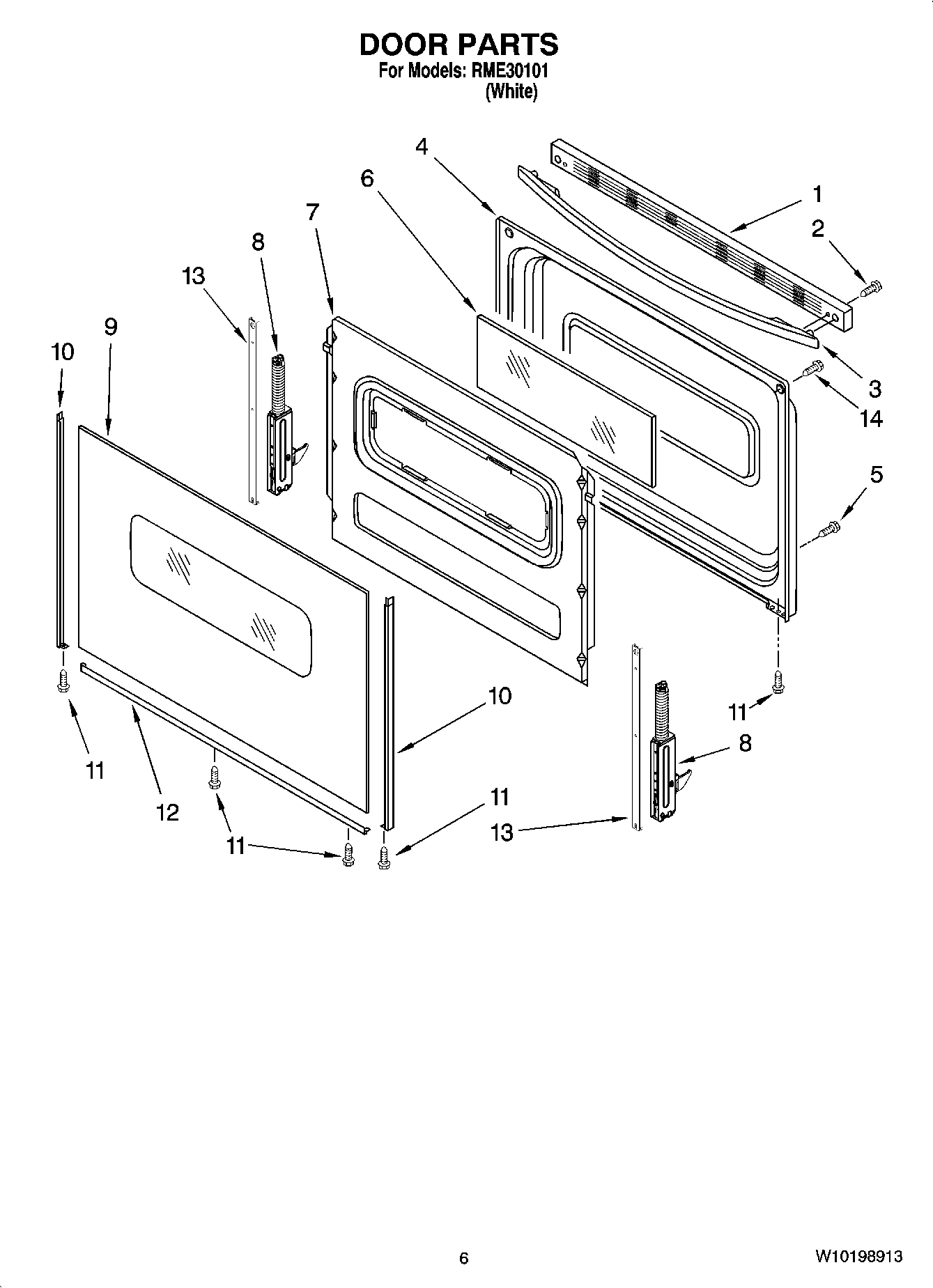

RME30101 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI162251A
	Grease
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	3184020 Whirlpool Oven Wire
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	WP3196154 Whirlpool Screw Assembly
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL ARI162250A
	WPL ARI162249A
	WPL ARI162248A
	WPL ARI162247A
	WPL ARI162246A
	WPL 9756760
	WPL ARI162252A
	WPL 9756779
	WPL 9756350
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WPL 799832
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350942 Whirlpool Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	Almond (Uncut)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WP72107 Whirlpool Touchup
	242831 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	W11447673 Whirlpool Range Tip Anchor
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
4	9761340 Whirlpool Oven Door Liner
5	WPW10031790 Whirlpool Screw
6	WP9758163 Whirlpool Door Glass Assembly
7	9761500 Whirlpool Oven Retainer
8	W10347465 Whirlpool Door Hinge
9	WP9762476 Whirlpool Door Glass
10	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
11	WP3196175 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
13	W11502236 Whirlpool Door Trim
14	W10777162 Whirlpool Screw
