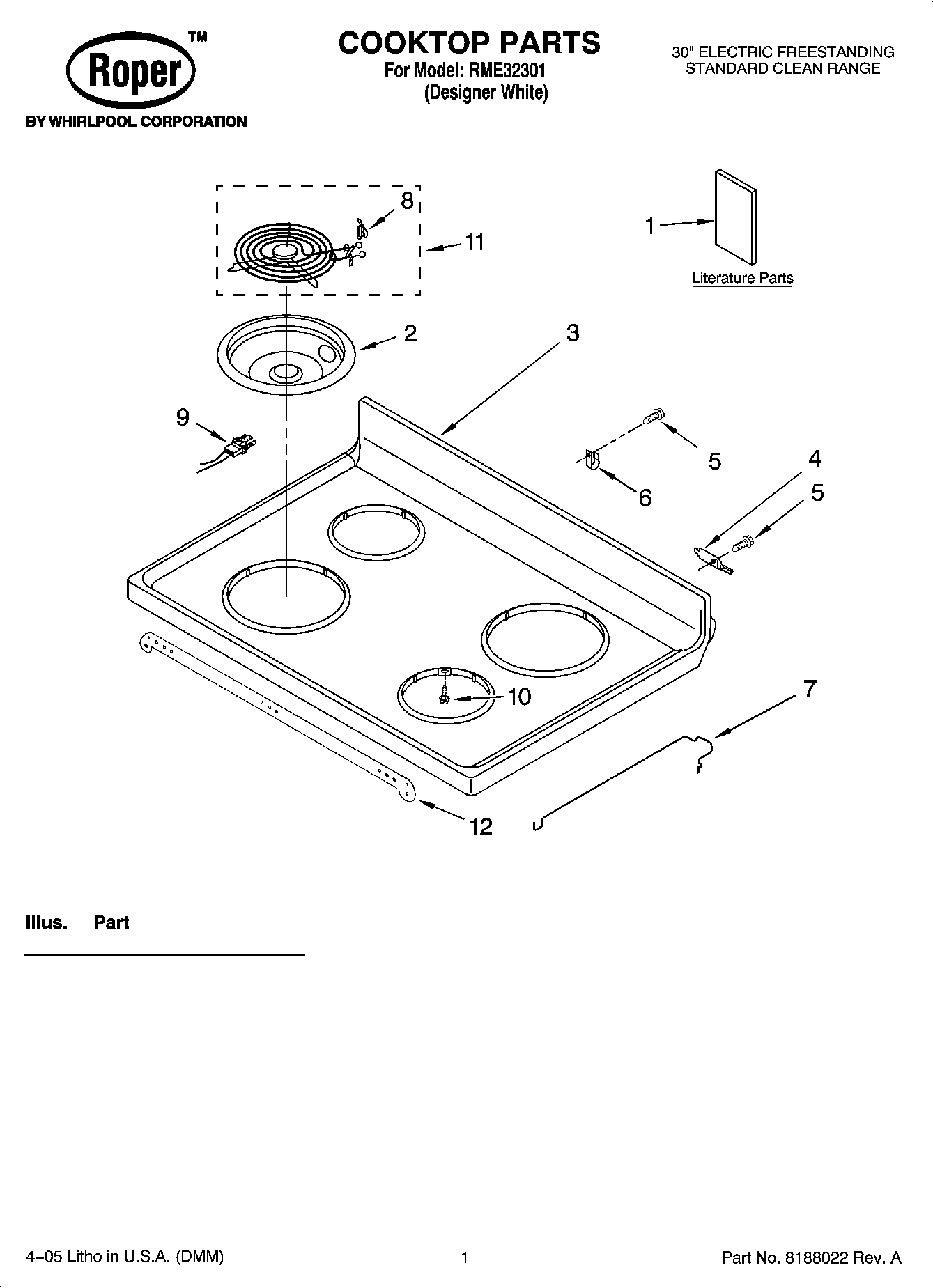

RME32301 01 – COOKTOP PARTS

RME32301 01 – COOKTOP PARTS

Written by

in

RME32301 01 – COOKTOP PARTS

Products

PositionProduct
1Owner`s Manual
1Sheet, Tech
1English/French
1Installation Instructions Template, Anti-Tip
1English/Spanish
2WPW10290350 Whirlpool Stove Drip Bowl
2WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10345407 Whirlpool Surface Element
11WP9761346 Whirlpool Stove Surface Burner Element
12Guard, Wire
