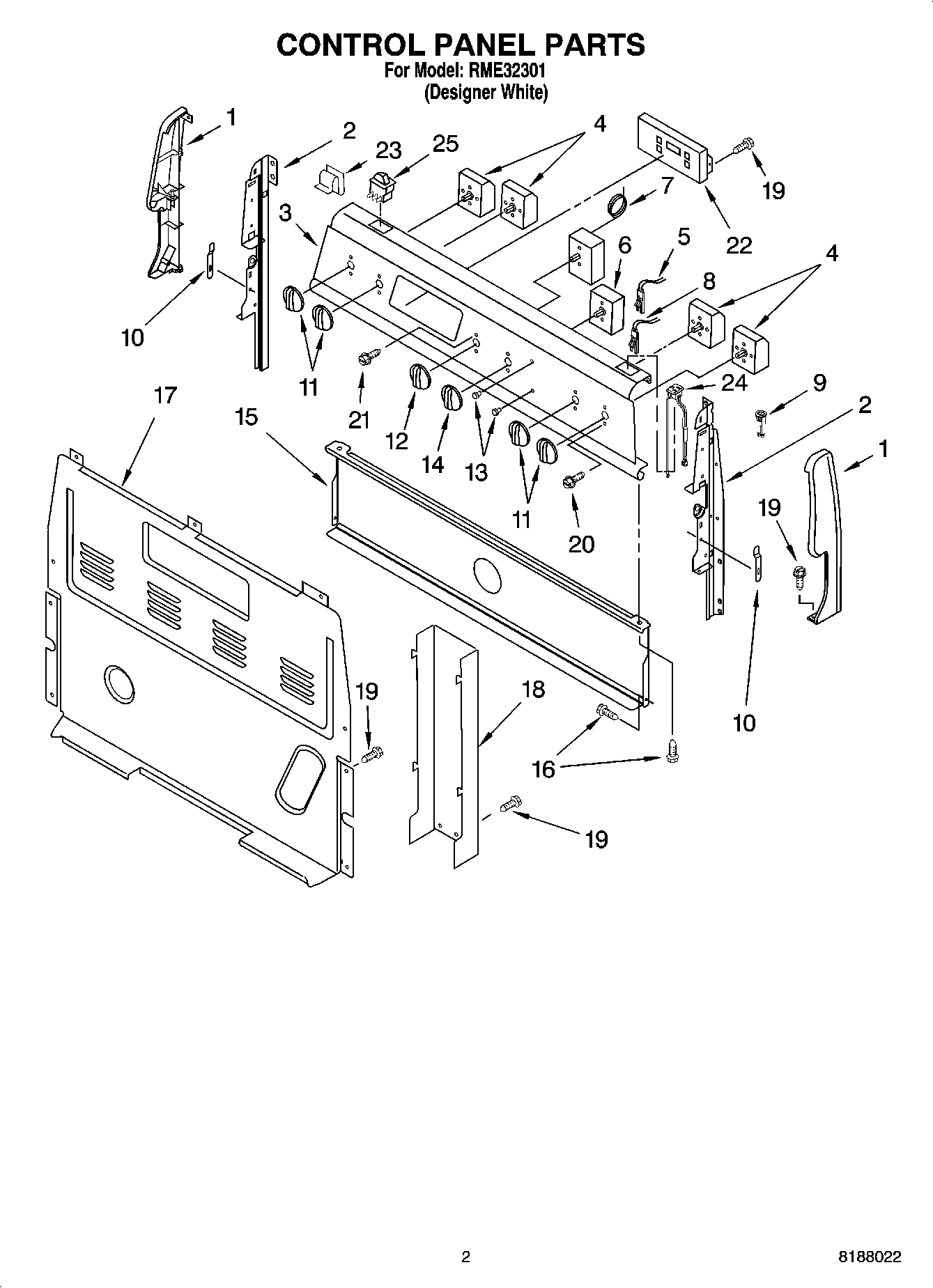

RME32301 02 – CONTROL PANEL PARTS

RME32301 02 – CONTROL PANEL PARTS

Written by

in

RME32301 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3188987 Whirlpool Oven Switch
7WP9762852 Whirlpool Thermostat
8Light, Indicator (250V)
9WP9757601 Whirlpool Breaker
103196200 Whirlpool Clip
11WP3196028 Whirlpool Knob
12Knob, Thermostat (White)
13WP3196068 Whirlpool Light Lens
14Knob, Selector (White)
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
19SCREW
20WP3400882 Whirlpool Screw
21WP3196170 Whirlpool Screw
22Control, Range (White)
23WP8273564 Whirlpool Clip
24Receptacle (2)
253149360 Whirlpool Light Switch
