RMT-360 06 – TOP AND BURNER ASSY – Aparts

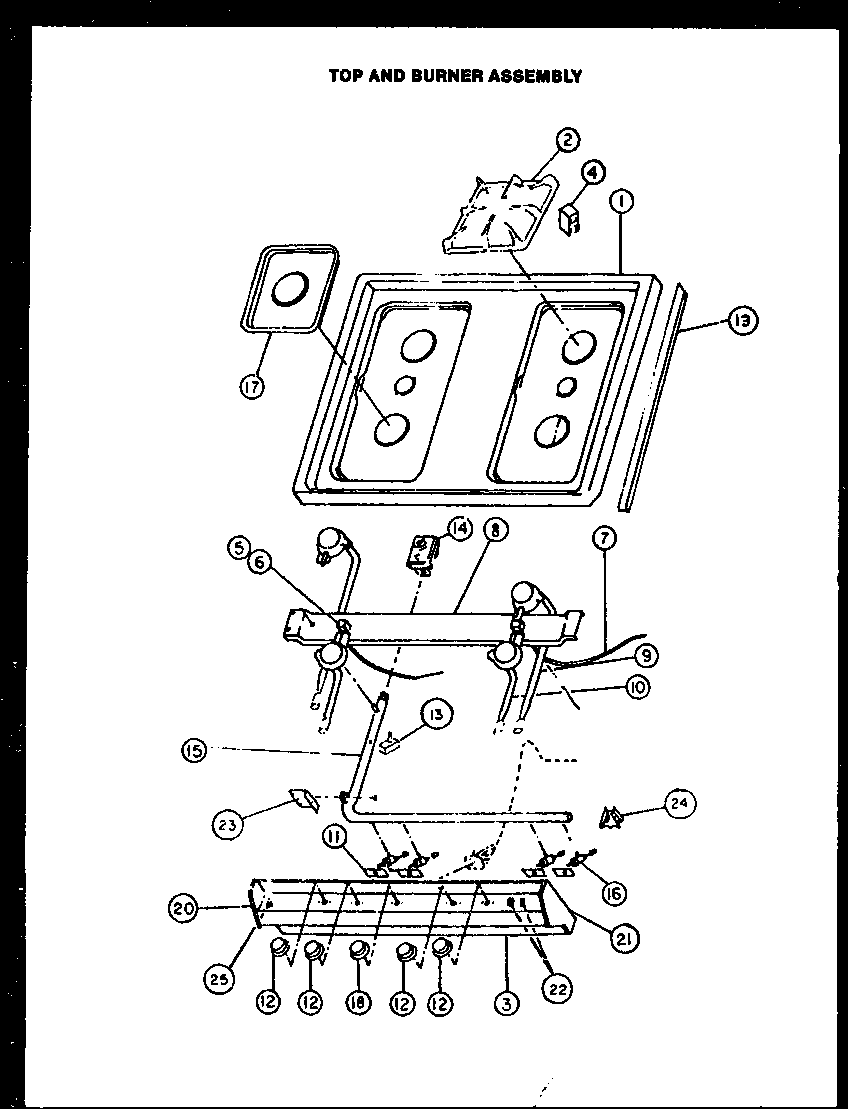

RMT-360 06 – TOP AND BURNER ASSY

Products

Position	Product
1	MAY 310082W
1	MAY 310082L
1	MAY 310082H
2	MAY 60529
3	MAY 0311850
4	MAY Y0311627
5	SEE NOTE GROUND WIRE, GREEN
6	MAY Y0311843
7	MAY Y0311842
8	MAY Y0086719
9	MAY Y0086715
10	MAY Y0086716
11	MAY Y0088874
12	MAY 0311829
13	MAY Y0088570
14	MAY Y63684
15	MAY 0311832
16	MAY 0311835
17	WPY0060872 Whirlpool Drip Pan
18	MAY Y0311830
20	MAY Y0311833
21	MAY Y0311834
22	MAY Y0310167
23	MAY Y0311811
24	MAY 0311810
